Details

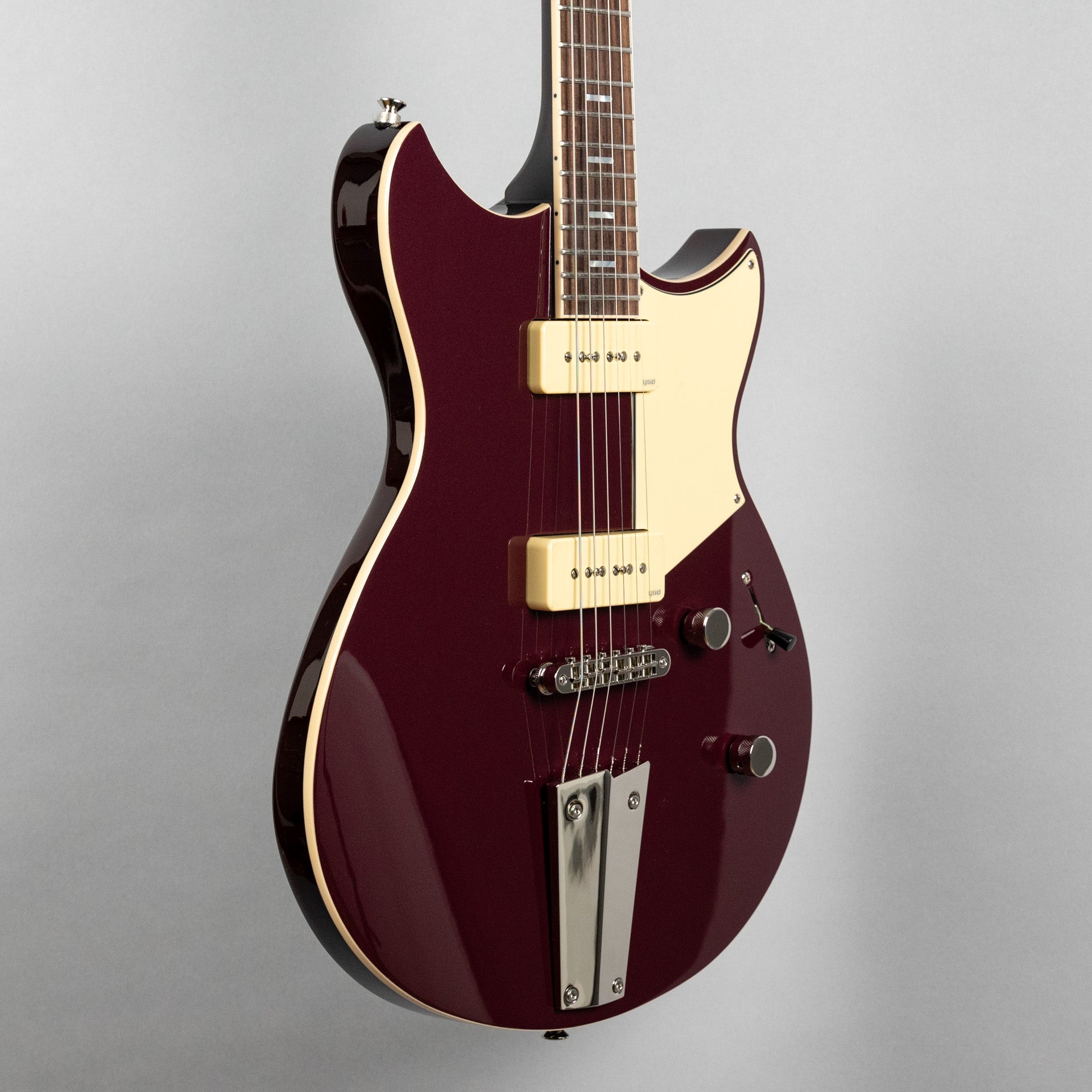

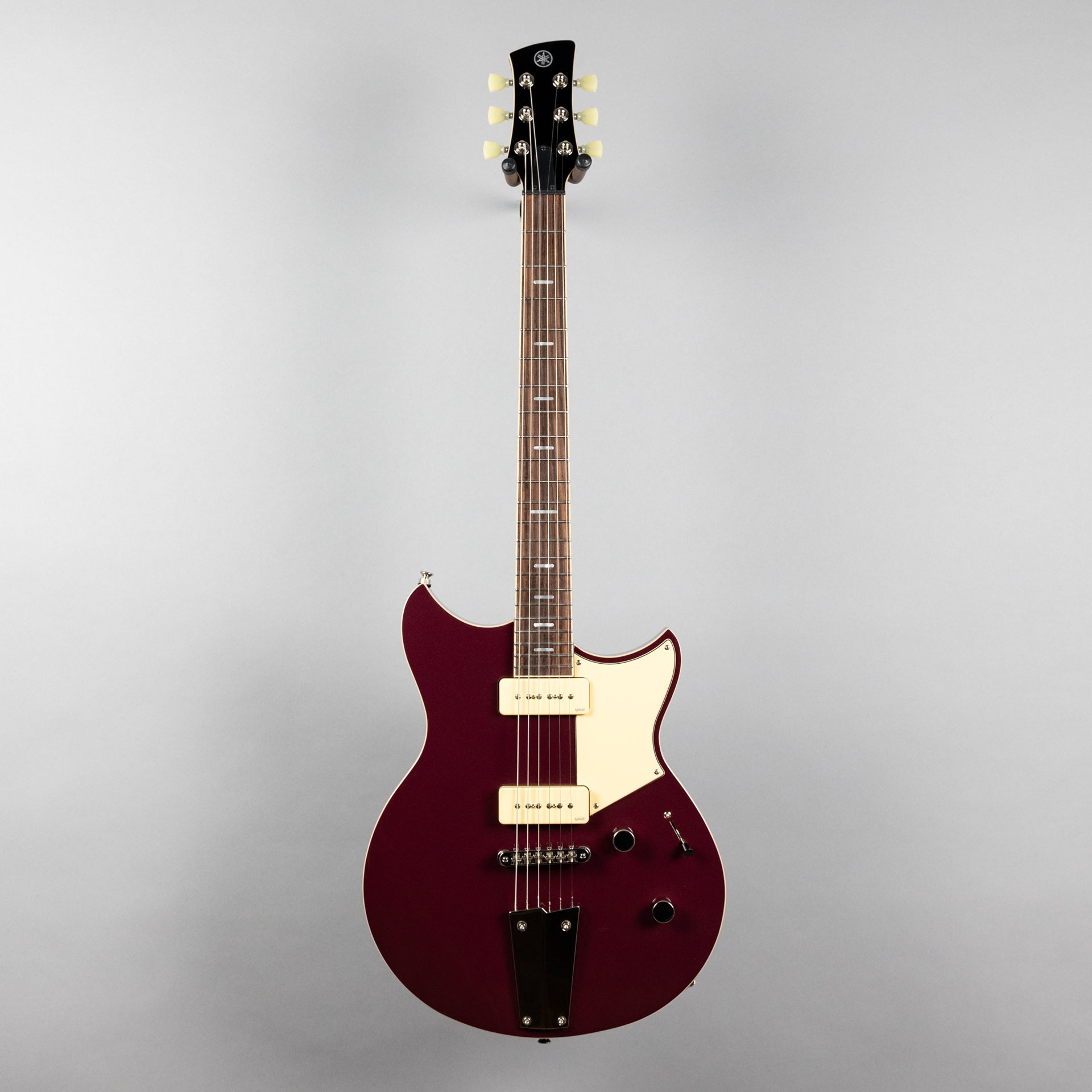

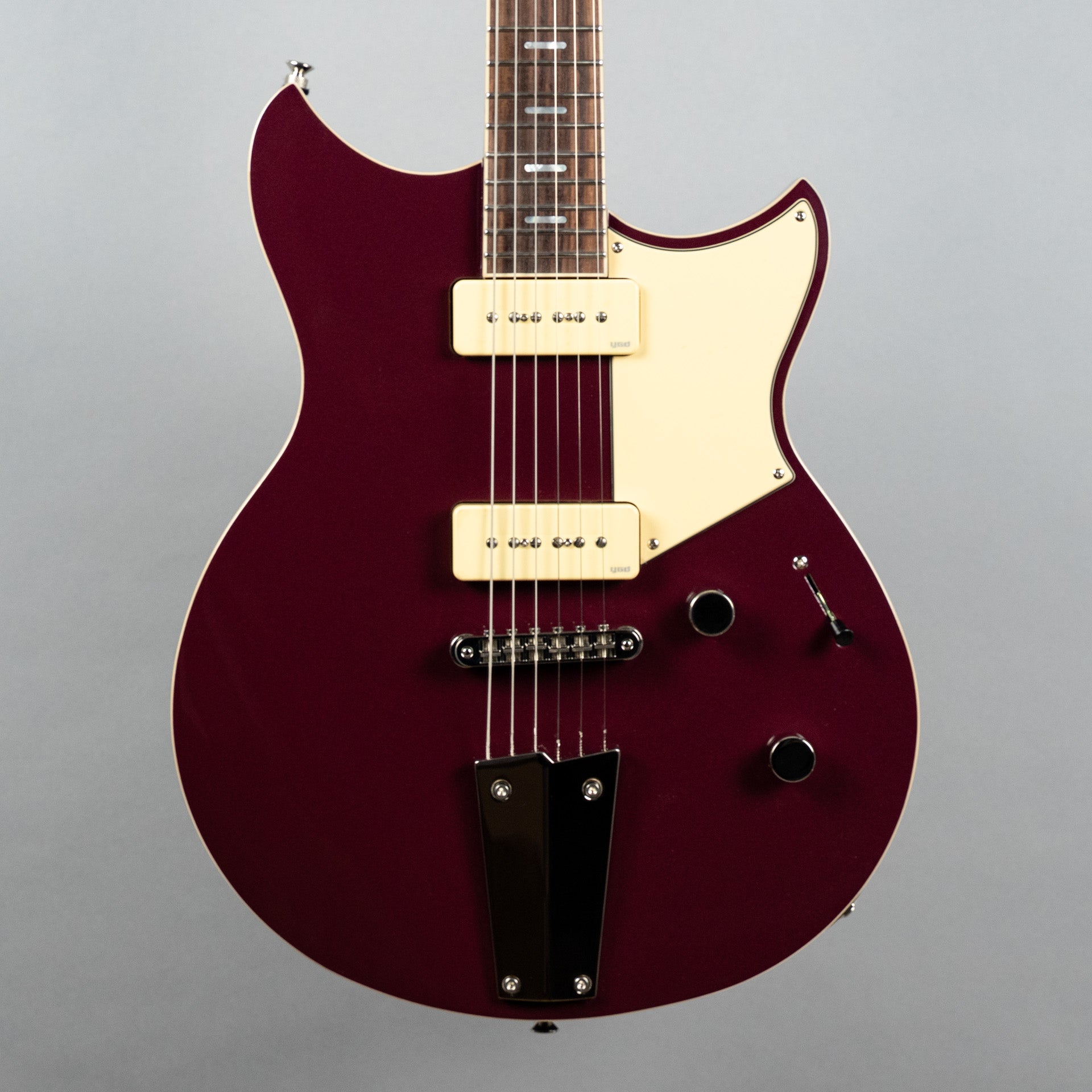

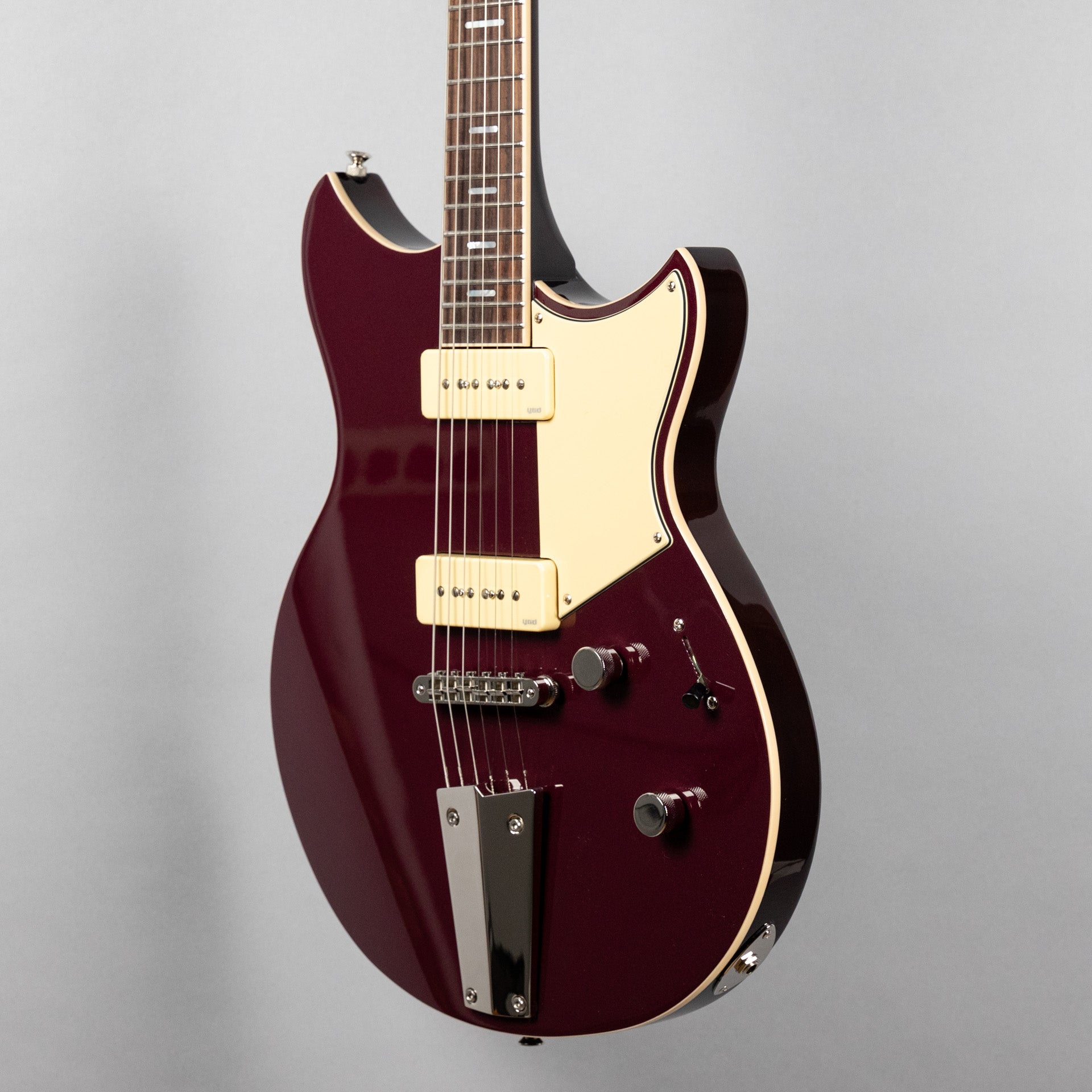

This Revstar Standard features P90-style single-coil pickups with 5-way switching and the Focus Switch boost, with a custom racing tailpiece.

FEATURES

• Chambered maple and mahogany body
• Carbon-reinforced 3-piece mahogany neck
• 2 P90-style pickups
• 5-Position pickup selector
• Passive Focus Switch

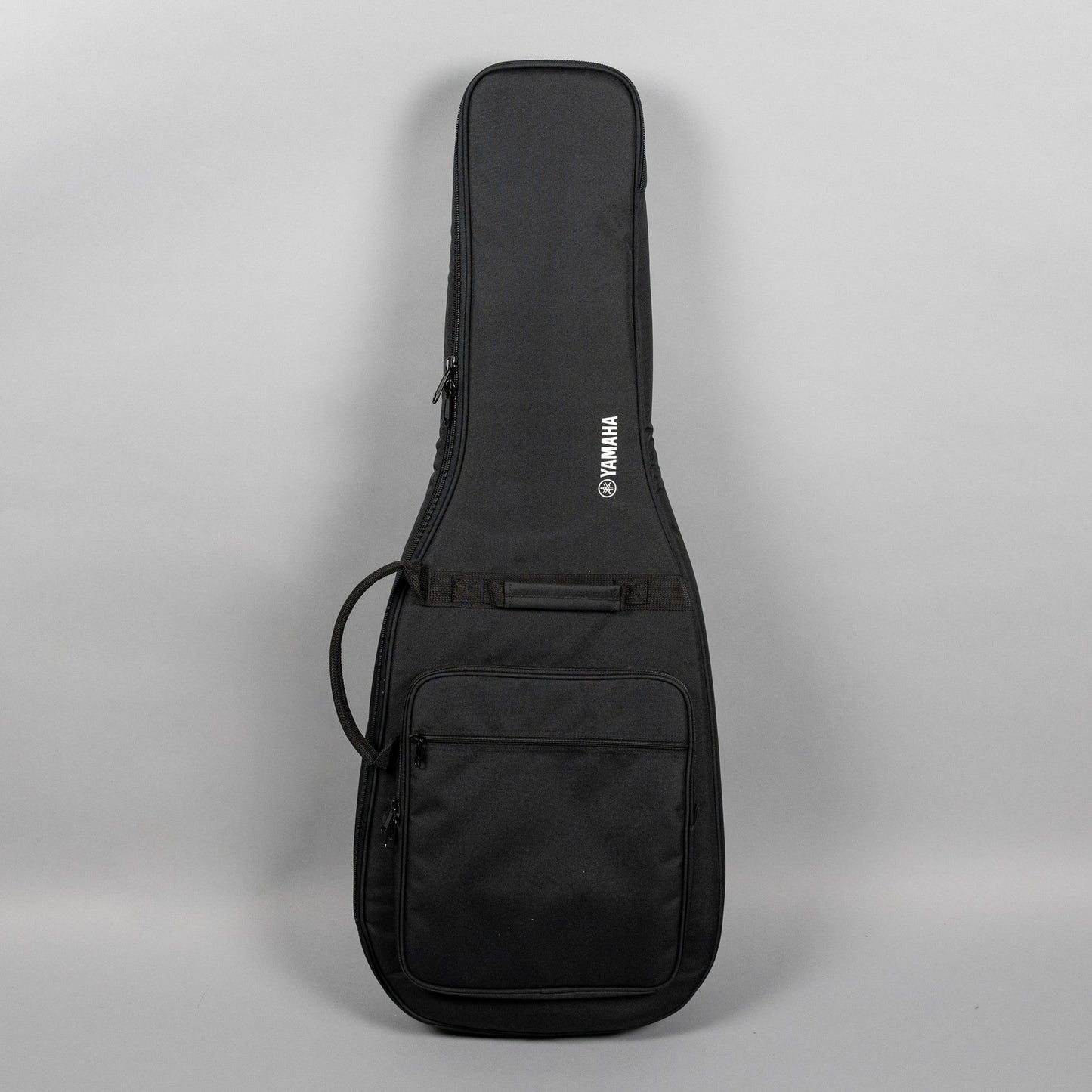

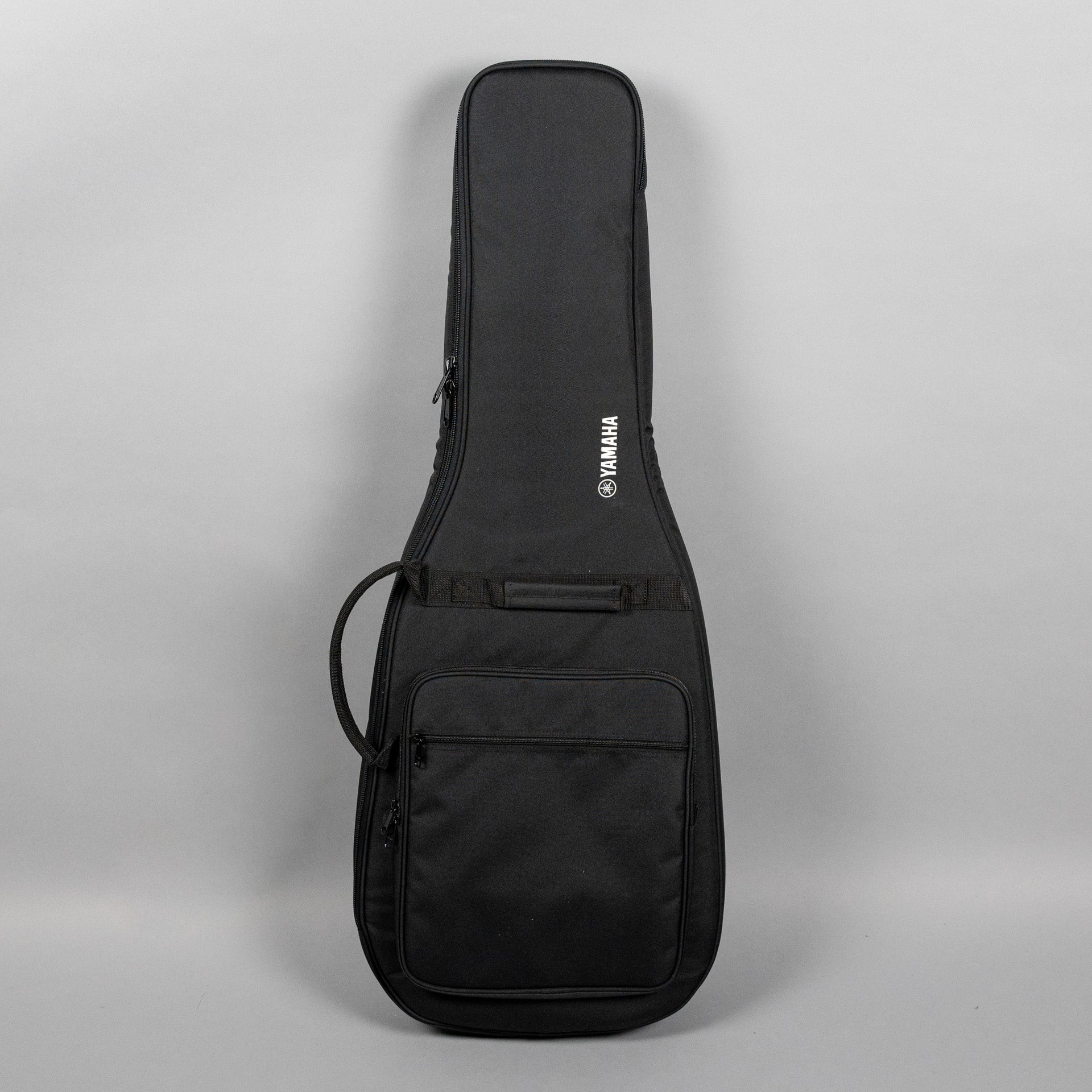

• Deluxe Gig Bag included

Wood grain may vary slightly from product photos shown.

CHAMBERED BODY WITH ACOUSTIC DESIGN
Revstar Standard guitars feature chambered bodies designed to sculpt tone and reduce weight, with carbon reinforcement in the neck to improve vibration transfer.

5-WAY SWITCHING
With the same 5-way switching as Revstar Professional, the subtle phase shift on positions 2 and 4 offers a fresh take on classic "in-between" sounds.

FOCUS SWITCH
The push/pull Tone control activates a passive boost with an effect similar to overwound pickups - darker highs, increased mids and lows, and an aggressive character.

SPECIFICATIONS

• Construction: Set-in
• Scale Length: 24-3/4” (628.6mm)

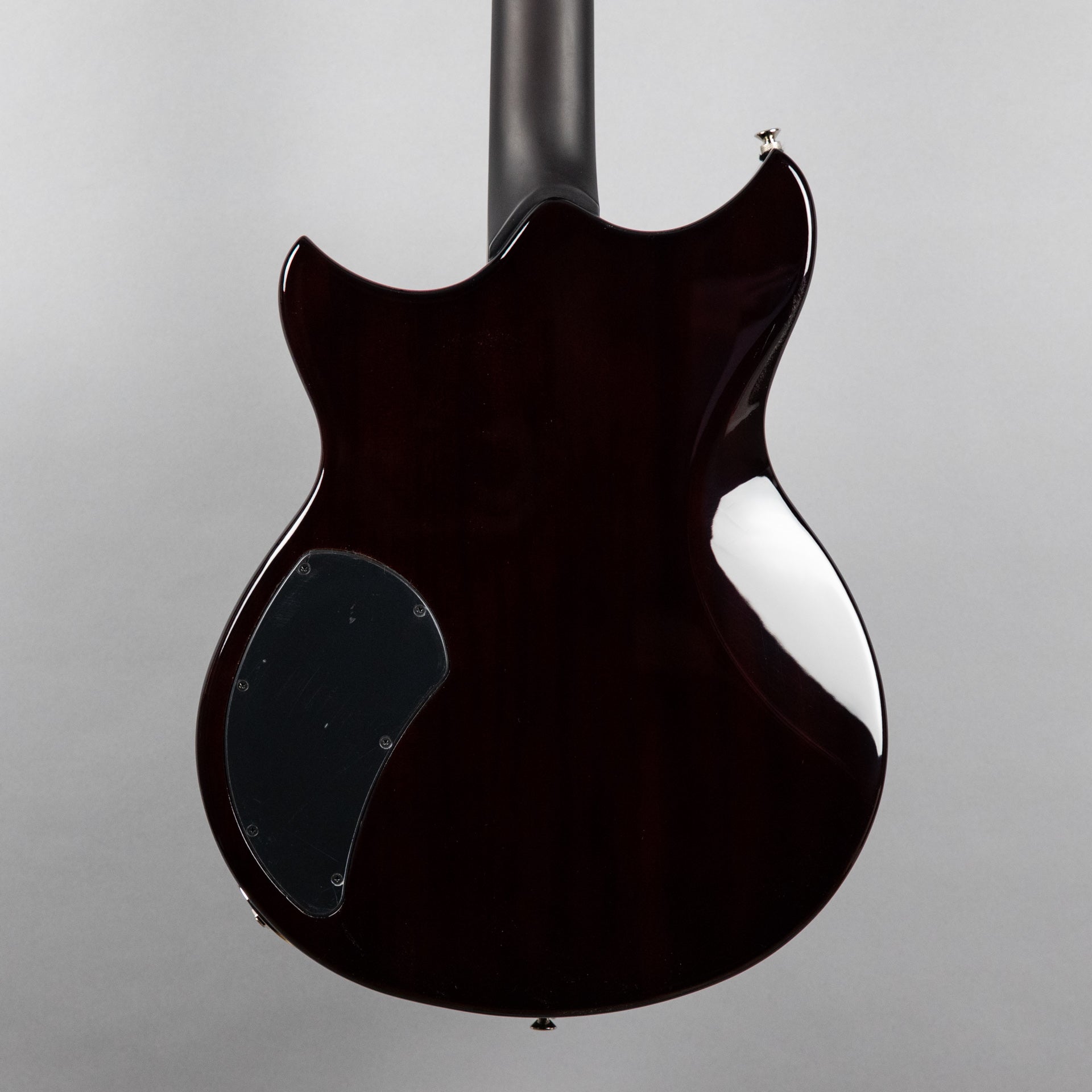

• Body Materials: Top: Maple / Back: Chambered Mahogany
• Body Finish: Gloss Polyurethane
• Neck Materials: 3-Piece Mahogany, Carbon Reinforced
• Neck Finish: Satin Polyurethane

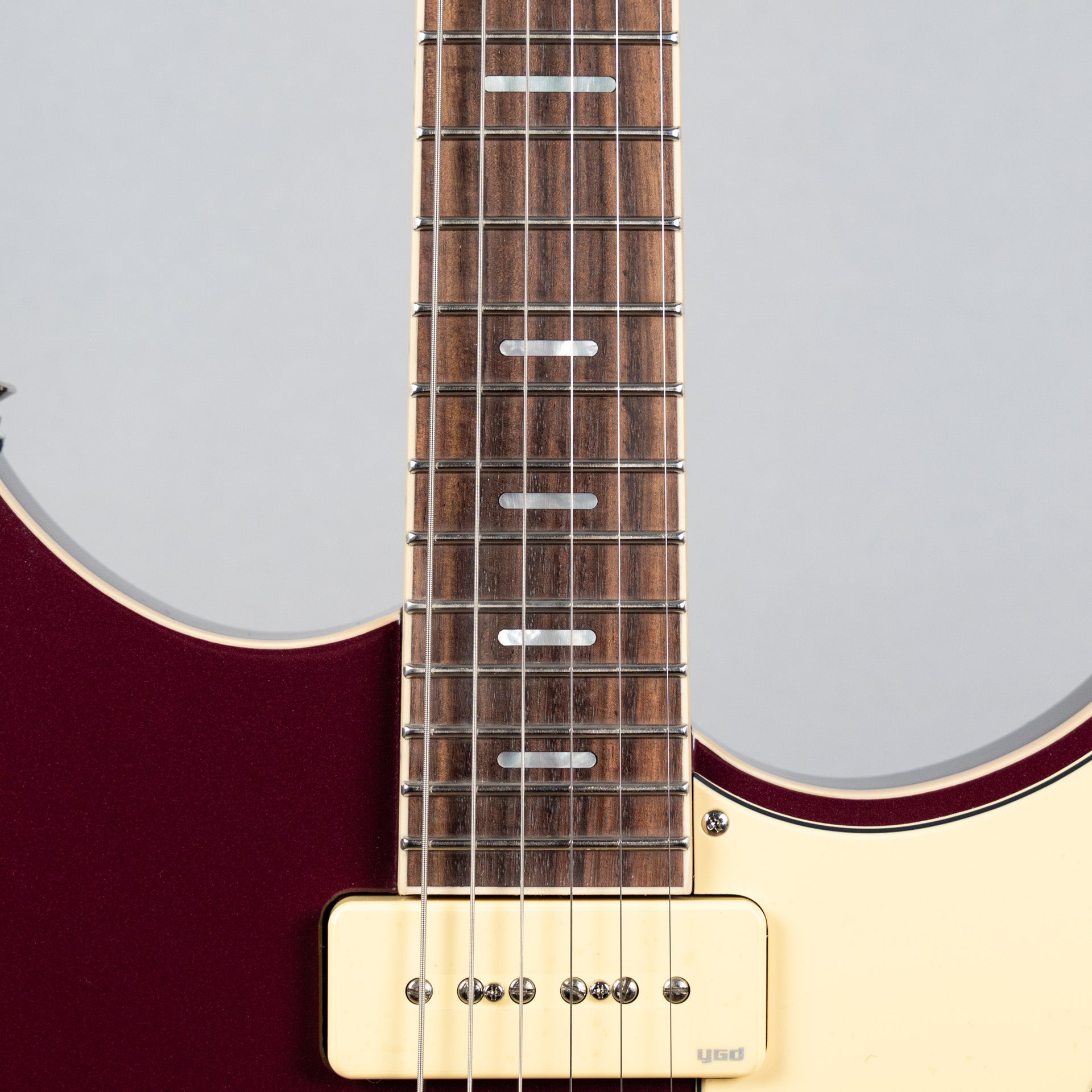

• Fingerboard Materials: Rosewood
• Fingerboard Radius: 12" (304.8mm)
• Fret Wire: Jumbo Stainless Steel
• Number of Frets: 22
• Nut Materials: PPS
• Neck with at 0 Fret / 12th Fret: 41.9 / 52.0 mm
• Thickness at 1st Fret / 12th Fret: 21.0 / 23.9 mm
• Neck Pickup: VP5n: P90 type Single coil / Alnico V
• Bridge Pickup: VP5b: P90 type Single coil / Alnico V
• Controls: Master Volume, Master Tone (Push-Pull "Focus Switch")
• Pickup Switch: 5-Position Lever Switch
• Bridge: Tune-O-Matic
• String Spacing: 10.5mm
• Tailpiece: Racing Tailpiece

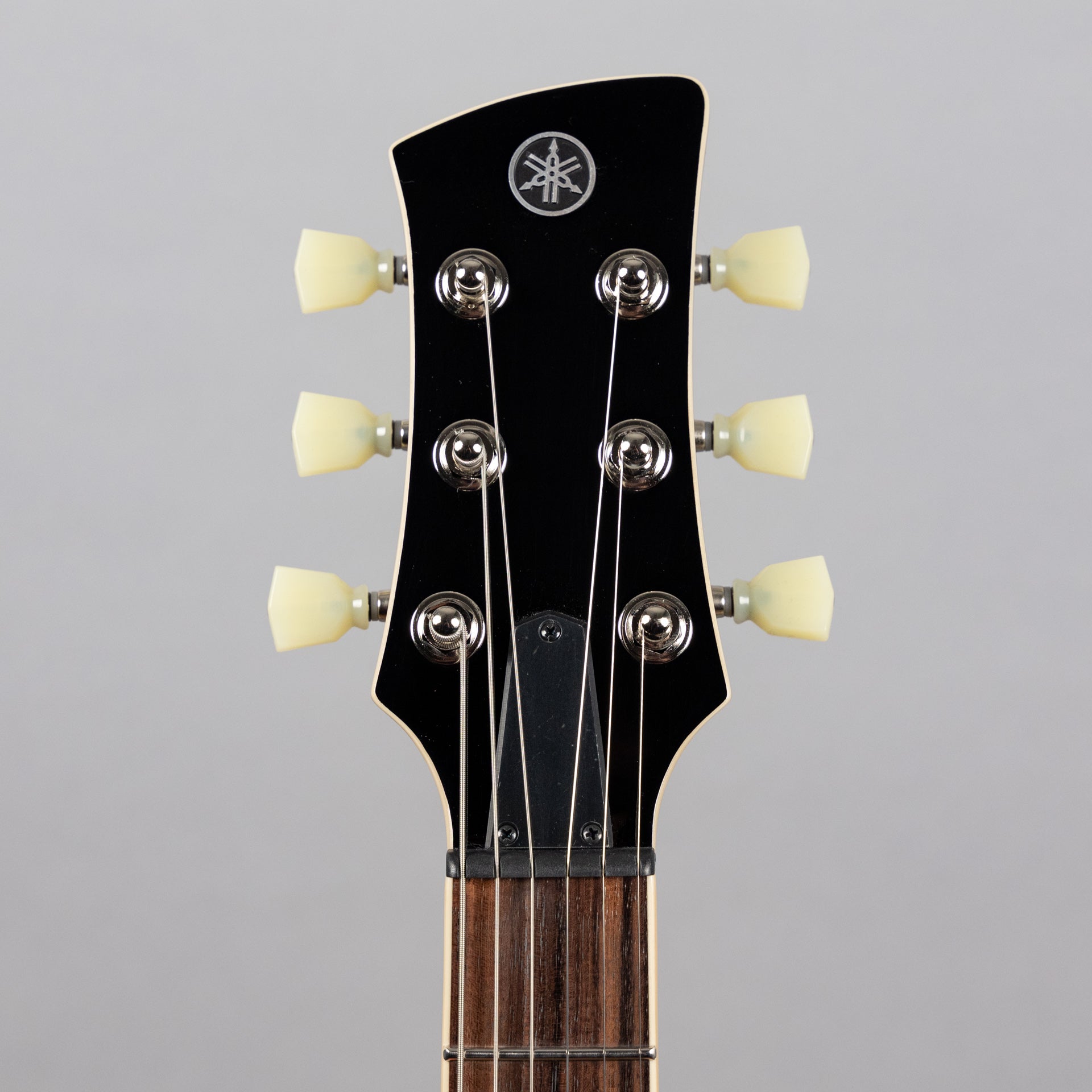

• Tuning Machines: Die-Cast
• Pickguard: 3-Ply Cream
• String Gauge: 0.010-0.046
• Case: Gig Bag
