Details

CSF-TA TransAcoustic parlor guitars transport you to new, creative spaces with immersive reverb and lush chorus effects without the need for an amp or other external gear.

• Compact Body

• Solid Spruce Top

• Mahogany Back and Sides

• On-Board Reverb and Chorus Effects

• Durable Hard Bag Included


Wood grain may vary from product photos shown.

Actuator
An actuator installed on the inner surface of the guitar back vibrates in response to the vibrations of the strings. The vibrations of the actuator are then conveyed to the body of the guitar and to the air in and around the guitar body, generating authentic reverb and chorus sounds from inside the body.

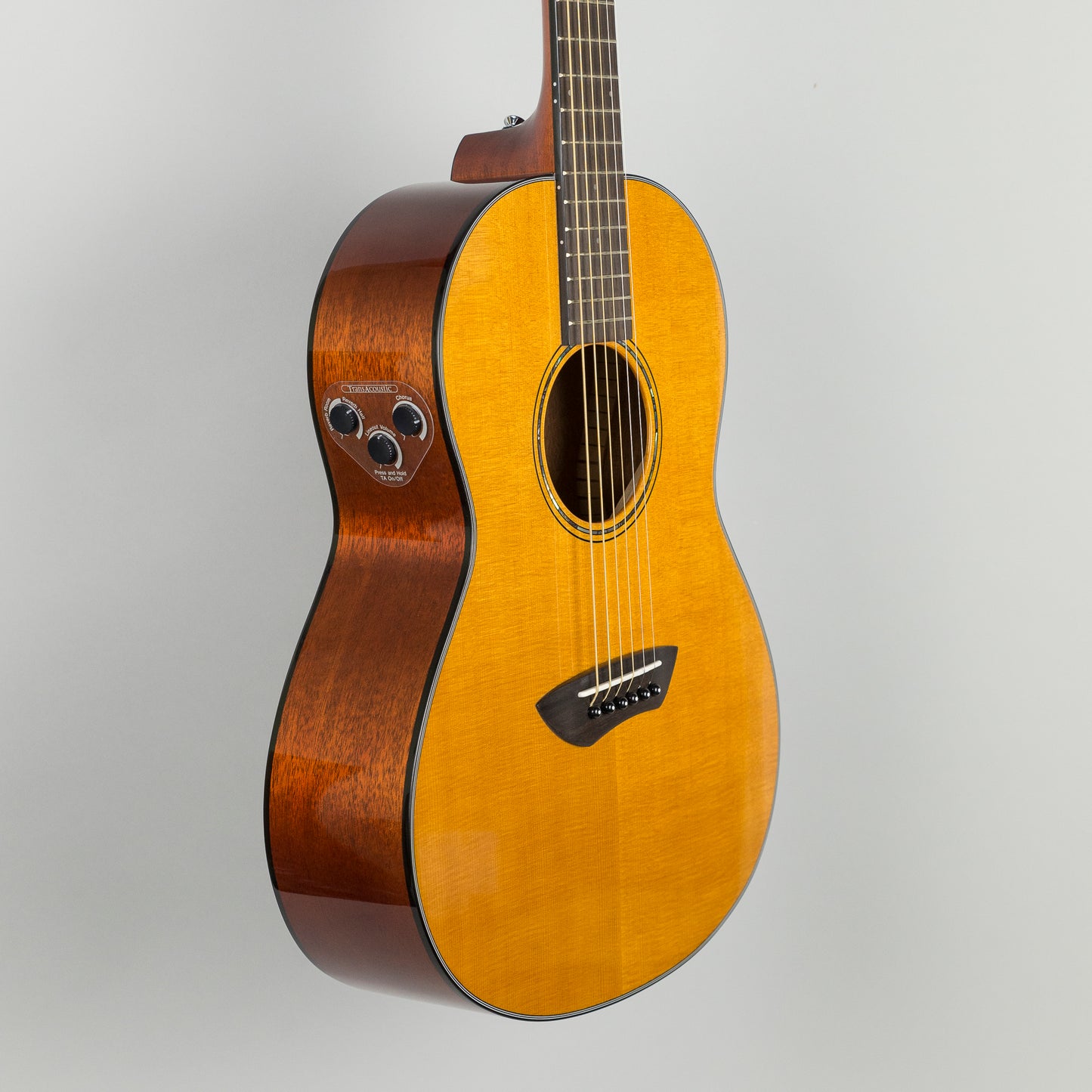

Simple Controls
Three simple knobs let you adjust the amount of effects and the line out volume level. Keeping the controls small minimizes the area of the holes in the body material, which reduces acoustic sound loss.

(A) Chorus Control

(B) Reverb Control (Room/Hall)

(C) TA Switch/Line Out Volume Control

* Pressing the TA Switch for longer than 0.3 seconds activates the TA function.

* When a cable is connected to the line out jack, the line out volume can be adjusted by rotating knob (C).

* The reverb type switches from Room to Hall around the 12:00 position.

Scalloped Bracing
The CSF Series utilizes scalloped bracing that delivers rich, full body resonance. The use of forward-shifted construction maintains the strength of the body while maximizing the vibration of the guitar's top.

Battery Box
The battery box is integrated into the end-pin jack, which requires fewer holes in the body, thus reducing acoustic sound loss. Connect the cable from the jack to a PA or amp to use as an acoustic-electric guitar.

SPECIFICATIONS

• Body Shape: CSF

• Scale Length: 600 mm (23 5/8”)

• Body Length: 450 mm (17 3/4")

• Total Length: 940 mm (37")

• Body Width: 340 mm (13 7/16")

• Body Depth: 85-105 mm (3 3/8-4")

• Nut Width: 43 mm (1 11/16")

• String Spacing: 11 mm

• Top Material: Solid Sitka Spruce

• Back Material: Mahogany

• Side Material: Mahogany

• Neck Material: Nato

• Fingerboard Material: Rosewood

• Fingerboard Radius: R400 mm (16")

• Bridge Material: Rosewood

• Nut Material: Urea

• Saddle Material: Urea

• Bridge Pins: Black ABS with White Dot

• Tuners: Die-Cast Chrome

• Body Binding: Black + White

• Soundhole Inlay: Abalone + Black

• Pickguard: None

• Body Finish: Gloss

• Neck Finish: Matte

• Electronics: SYSTEM70 TransAcoustic

• Controls: Reverb/Chorus/Line Out Vol (TA On/Off)

• Connections: LINE OUT

• Strings: Elixir NANOWEB 80/20 Bronze Light

• Accessories: Hex Wrench, 2 x AA Batteries


Durable Hard Bag guitar case included
