Details

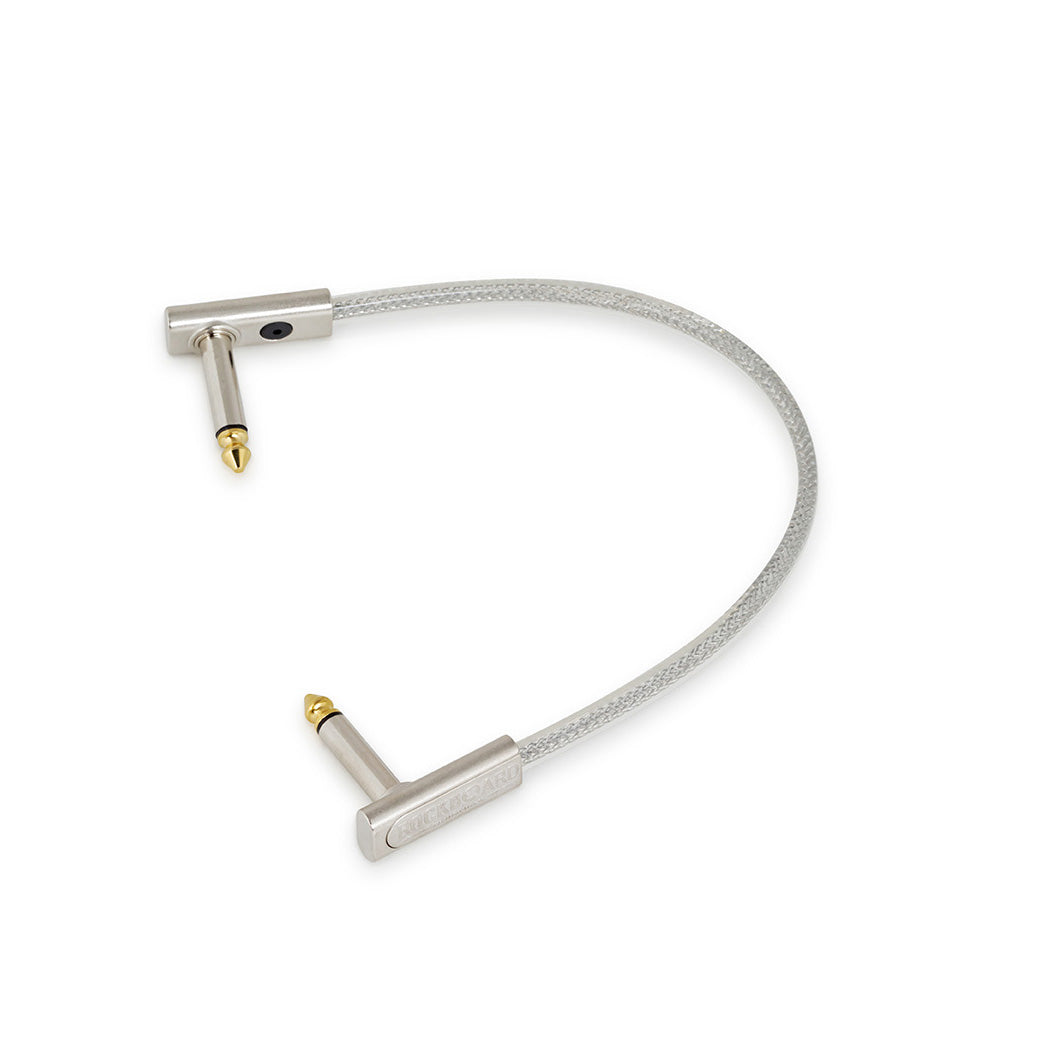

Even the best can get better! That is why RockBoard never stops striving for perfection and has developed a flat patch cable that is even better than their popular GOLD series. Audiophile components make the little differences that not everybody might be able to hear - but those searching for perfect tone will appreciate all the more! Here comes the SAPPHIRE Series! These patch cables are even better shielded, have gold-plated contacts and with their unique look offer a breath of fresh air on your pedalboard. Of course, all the features of the popular RockBoard Flat Patch Cables have been preserved: compact connector housings, flat and flexible cables. However, the audio quality has been significantly improved so that the sound is being transmitted as unchanged as possible!

DATA

• high-quality double-shielded flat patch cables with rectangular profile

• compact and super flat angled plugs

• gold-plated connectors

• metal plug housings

• flexible copper conductor (20 x 0.12 mm / 36 AWG)

• braided tinned copper shielding (4 x 16 x 0.12 mm / 36 AWG)

• additional aluminum foil shielding

• PE (polyethylene) signal insulation

• PVC cable mantle

• capacitance less than 10 pF/decimeters

• conductor resistance less than 10 mOhm/decimeters

• angled 6.3 mm mono audio plugs

• operating temperature -15º C to +70° C / 5° F to 158° F

• outer dimensions cable (W x H) 7 x 3 mm / 1/4" x 1/8" (rectangular)

• outer dimensions plugs (W x H) 12.5 x 7.5 mm / 1/2" x 5/16"

• transparent with aluminum plug housings

• length 20 cm / 7 7/8"
