Ibanez AZS2209H-PBM AZS Prestige in Prussian Blue Metallic (F2115259)

Ibanez AZS2209H-PBM AZS Prestige in Prussian Blue Metallic (F2115259)

Regular price $1,999.99 USD
Regular price Sale price $1,999.99 USD
Sale Sold out

Inventory varies by location. Please give us a call to check stock in your preferred location!

Winter Haven: (863) 294-4216
Lakeland: (863) 686-3179

View full details

Details


AZS PRESTIGE
There are three principles behind the Ibanez Prestige line: Precision, Performance, and Playability. Prestige combines high-tech manufacturing techniques with old-world Japanese craftsmanship, in order to achieve true innovation in design and construction. The series incorporates ideas and suggestions from musicians from around the world as the cornerstones of the Prestige production process.

SPECS

  • Neck Type: AZ Oval C / S-TECH WOOD Roasted Maple Neck
  • Top/Back/Body: Ash
  • Fretboard: S-TECH WOOD Roasted Maple Fretboard / Black Dot Inlay
  • Frets: Jumbo Stainless Steel Frets / Prestige Fret Edge Treatment
  • Number of Frets: 22
  • Bridge: Gotoh F1803 Bridge
  • String Spacing: 10.5mm
  • Neck Pickup: Seymour Duncan Magic Touch-Mini (H) Neck Pickup (Passive/Alnico)
  • Bridge Pickup: Seymour Duncan Alnico II Pro Custom (S) Bridge Pickup (Passive/Alnico)
  • Factory Tuning: 1E,2B,3G,4D,5A,6E
  • String Gauge: .010/.013/.017/.026/.036/.046
  • Nut: Bone
  • Hardware Color: Chrome

NECK DIMENSIONS
  • Scale: 648mm/25.5"
  • Width at Nut: 42mm
  • Width at 22F: 56.4mm
  • Thickness at 1F: 20.5mm
  • Thickness at 12F: 22.5mm
  • Radius: 305mmR

OTHER SPECS
  • Hardshell Case included
  • Gotoh Magnum Lock Machine Heads with Height-Adjustable Posts
  • dyna-MIX5 Switching System with Alter Switch
  • Luminlay Side Dots


FEATURES:

Seymour Duncan Pickups
The Magic Touch-mini pickup in the neck position offers iconic tonal clarity for which this style of guitar is known, yet with extra body and articulation. The output level is also carefully configured to perfectly match the bridge pickup. The Alnico II Pro Custom pickup in bridge position offers up an ample supply of clarity and twang, while also delivering a nice mid-range bark.

Gotoh/Ibanez Co-Designed "In-Tune" Saddles
These saddles are equipped with grooves which actively prevent each string from slipping to the side. The saddles also feature rounded edges and deeper grooves on 1st and 6th strings, which means much less saddle tilting is required to adjust the string height, and equal string spacing is more easily achieved. Additionally, the saddles are designed with pre-calculated “intonation points” where the string touches the saddle, allowing each string to have and maintain precise intonation. The 10.5mm string spacing allows for easy picking across strings. The saddles themselves are made of titanium for maximum tonal clarity.

Steel Pickup Plate
This steel pickup plate is designed exclusively for AZS series. It’s a critical component that helps generate that quintessential ”Twangy” tone, for which this style guitar is known. This plate is present on both the tremolo and hardtail versions of the AZS, something that is not typical for guitars of this type. This plate, in combination with the traditional style single coil bridge pickup, preserves this iconic sound across the entire AZS lineup.

S-TECH WOOD Roasted Maple Neck & Fingerboard
S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes, while also providing a superior attack and well-balanced tone with rich sustain. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck. The fretboard edge is finished with a smooth curve to achieve supreme neck grip comfort.

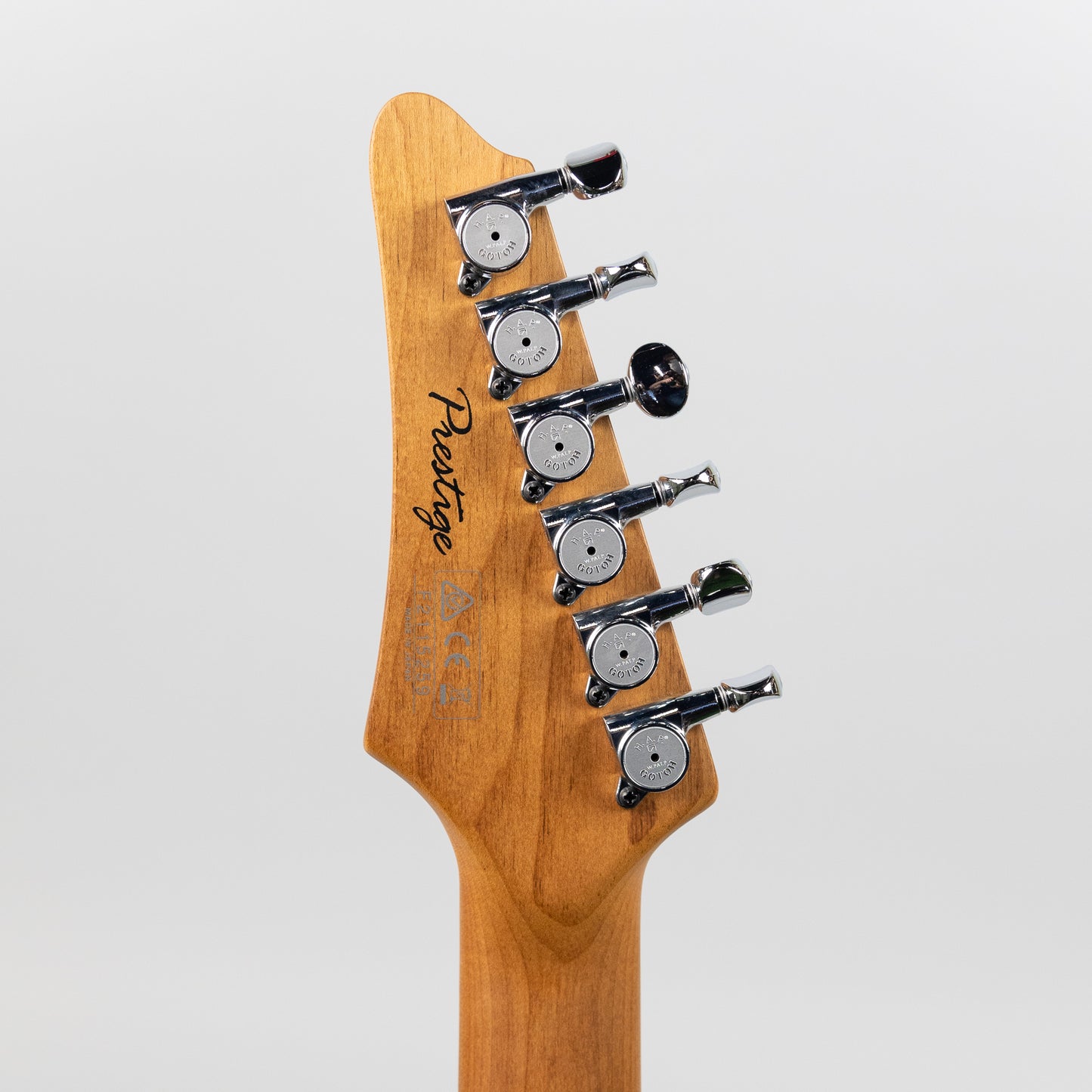

Gotoh Magnum Lock Machine Heads
The AZS comes with GOTOH MAGNUM LOCK machine heads, which have an established reputation for tuning stability. Its H.A.P. (Height Adjustable Post) system allows for the adjustment of string posts for the appropriate tension of each string.

SKU: AZS2209HPBM|||F2115259

SWITCHING

When the alter switch tilts downward, two hum tap mode is off. When the alter switch tilts upward, two hum tap mode is on. With two hum tap mode disabled: When the pickup selector switch is in neck position, the neck pickup is active. When the switch is in center position, the neck and bridge pickups are active, and the bridge pickup is in parallel. When the switch is in bridge position, the bridge side of the neck and bridge pickups are active. With two hum tap mode enabled: When the pickup selector switch is in neck position, the neck pickup is active. When the switch is in center position, the bridge side of the neck and bridge pickups are active in parallel. When the switch is in bridge position, the bridge pickup is active.

CONTROLS

With the guitar held in the playing position, there is a three-way selector switch near the knee cutout on the lower part of the guitar. The volume knob, alter switch, and tone knob are situated closer to the end of the body. When the alter switch tilts downward, the two hum tap mode is off. When the alter switch tilts upward, two hum tap mode is on.
