Born from a long lineage of stringed instruments, the acoustic guitar is steeped in tradition. But music continues to evolve, and musicians demand inspiring new tools with which to carve out their own signature sound. In that spirit, Ibanez introduced the AE, their new flagship series of acoustic-electric guitars. Offering supreme tone and playability, Ibanez AE is the next step in a great tradition.

Wood grain may vary from product photos shown.

FEATURES

• Standard X-M Bracing: Spending a few years with trial and error, Ibanez finally reached to out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet providing wide dynamic range and highly response.

• AE Body Shape: Designed for projection, balance, and comfort, the AE's perfectly crafted contemporary body shape offers the best of all worlds.

• Ibanez AP11 Magnetic Pickup: The newly designed AP11 pickup is small, lightweight, and positioned so it won’t inhibit the natural vibrations of the top wood. The pickup generates a highly responsive sound with minimal feedback and delivers a lively response throughout the entire frequency range. The sound is transparent and reflects the guitar’s natural acoustic tone while preserving presence and mid-range. The AP11 also works well with effects such as reverb, chorus, and many others.

• Ibanez Custom Electronics: The guitar also features on-board treble and bass controls for contouring the tone, making the AE suitable for variety of applications for modern players.

• Scalloped Bridge: The light-weight Scalloped Bridge helps improving the vibration efficiency of the top board for better resonance, as well as giving more flexible string action adjustment.

• Comfort Grip with Rounded Fingerboard Edge: In order to achieve supreme playability, the neck was specially designed with Thin-C shape style comfort grip with fingerboard's rounded edge.

• Jumbo Frets: The jumbo frets support easy fingering.

• Ibanez Advantage Bridge Pins: These pins really are an advantage over old-fashioned pins. Advantage pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage the pin and string stay put.


SPECS
Body Shape: AE Body
Bracing: Standard X-M Bracing
Top: Solid Sitka Spruce

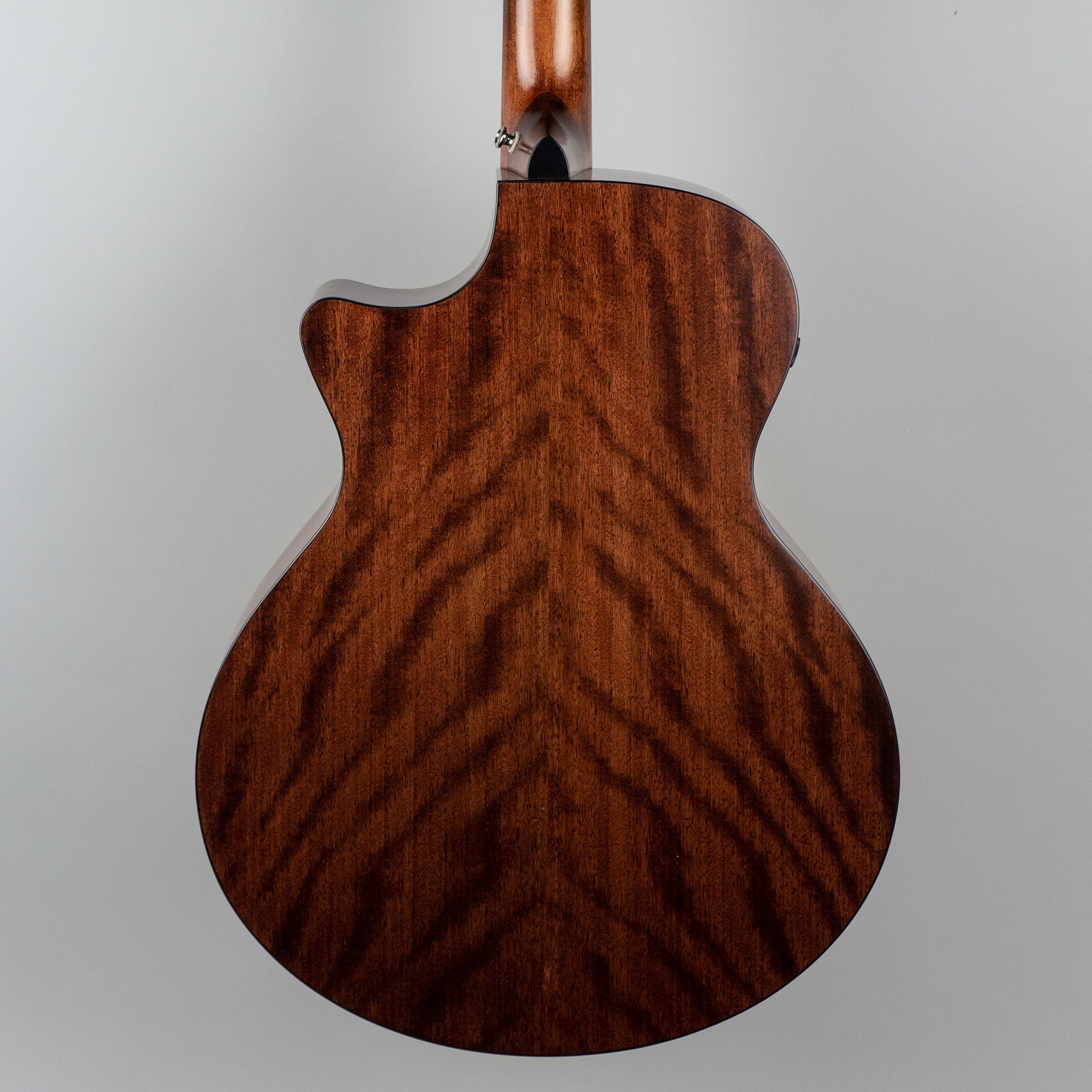

Back & Sides: Okoume
Neck: Comfort Grip w/Rounded Fretboard Edge / Nyatoh Neck
Fretboard: Katalox Fretboard
Bridge: Katalox Scalloped Bridge
Inlay: Specially Designed Wooden Vine Inlay
Soundhole Rosette: Abalone and Wooden

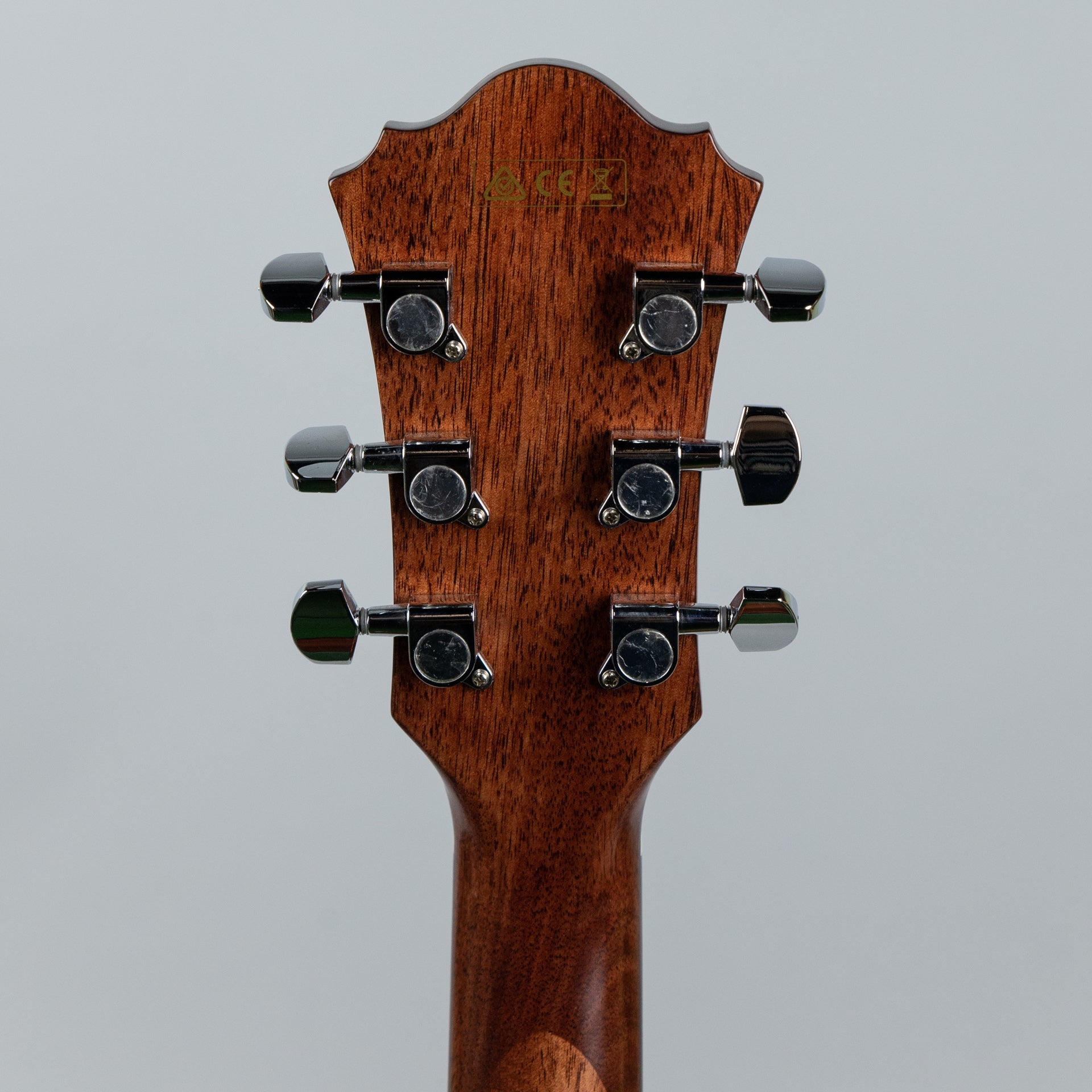

Tuning Machines: Chrome Die-Cast Tuners (1:18 gear ratio)
Nut Material: Bone
Number of Frets: 20
Saddle Material: Compensated Bone
Bridge Pins: Ibanez Advantage
String Gauge: .016/.022/.029/.048/.060/.070
String Spacing: 11mm
Factory Tuning: 1B,2F#,3D,4A, 5E, 6B
Pickup: Ibanez AP11 Magnetic Pickup
Preamp: Ibanez Custom Electronics w/Volume and Tone Control
Output Jack: 1/4" Endpin Jack

NECK DIMENSIONS
Scale: 685.7mm
Width at Nut: 45mm
Width at 14F: 56mm
Thickness at 1F: 21mm
Thickness at 7F: 22mm
Radius: 400mmR

BODY DIMENSIONS
Length: 20"
Width: 16 1/8"
Max Depth: 4 5/8"

Case not included.
