Details

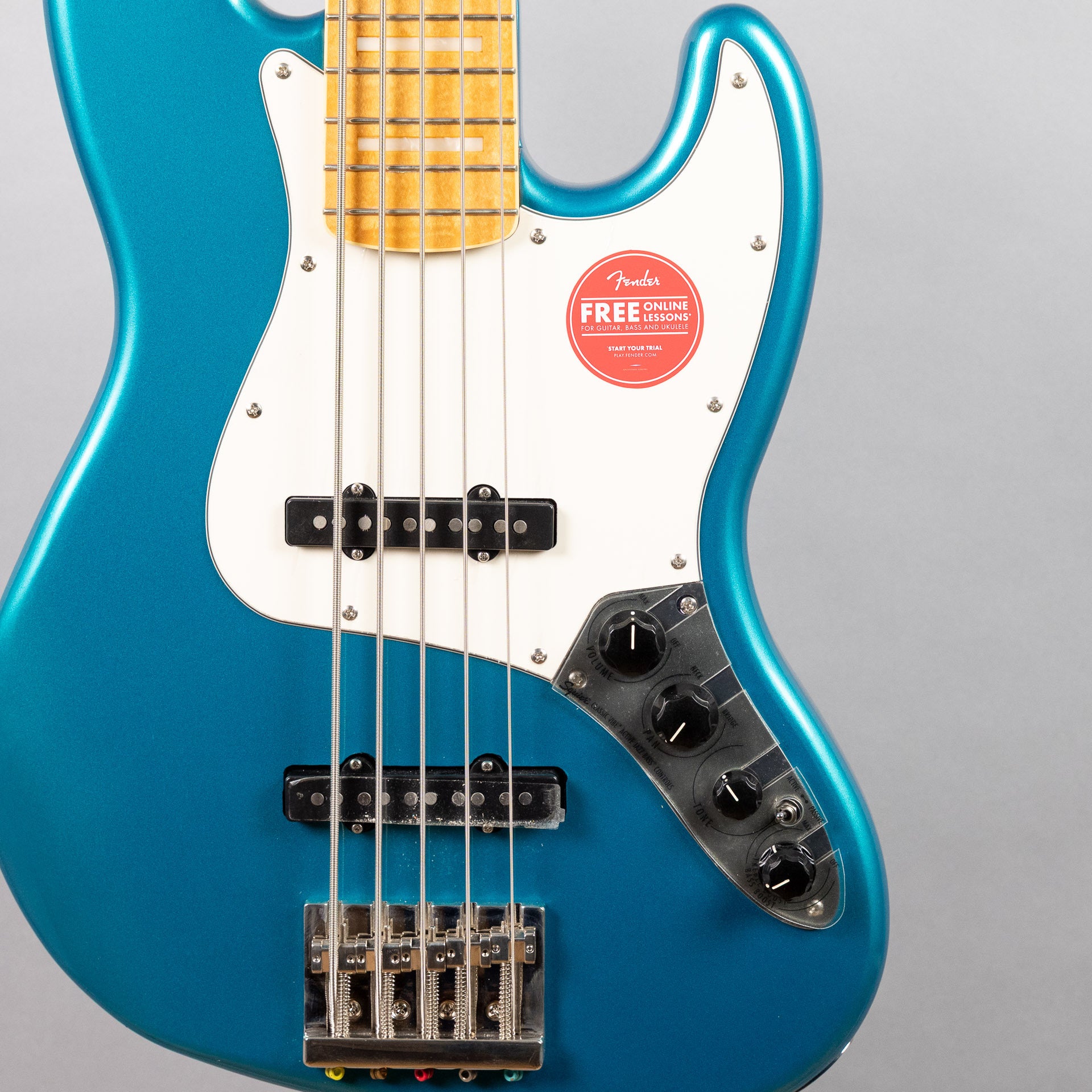

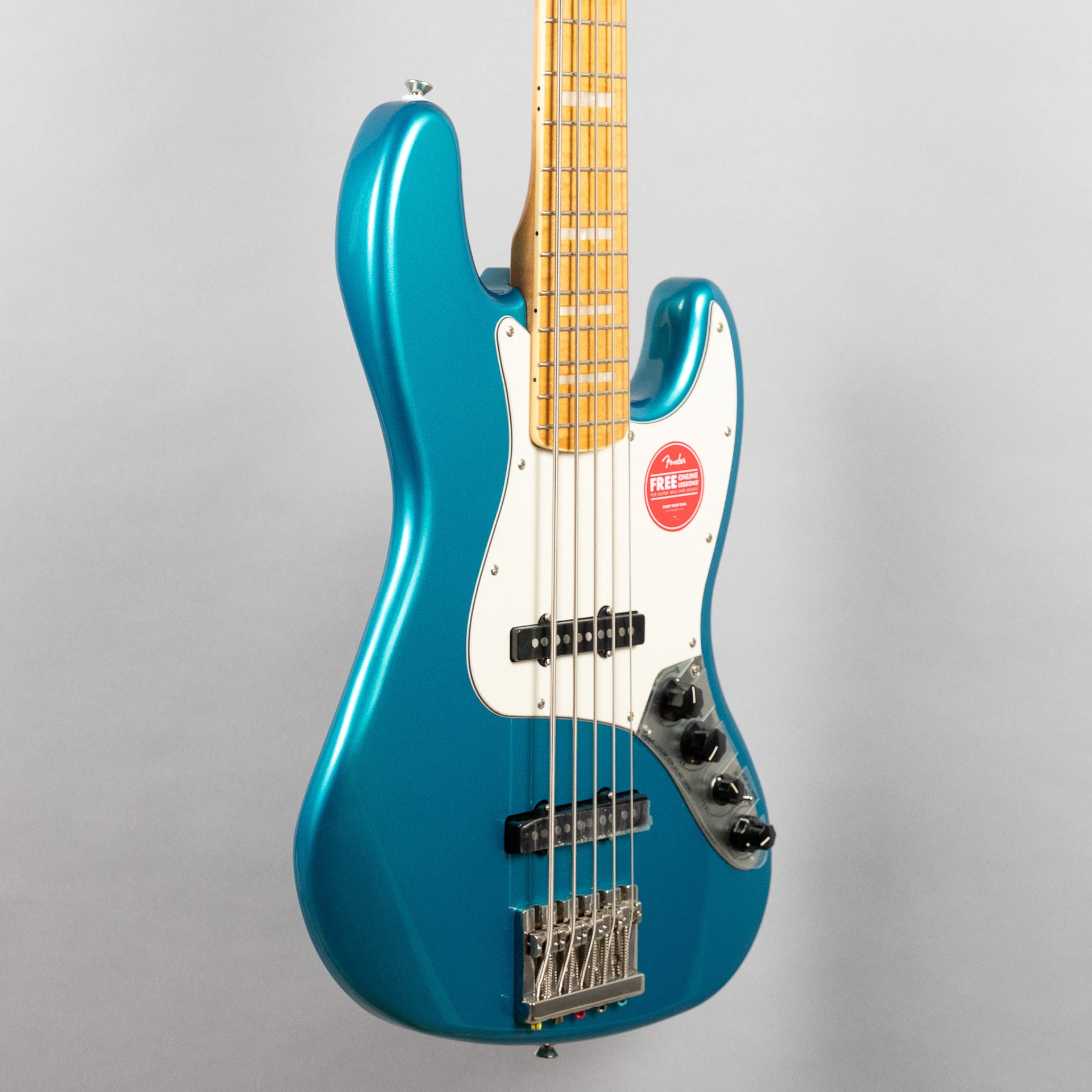

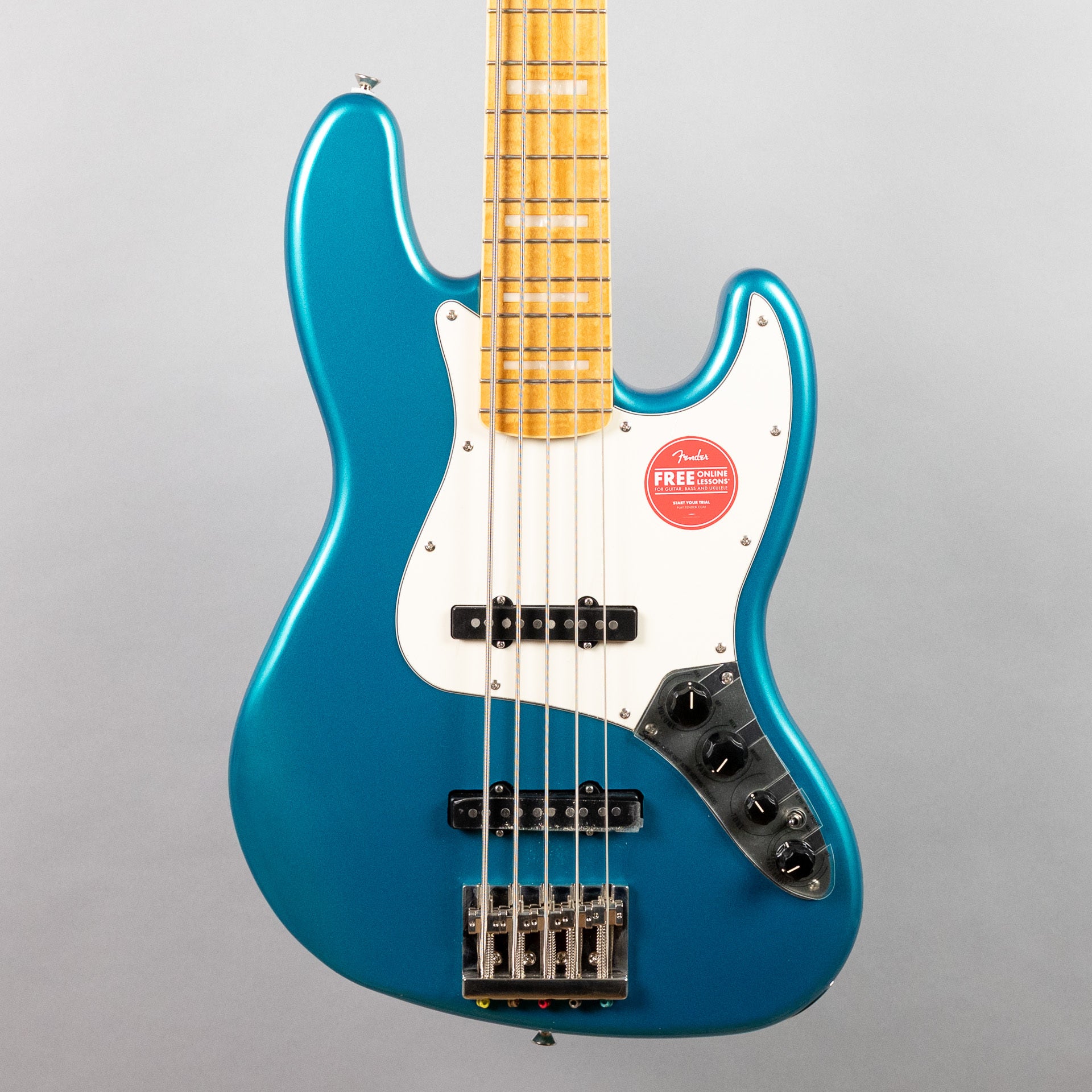

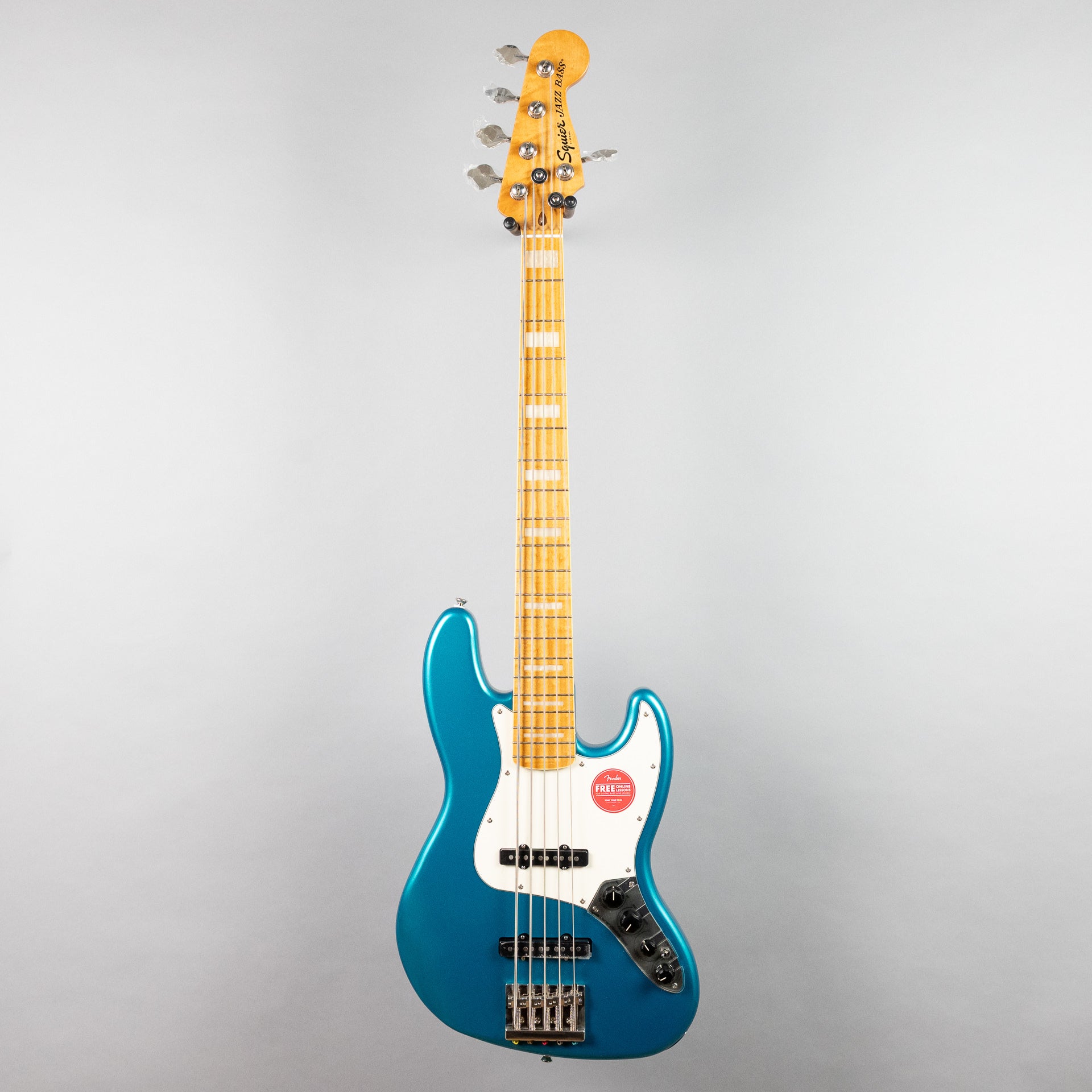

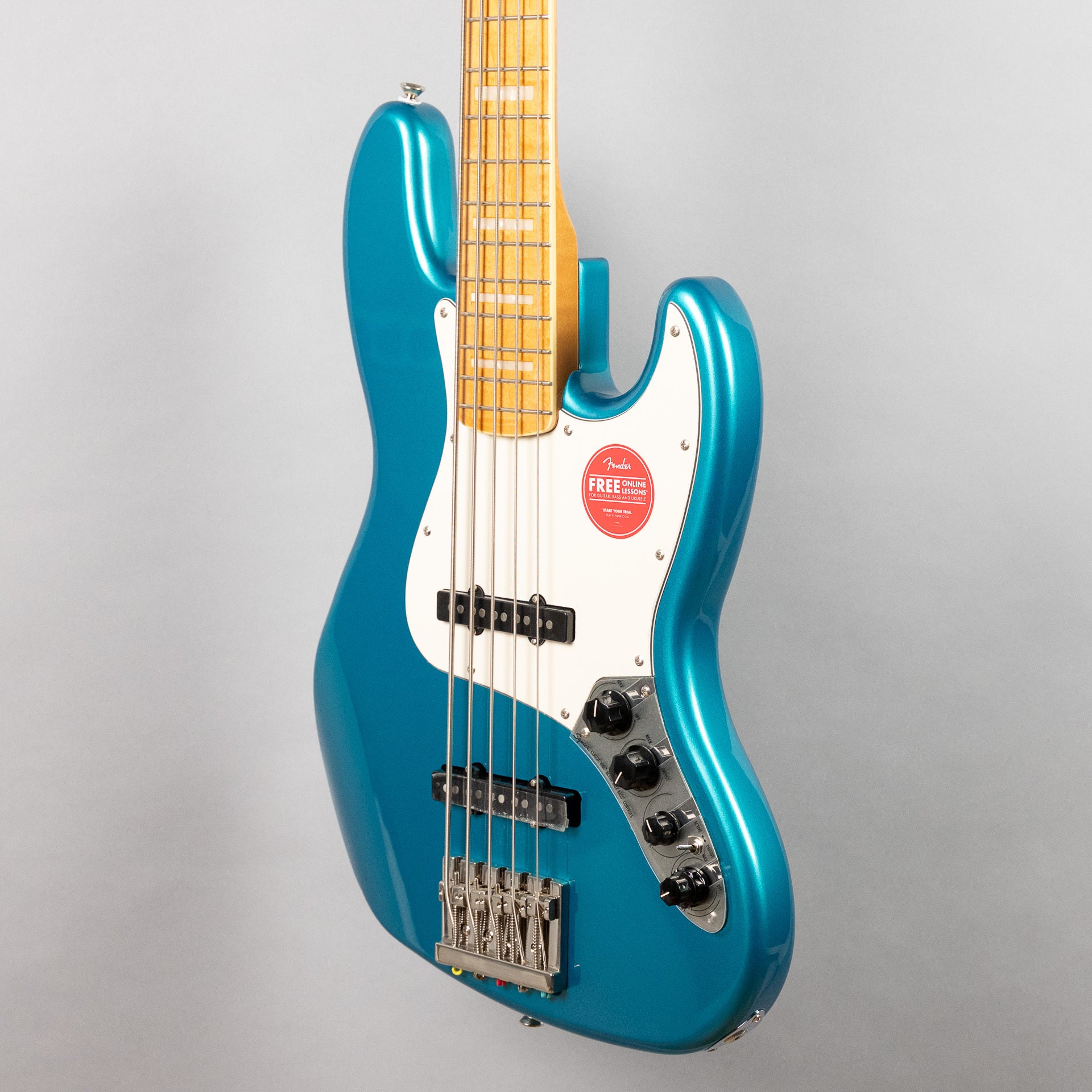

The Classic Vibe Active ’70s Jazz Bass V draws its inspiration from the infamous basses that defined the funky tones of the 1970s, adding an onboard preamp for the ultimate combination of vintage looks and modern performance. Powering this Squier 5-string groove machine is a pair of Fender Designed alnico Noiseless J Bass pickups for punchy hum-free signal. The 9-volt preamp provides controls for volume, pickup blend, treble and bass boost, and a toggle to switch between active and passive for complete tone-shaping control. Other details include a HiMass bridge for optimal resonance, a striking bound fingerboard with block inlays, rich-looking nickel-plated hardware and a slick vintage-tinted gloss neck finish for an old-school vibe.

Features

• Fender Designed Noiseless Jazz Bass pickups
• Onboard 9-volt preamp with controls for volume, tone, pickup blend, treble/bass boost
• Active/passive switch
• HiMass bridge
• Vintage-tinted gloss neck finish
• Nickel-plated hardware

Fender Designed Noiseless Pickups: Designed in-house at Fender, the dual coil design of these alnico pickups eliminates unwanted noise from the signal while retaining tonal richness, detail and punch.

9V Active Preamp: Powered by a 9-volt battery, this preamp includes controls for volume, pickup blend, tone, and treble/bass boost.

Active/Passive Switch: With a tone knob that functions in both active and passive settings, the electronics include a switch on the control plate to engage the preamp for added bass and treble boost control.

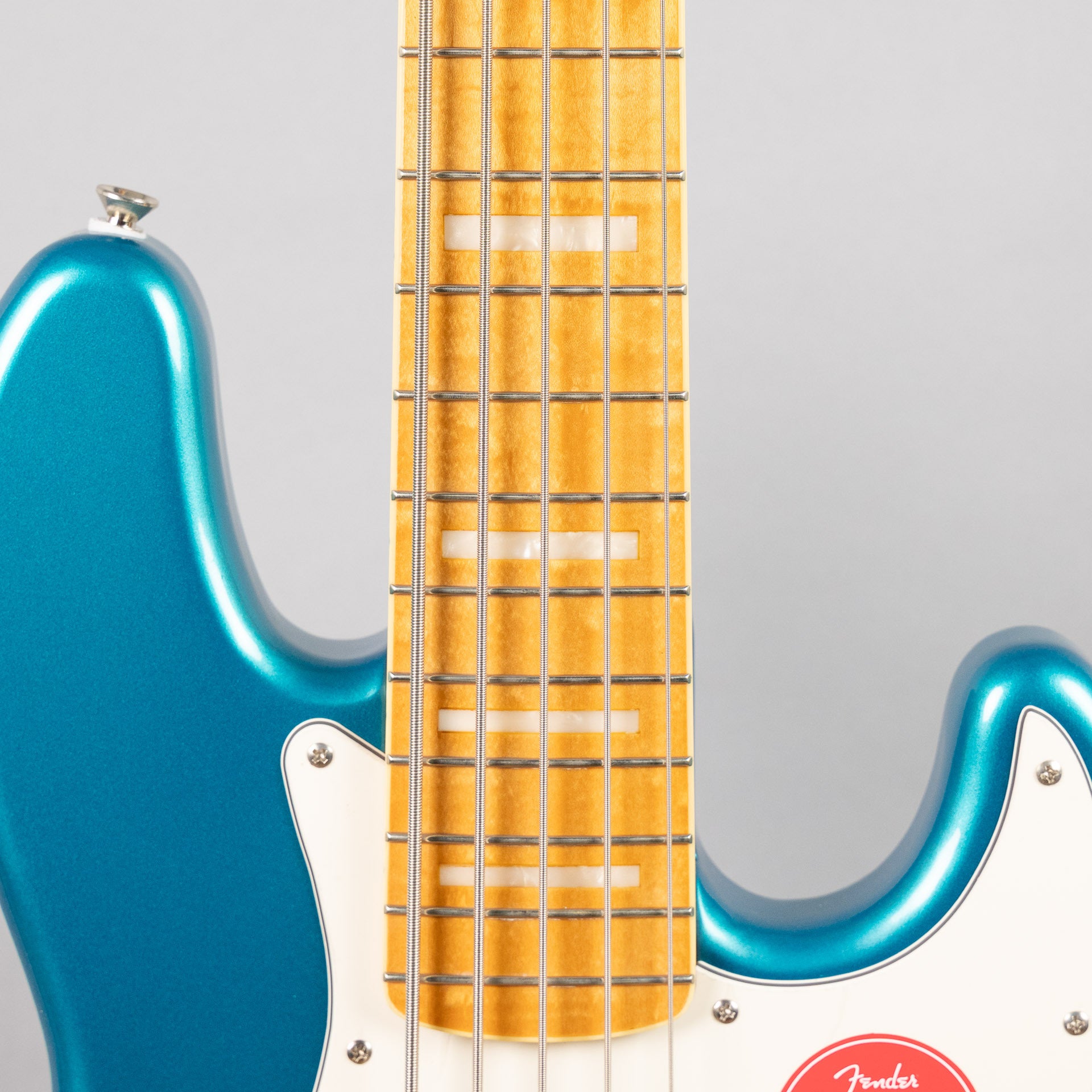

Bound Fingerboard: The bound fingerboard not only adds vintage charm to this instrument, but also improves visibility of the side markers in dark playing environments.

HiMass Bridge: This top-load bridge features a plate with more mass that adds resonance and sustain while the 5 beefed up saddles seat nicely inside saddle slots for rock solid intonation and stability.

Vintage-Tinted Neck: With gloss finish for slick playing feel, this neck has a subtle tint for a throwback look.

Specifications

GENERAL

• Color: Ocean Turquoise
• Orientation: Right-Hand
• Product Name: Classic Vibe™ Active '70s Jazz Bass® V, Maple Fingerboard, Parchment Pickguard, Ocean Turquoise
• Series: Classic Vibe

BODY

• Body Material: Poplar
• Body Finish: Gloss Polyurethane
• Body Shape: Jazz Bass

NECK

• Fingerboard Material: Maple
• Fingerboard Radius: 9.5" (241mm)
• Neck Binding: Ivory
• Neck Finish: Tinted Gloss Urethane
• Neck Material: Maple
• Neck Shape: "C" Shape
• Number of Frets: 20
• Nut Material: Bone
• Nut Width: 1.875" (47.6mm)
• Position Inlays: Pearloid Black
• Side Dots: Black
• String Nut: Bone
• Truss Rod: Head Adjust
• Fret Size: Narrow Tall
• Scale Length: 34" (864mm)

ELECTRONICS

• Bridge Pickup: Fender Designed Alnico Noiseless
• Controls: Master Volume, Pan, Master Tone, Treble/Bass Boost
• Neck Pickup: Fender Designed Alnico Noiseless
• Pickup Configuration: SS
• Switching: 2-Position Mini Toggle Active/Passive Switch

HARDWARE

• Bridge: HiMass
• Control Knobs: Black Plastic
• Hardware Finish: Nickel
• Neck Plate: 4-Bolt Squier
• Pickguard: 3-Ply Parchment
• Pickup Covers: Black
• Strings: .045-.130 Gauges

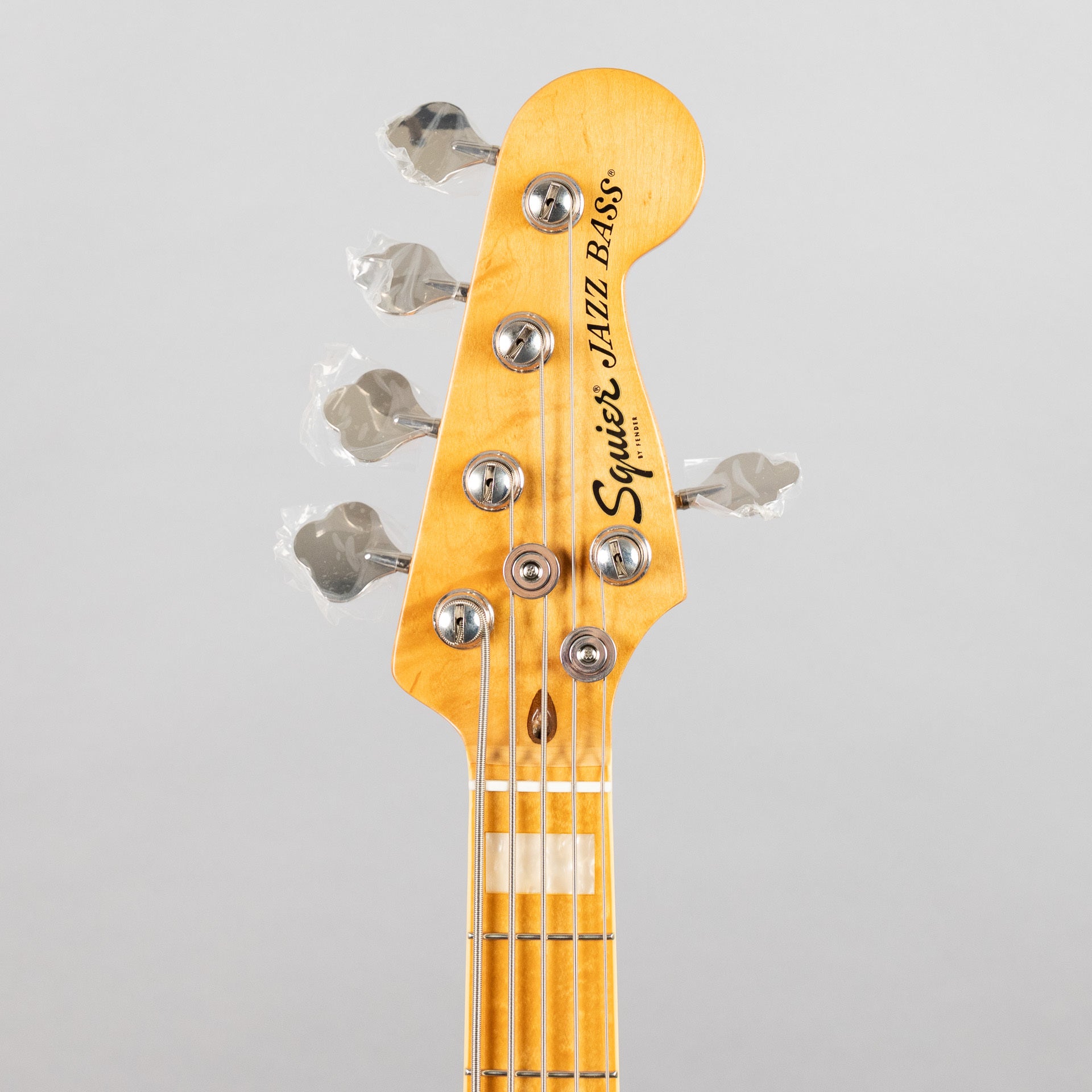

• Tuning Machines: Vintage-Style

MISCELLANEOUS

• Included Accessories: None
