Details

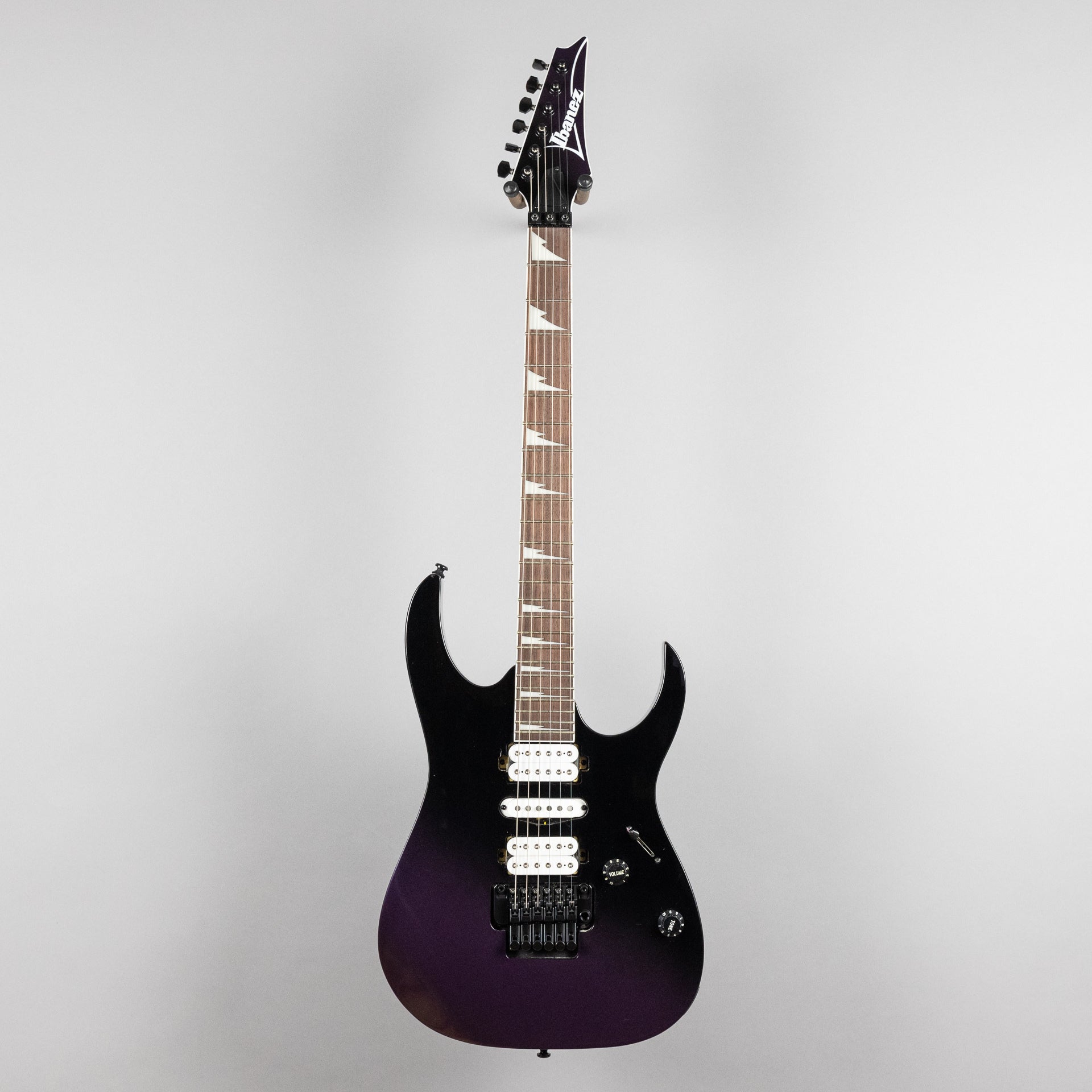

Ibanez builds guitars for players of all levels - from beginners to the most demanding masters of the instrument. Regardless of price, Ibanez always strives to offer the absolute best sound, style, and playability in its class. The Standard series incorporates all the staples the Ibanez brand is famous for, such as fast necks, floating trems, and high-octane distortion in a package that is available and accessible to most players.

Wood grain may vary from product photos shown. Case not included.

Specs

• Neck Type: Wizard III / Maple Neck
• Top/Back/Body: Meranti
• Fretboard: Jatoba Fretboard / Sharktooth Inlay
• Frets: Jumbo
• Number of Frets: 24
• Bridge: Edge-Zero II Bridge
• String Spacing: 10.8mm
• Neck Pickup: Quantum (H) Neck Pickup (Passive/Ceramic)
• Middle Pickup: Quantum (S) Middle Pickup (Passive/Alnico)
• Bridge Pickup: Quantum (H) Bridge Pickup (Passive/Ceramic)
• Factory Tuning: 1E,2B,3G,4D,5A,6E
• String Gauge: .009/.011/.016/.024/.032/.042
• Nut: Locking Nut
• Hardware Color: Black

Neck Dimensions

• Scale: 648mm / 25.5"
• Width at Nut: 43mm
• Width at 24F: 58mm
• Thickness at 1F: 19mm
• Thickness at 12F: 21mm
• Radius: 400mmR

Switching System

When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.

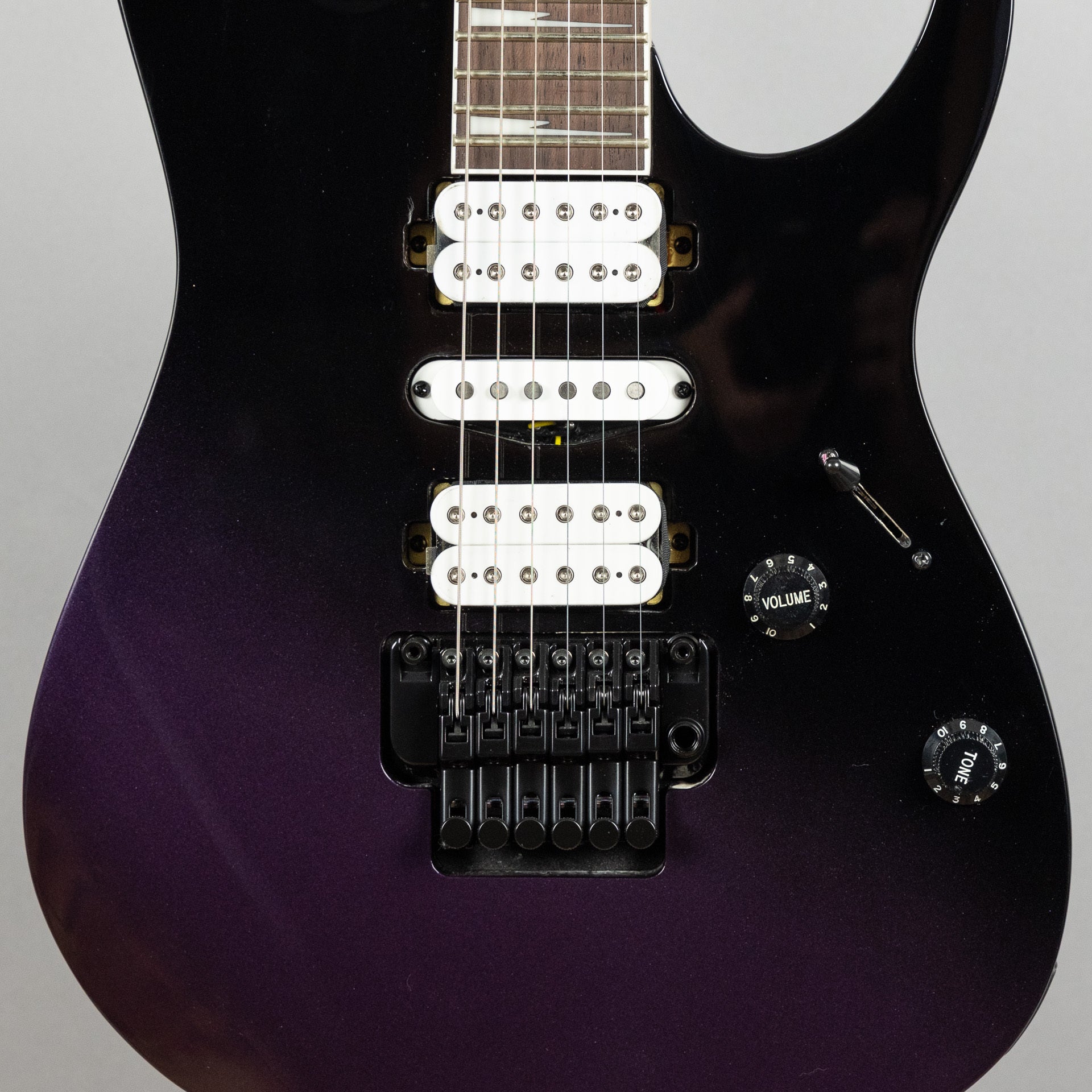

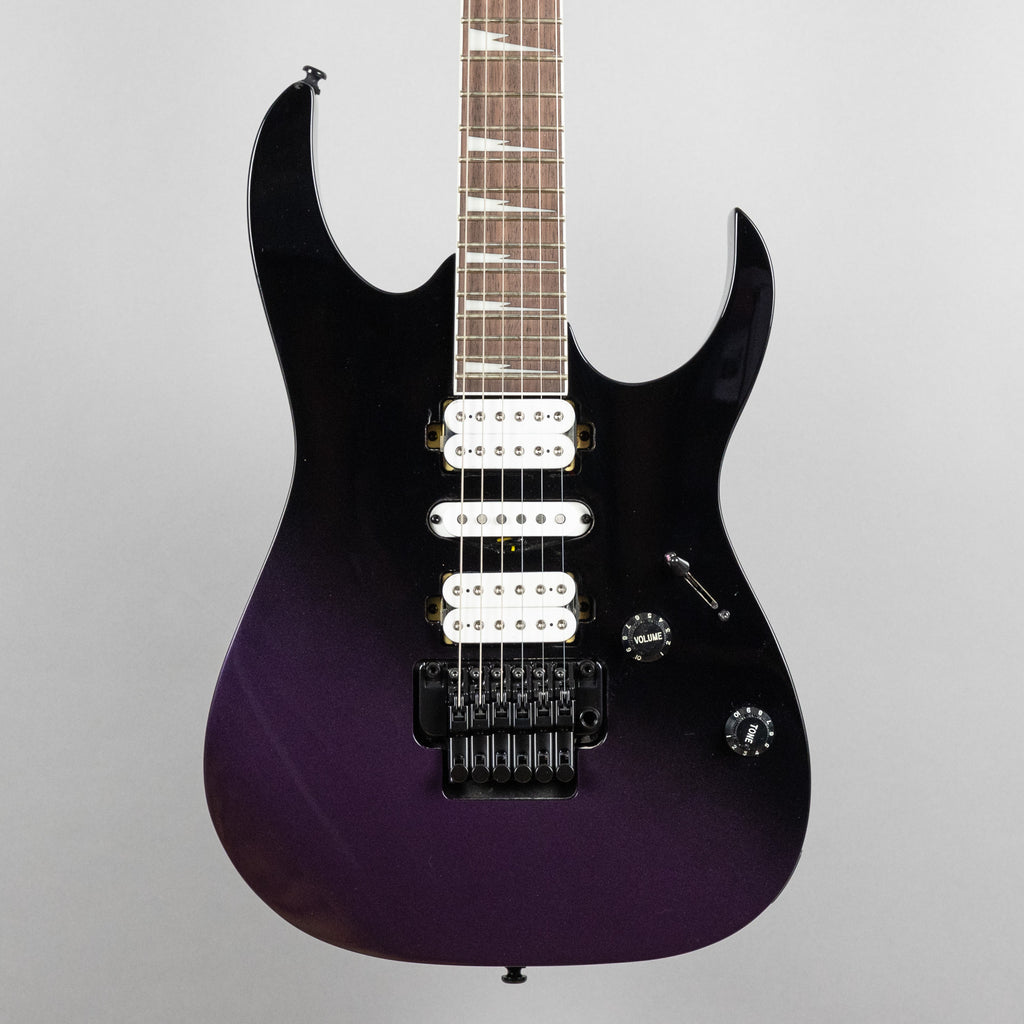

Controls

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
