Details

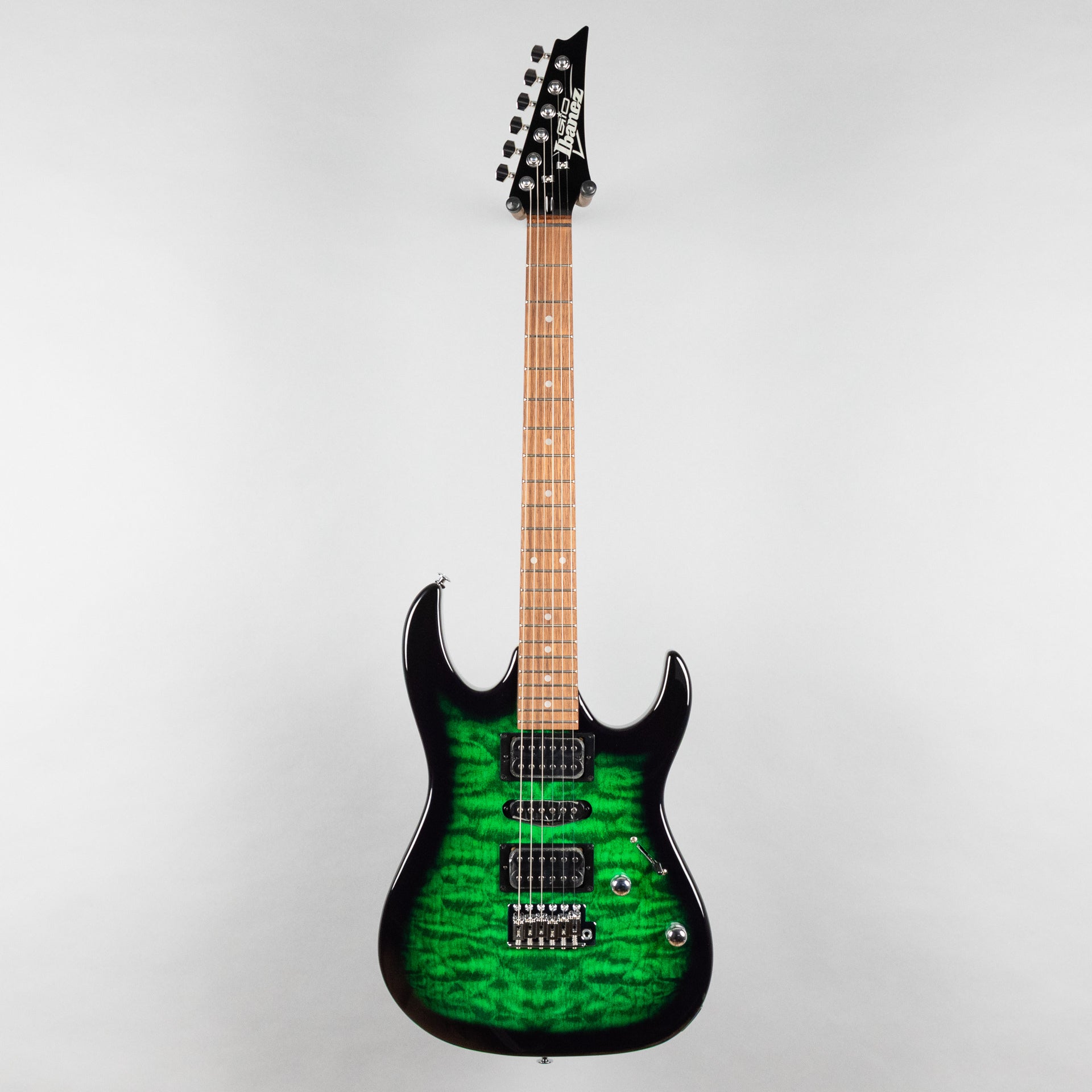

RG Gio

A guitar doesn't have to cost a bundle to sound good. The GIO series was developed for players who want Ibanez quality in a more affordable package. Not only do they look and play better than everything else in their price range, but their rigorous inspection, set-up and warranty is the same as Ibanez's more expensive models.

Wood grain may vary from product photos shown. Case not included.

Specifications

• Neck Type: GRX / Maple Neck
• Top/Back/Body: Quilted Maple Art Grain (Basswood) Top / Poplar Body

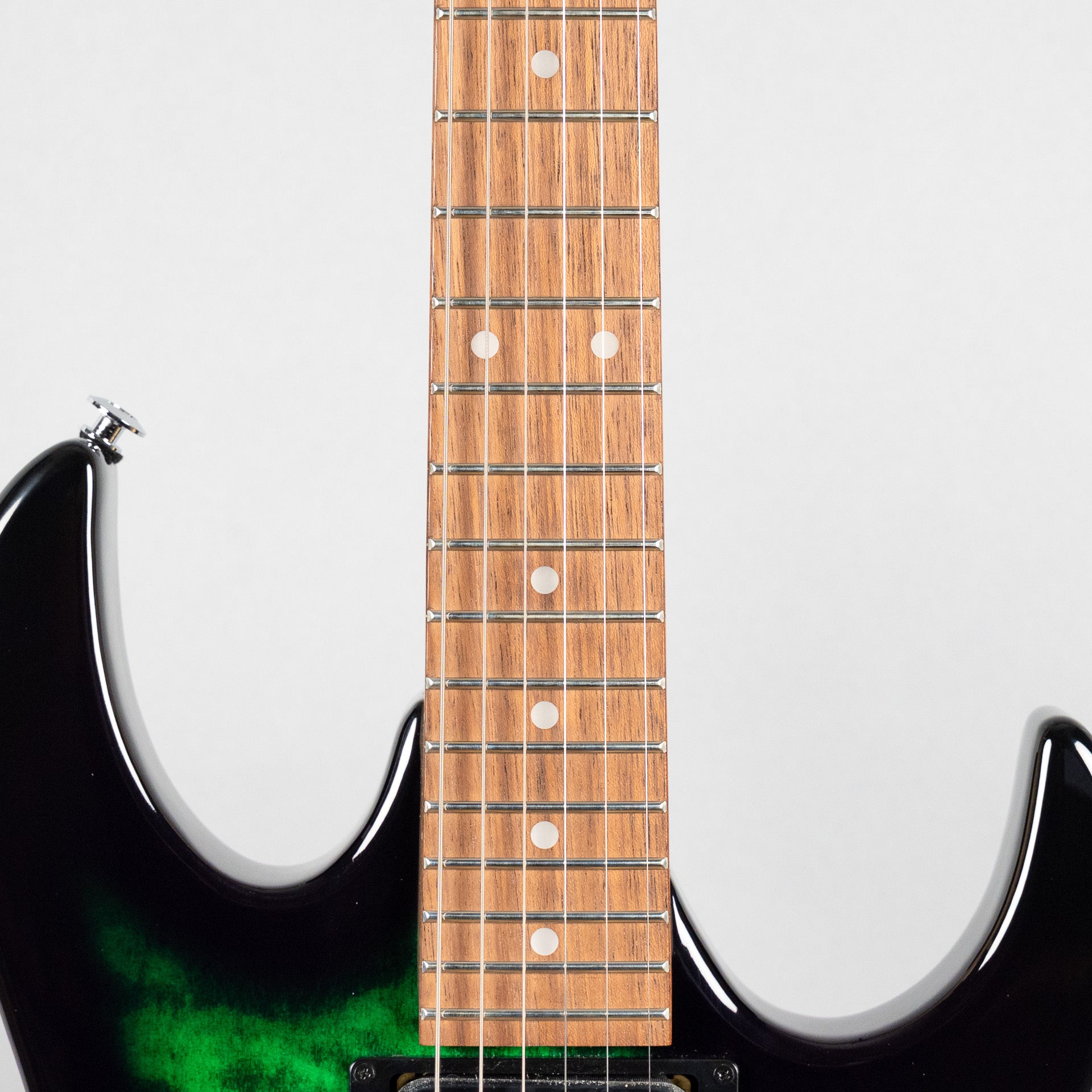

• Fretboard: Jatoba Fretboard / White Dot Inlay
• Frets: Medium
• Number of Frets: 22
• Bridge: T106 Bridge
• String Spacing: 10.5mm

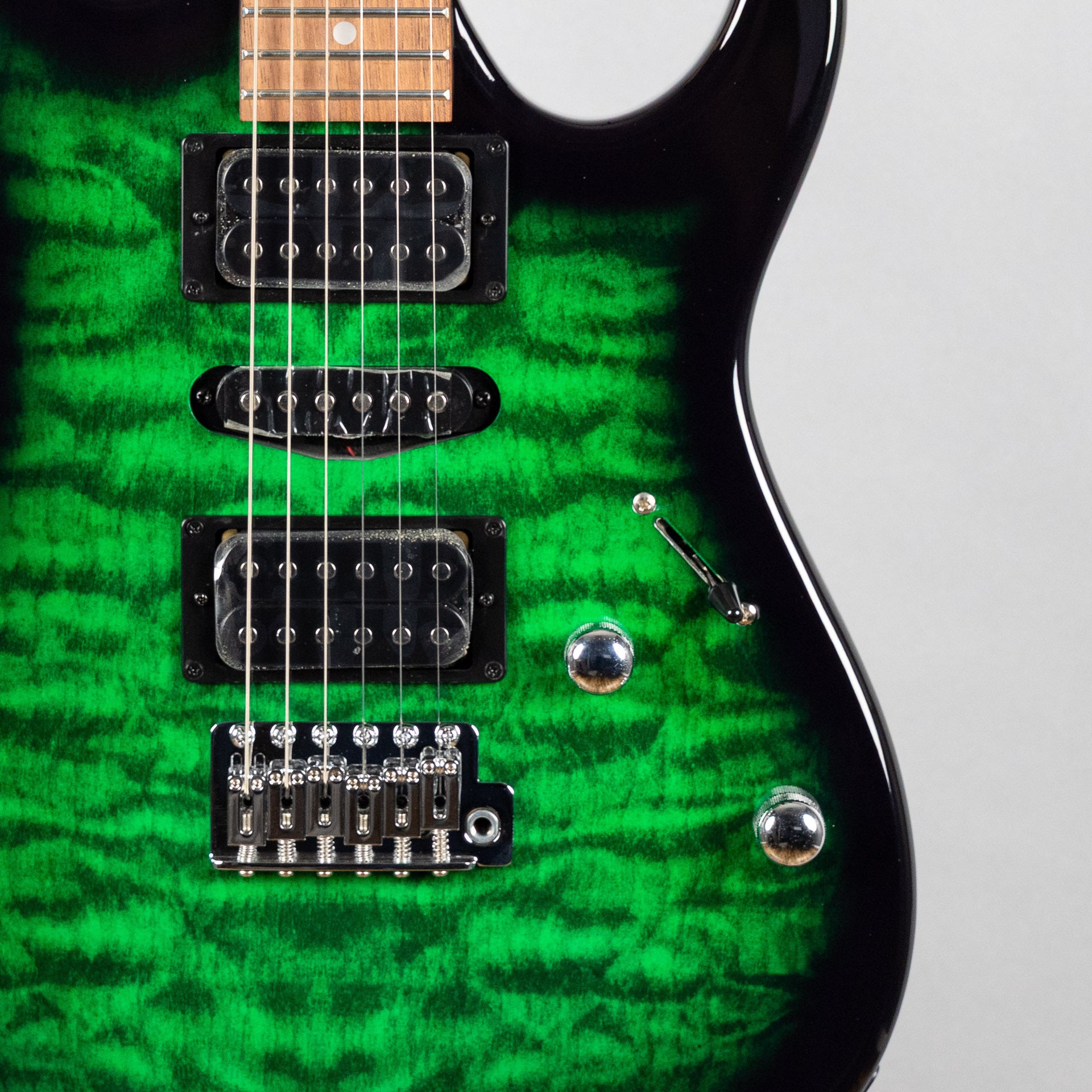

• Neck Pickup: Infinity R (H) Neck Pickup (Passive/Ceramic)
• Middle Pickup: Infinity RS (S) Middle Pickup (Passive/Ceramic)
• Bridge Pickup: Infinity R (H) Bridge Pickup (Passive/Ceramic)
• Factory Tuning: 1E,2B,3G,4D,5A,6E
• String Gauge: .009/.011/.016/.024/.032/.042
• Hardware Color: Chrome

Neck Dimensions

• Scale Length: 648mm / 25.5"
• Width at Nut: 42mm
• Width at 22F: 57mm
• Thickness at 1F: 19.5mm
• Thickness at 12F: 21.5mm
• Radius: 305mmR

Switching System

When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.

Controls

• Volume
• Tone
• 5-Way Pickup Selector
