Details

The Artwood series was designed to blend the best traditional elements with modern guitar construction. Technology moves forward at a frenetic pace, and the world of guitar building is no different. In producing the Artwood series, we've respected the rich tradition of the acoustic guitar, while adding modern interpretations in our continuing search for the ultimate in guitar tone.

Wood grain may vary from product photos shown. Case not included.

Specifications

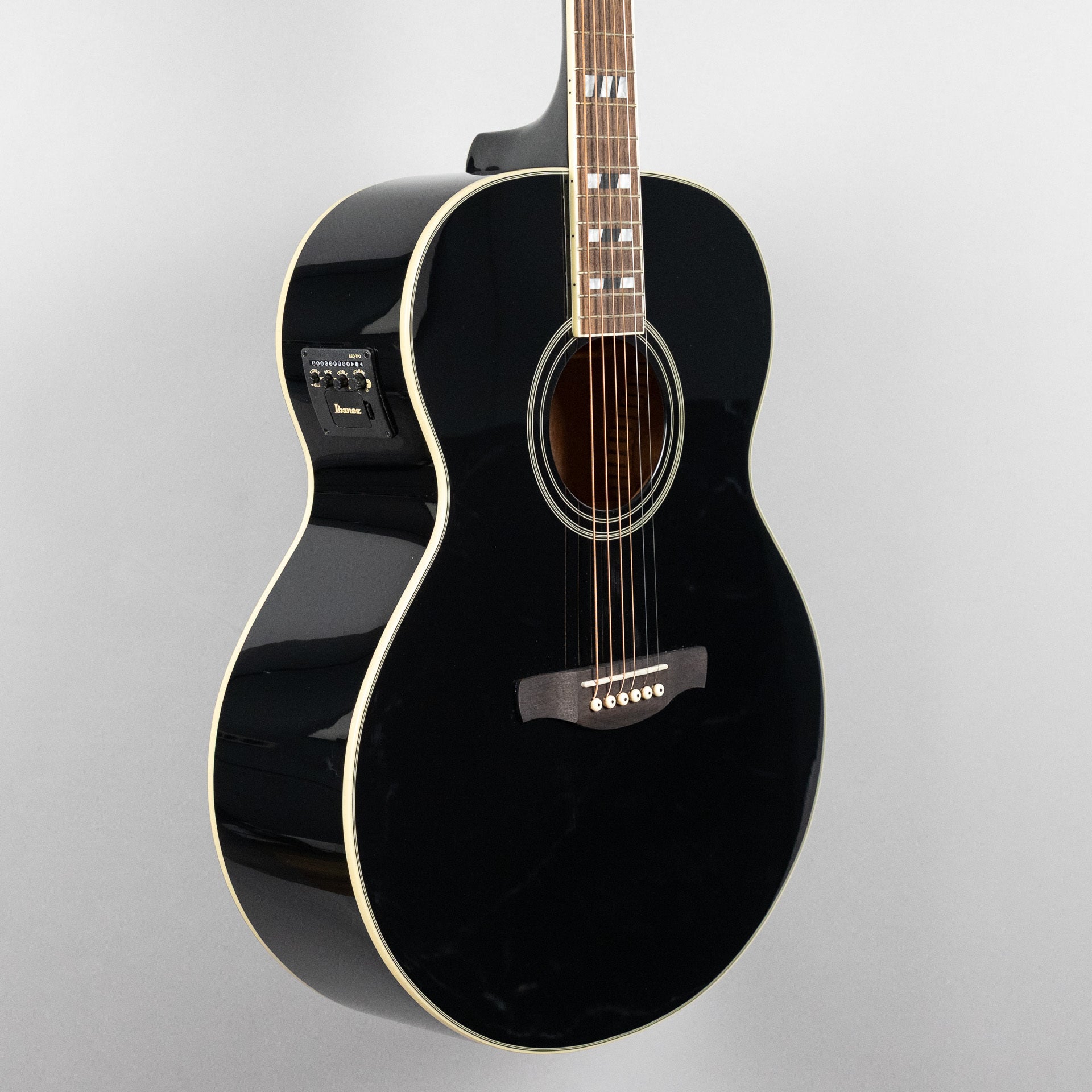

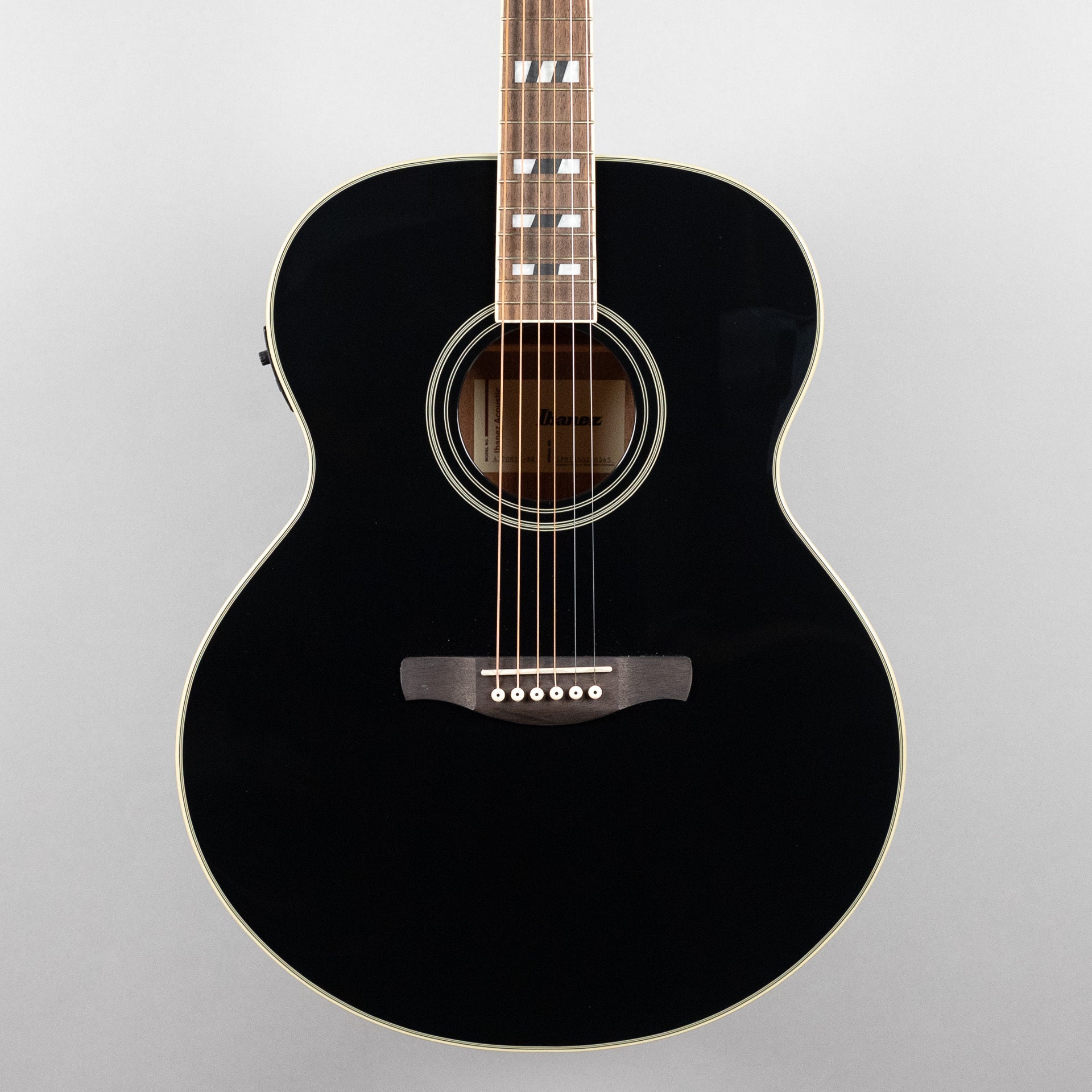

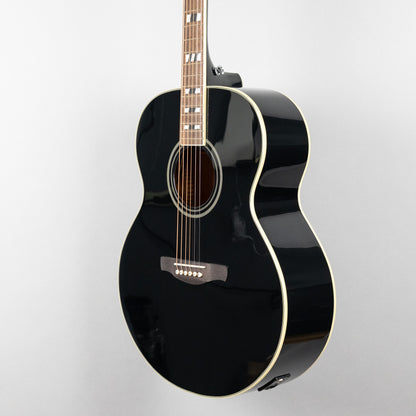

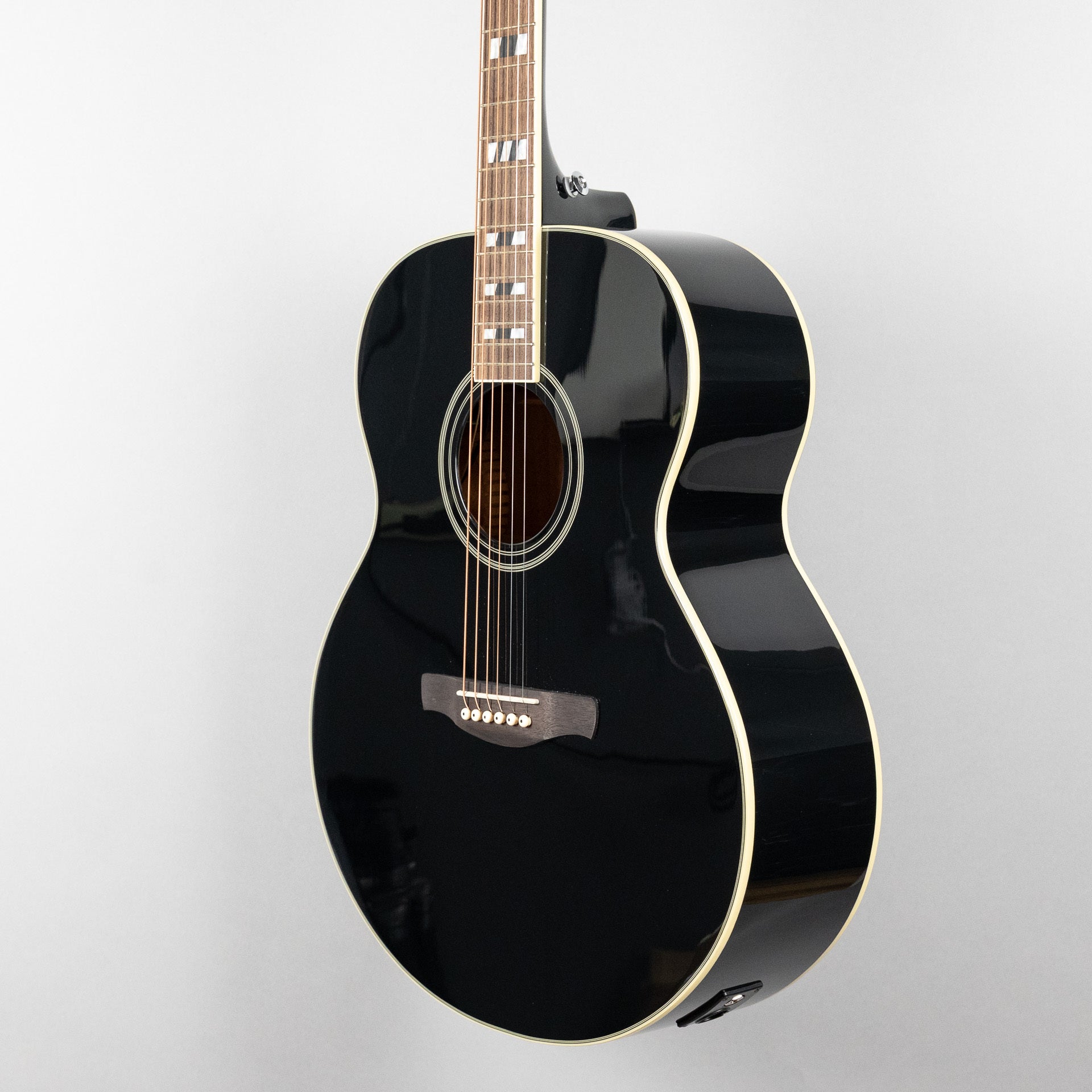

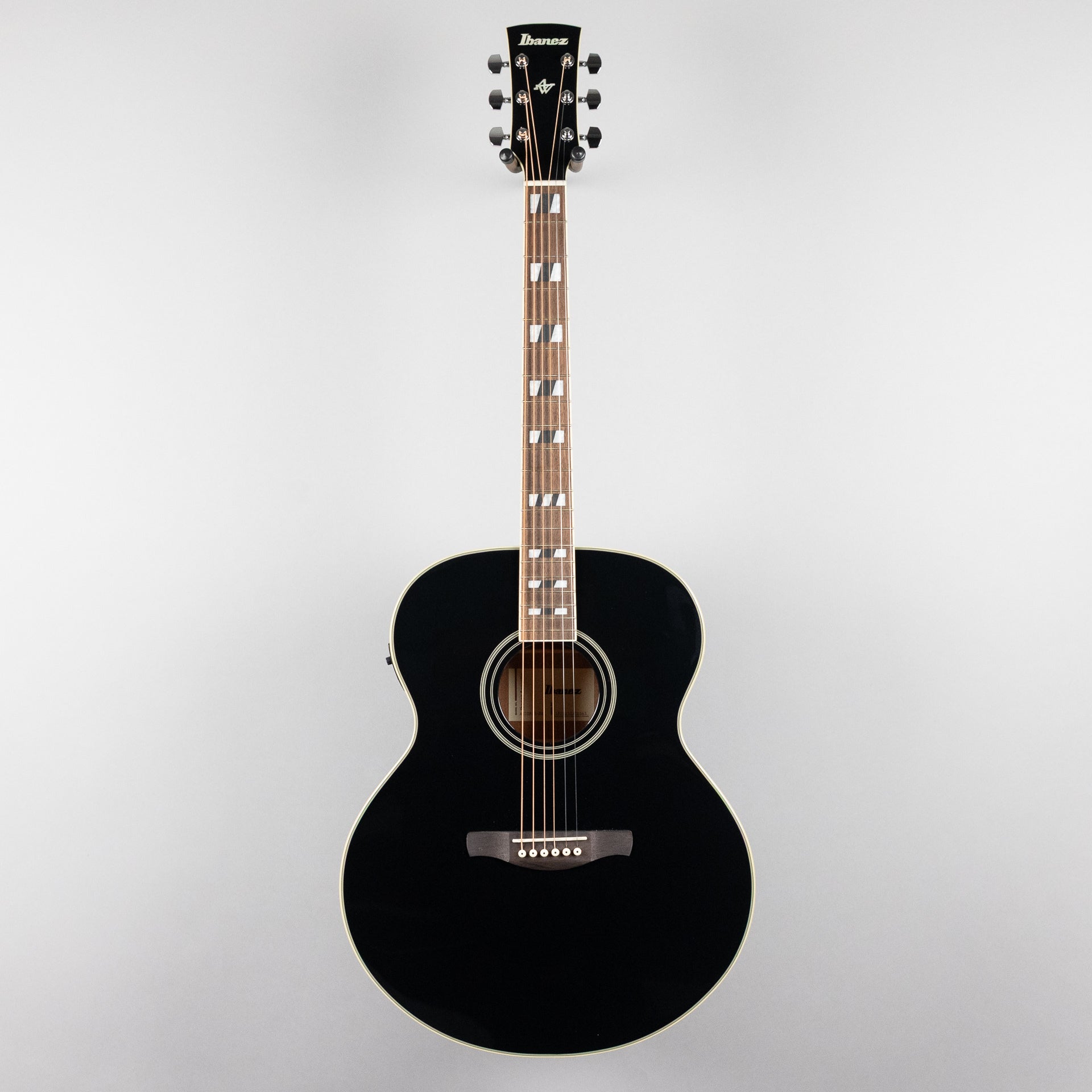

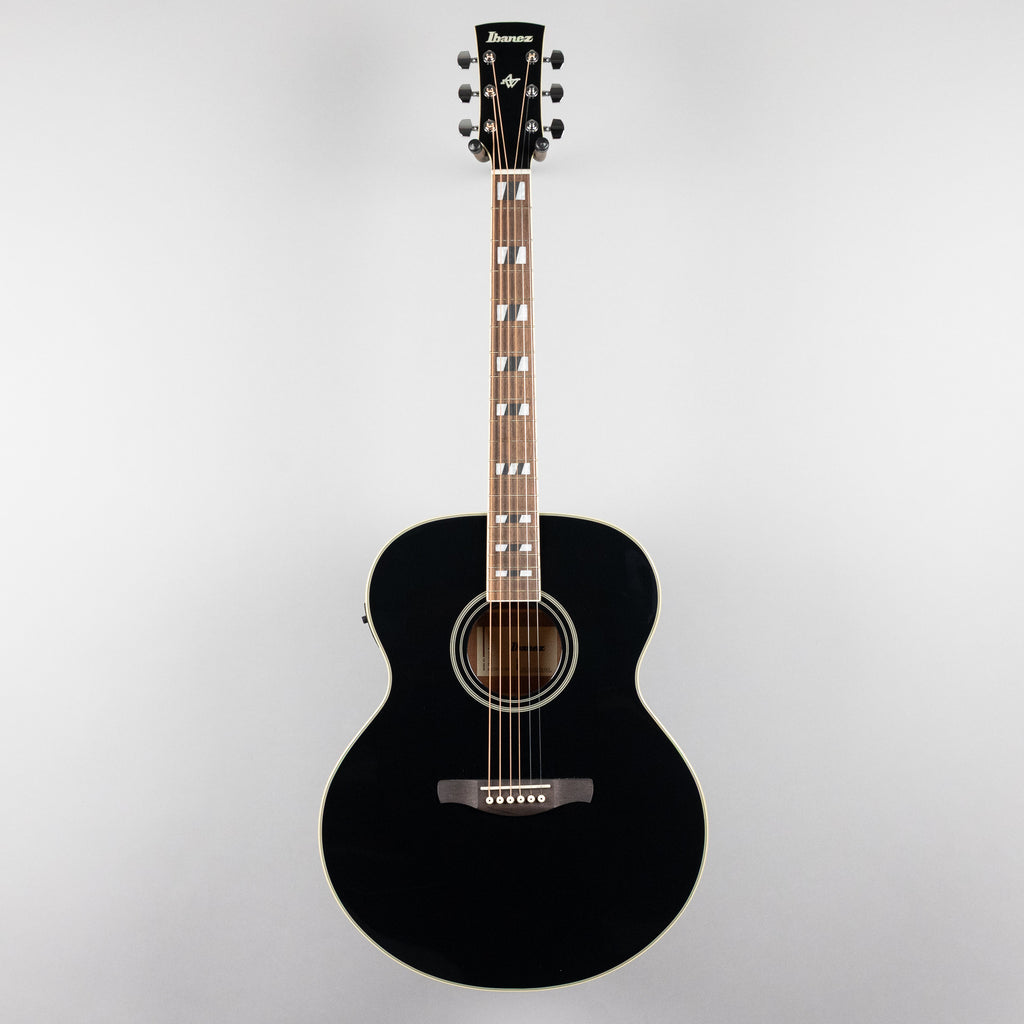

• Body Shape: Jumbo
• Top: Solid Sitka Spruce

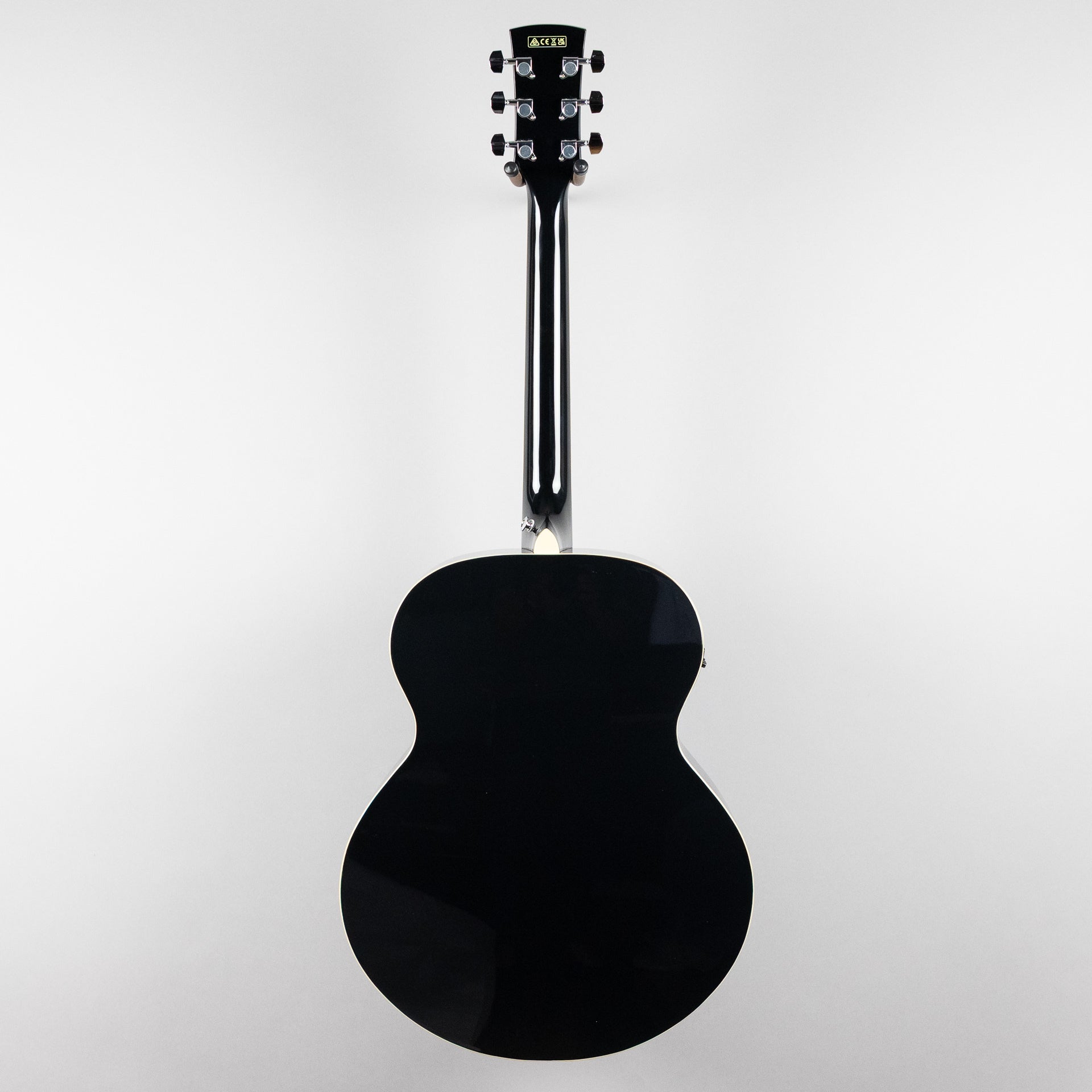

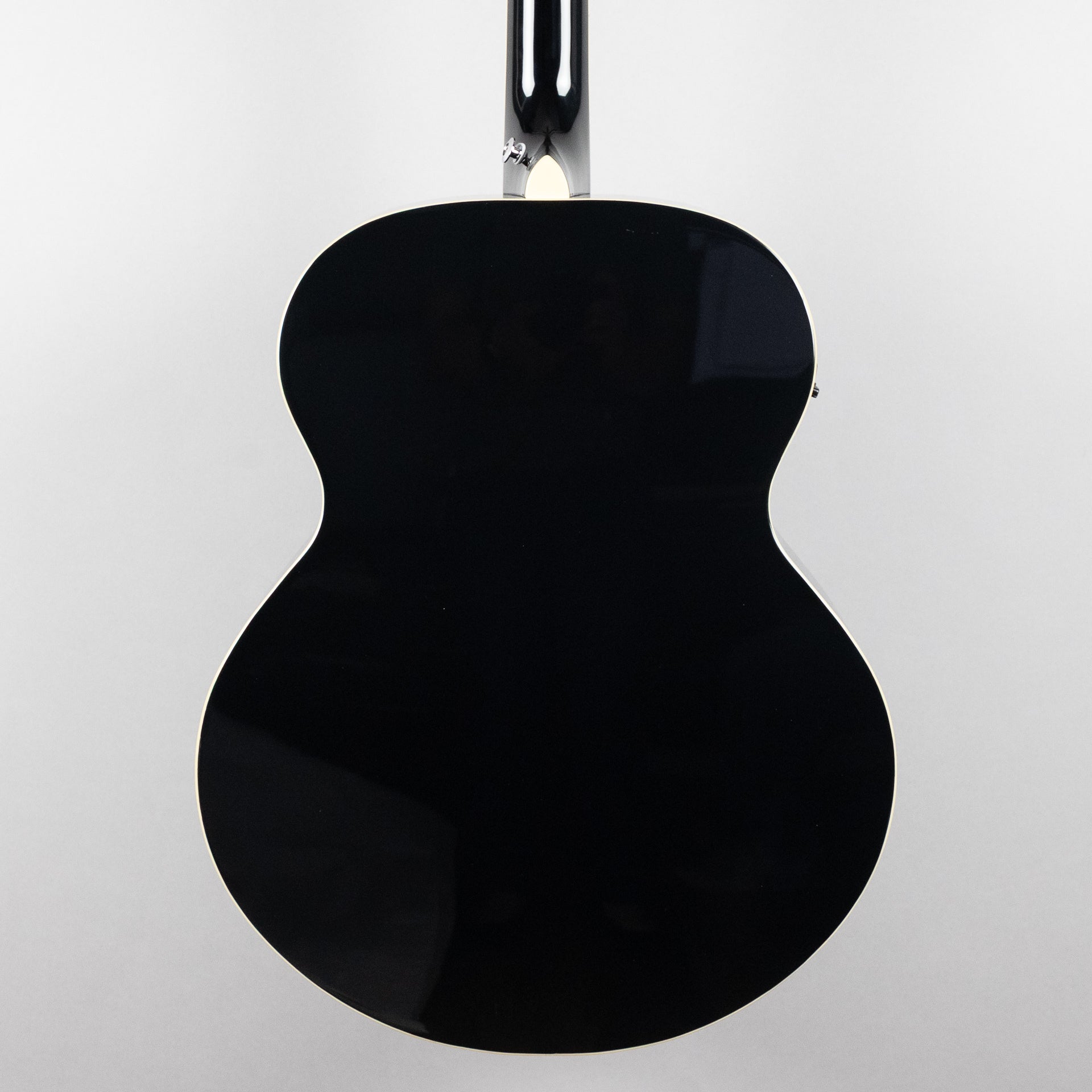

• Back & Sides: Okoume
• Neck: AJ / Nyatoh

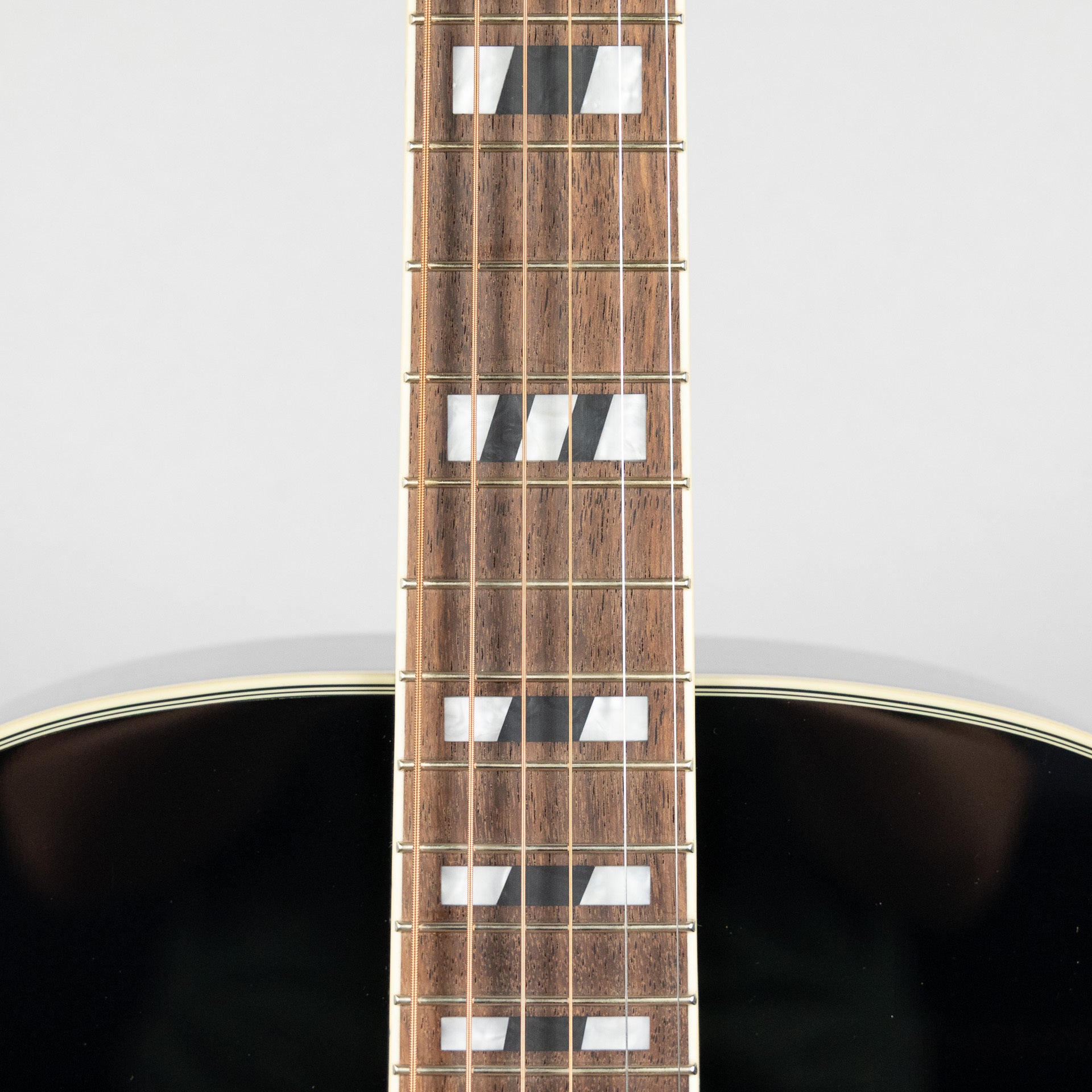

• Fretboard: Laurel
• Bridge: Laurel
• Inlay: Acrylic Block

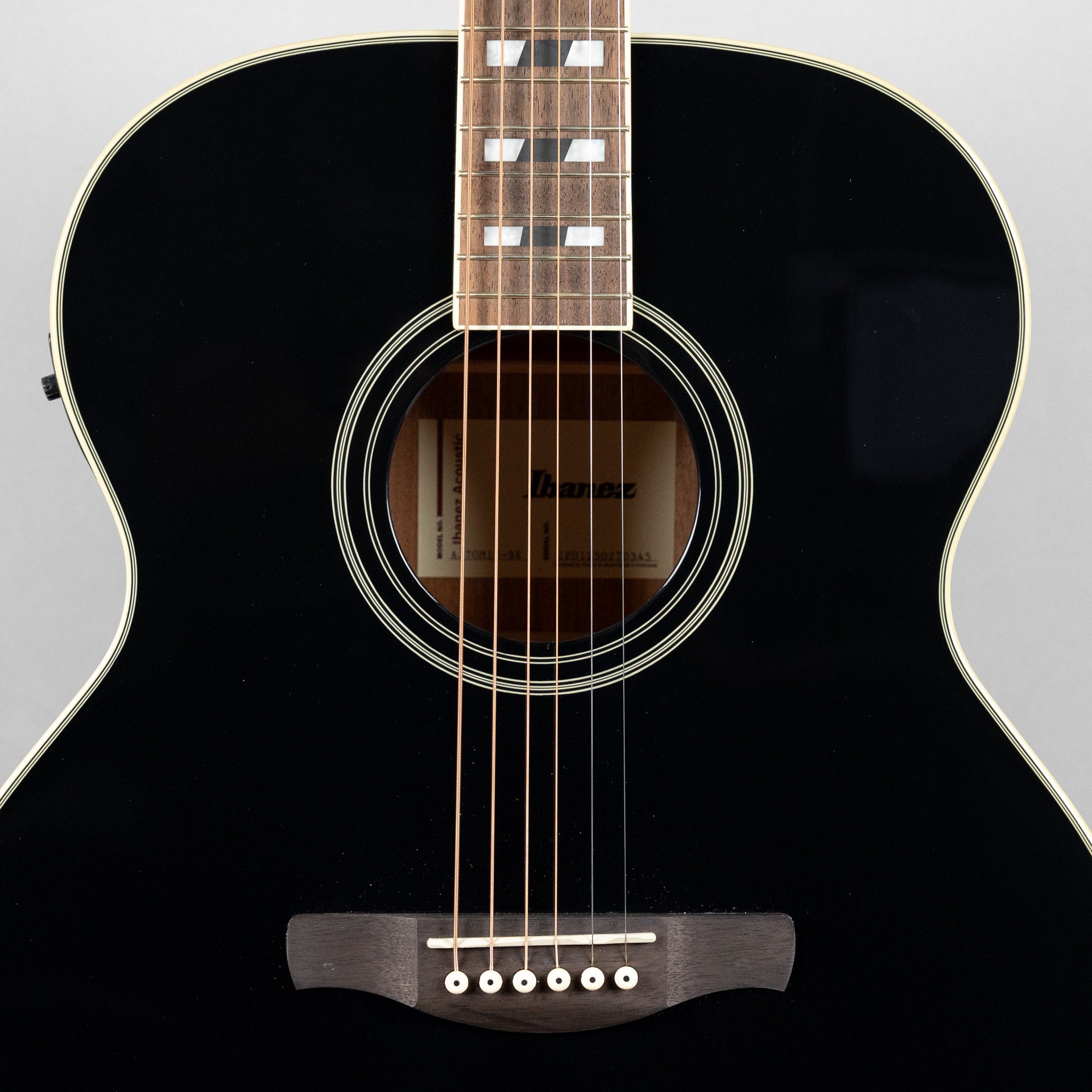

• Soundhole Rosette: Black & White Multi

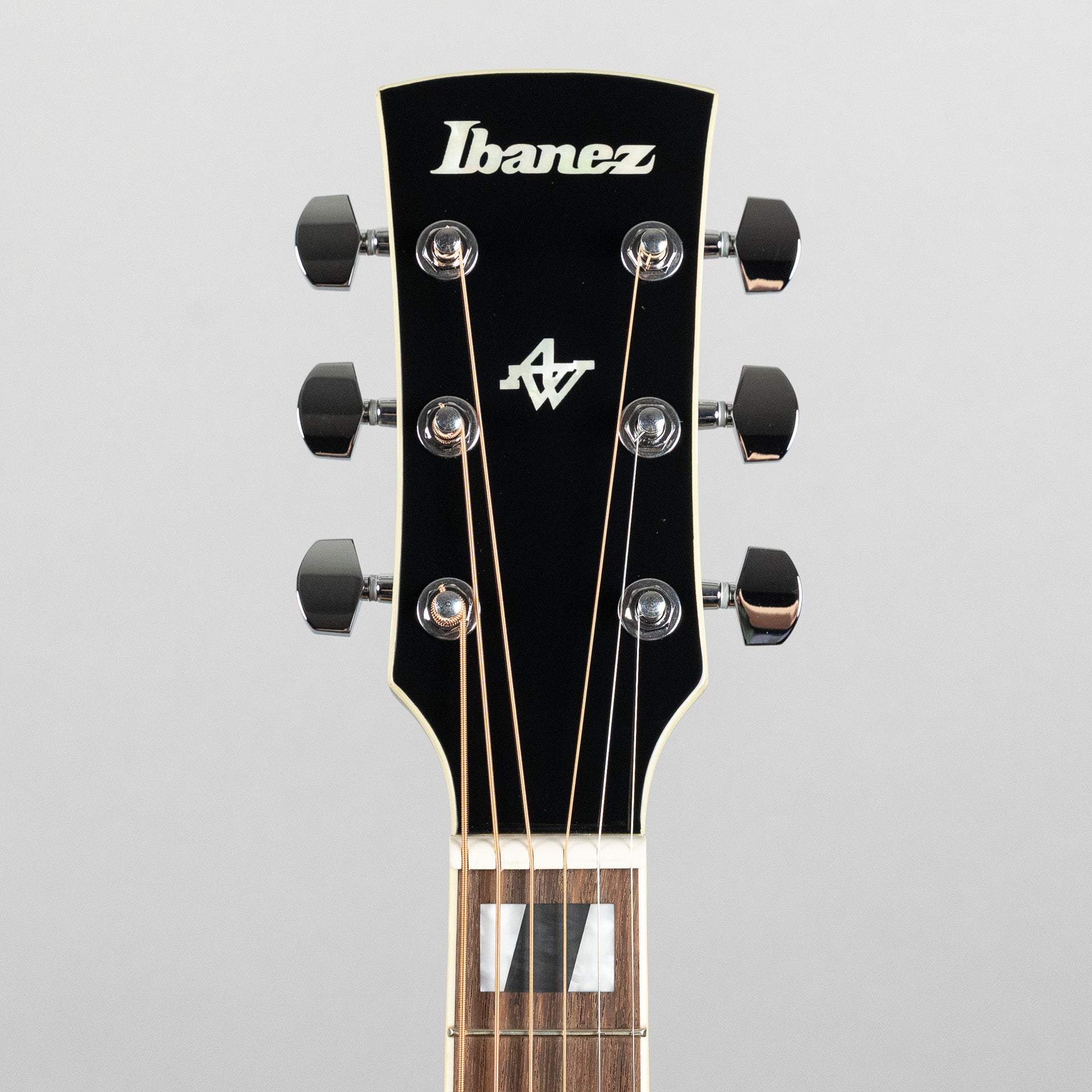

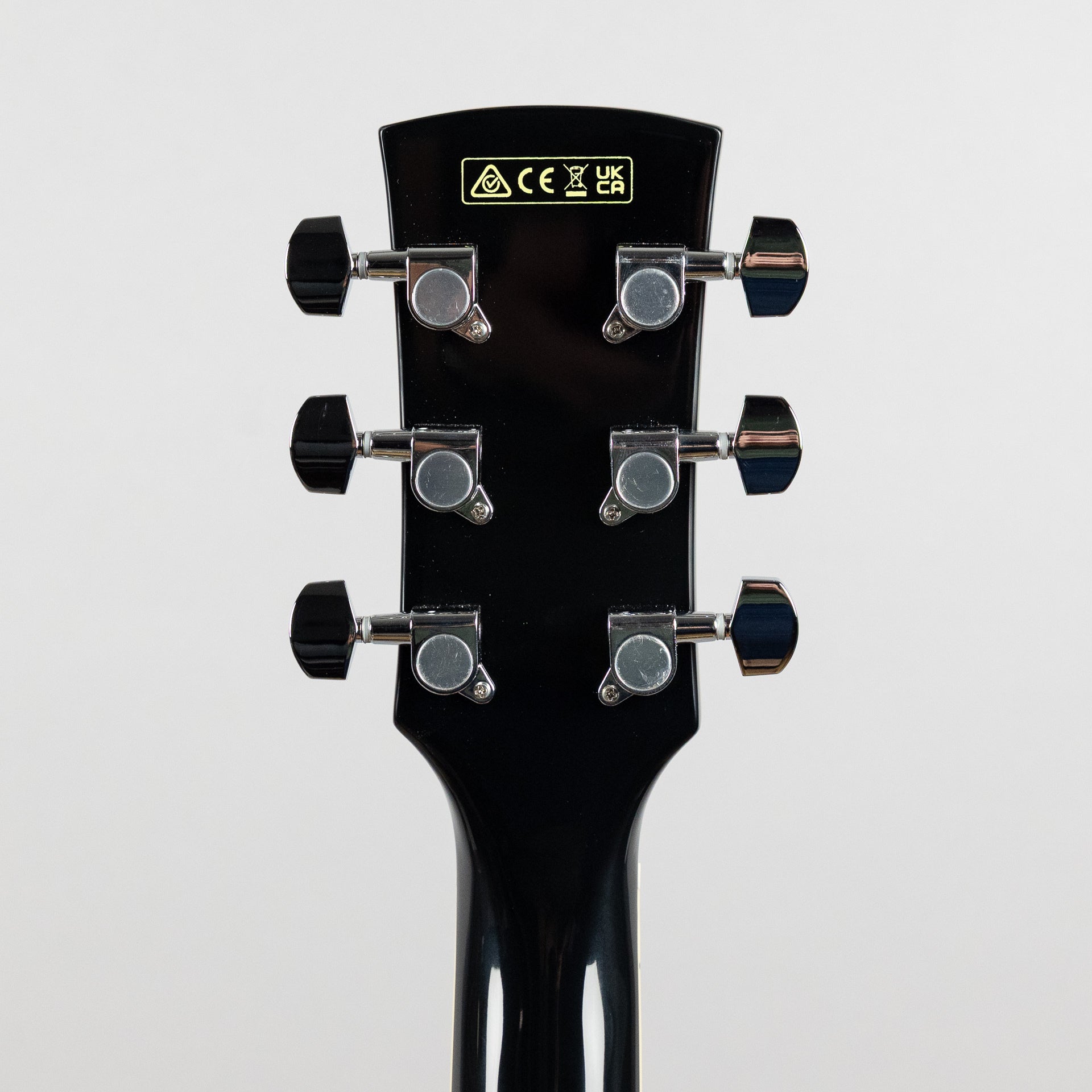

• Tuning Machines: Chrome Die-Cast Tuners (18:1 Gear Ratio)
• Number of Frets: 20
• Bridge Pins: Ibanez Advantage
• Strings: D'Addario XTAPB1253
• String Gauge: .012/.016/.024/.032/.042/.053
• String Spacing: 11mm
• Factory Tuning: 1E,2B,3G,4D,5A,6E
• Pickup: Ibanez T-Bar Undersaddle
• Preamp: Ibanez AEQ-TP2 Preamp w/Onboard Tuner
• Output Jack: Balanced XLR & 1/4" Outputs
• Battery: 9V x1

Body Demensions

• Length: 20 1/8"
• Width: 16 3/4"
• Max Depth: 4 3/4"

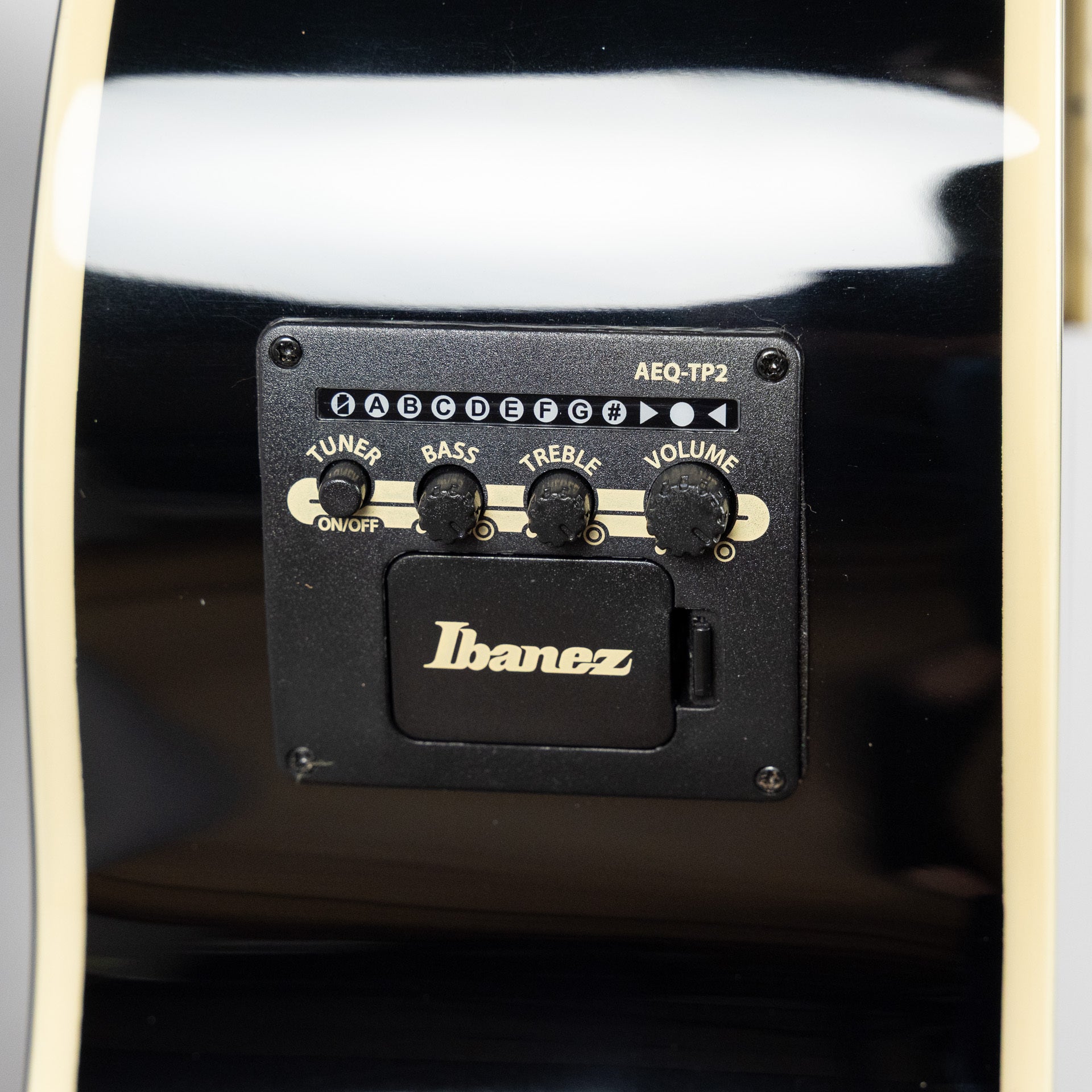

Preamp

The neck side of the preamp is the top of the control panel. There is one button switch and three knobs towards the top of the control panel. The button furthest left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
