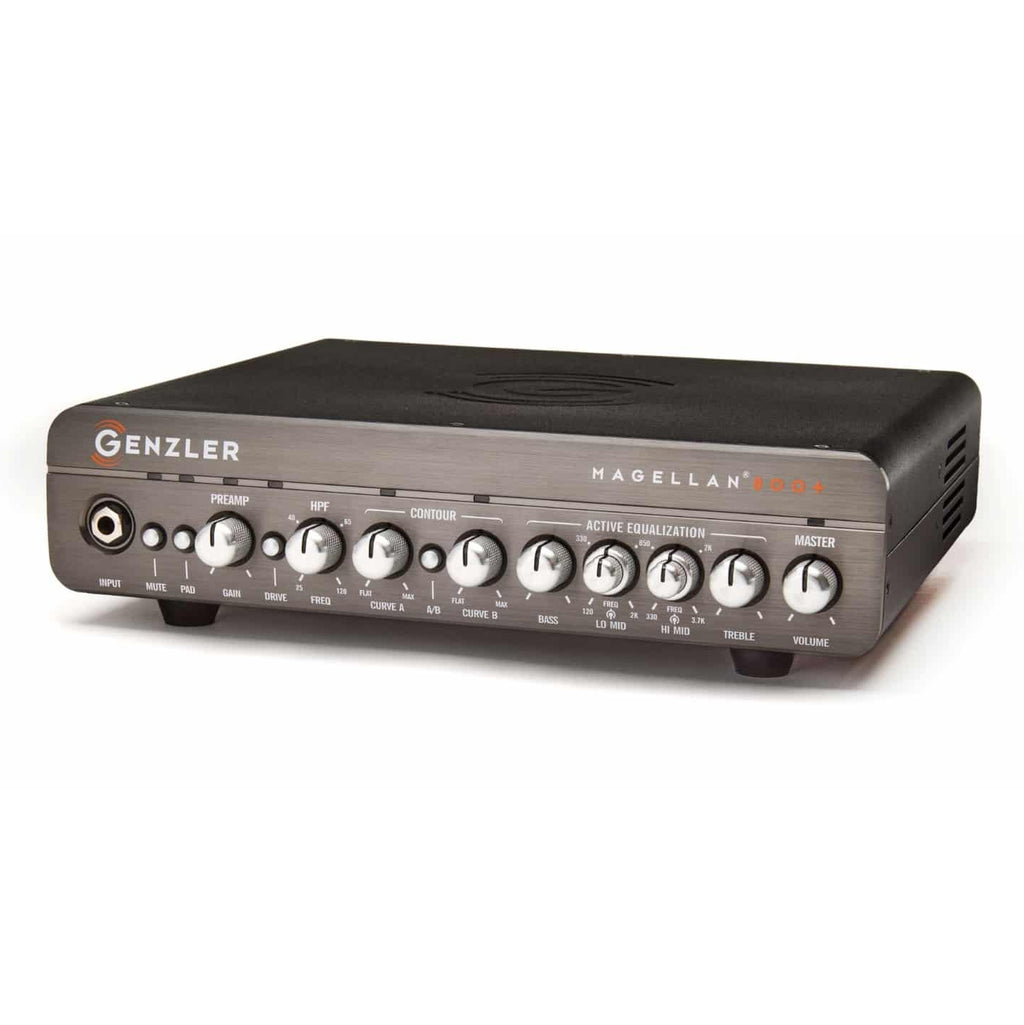

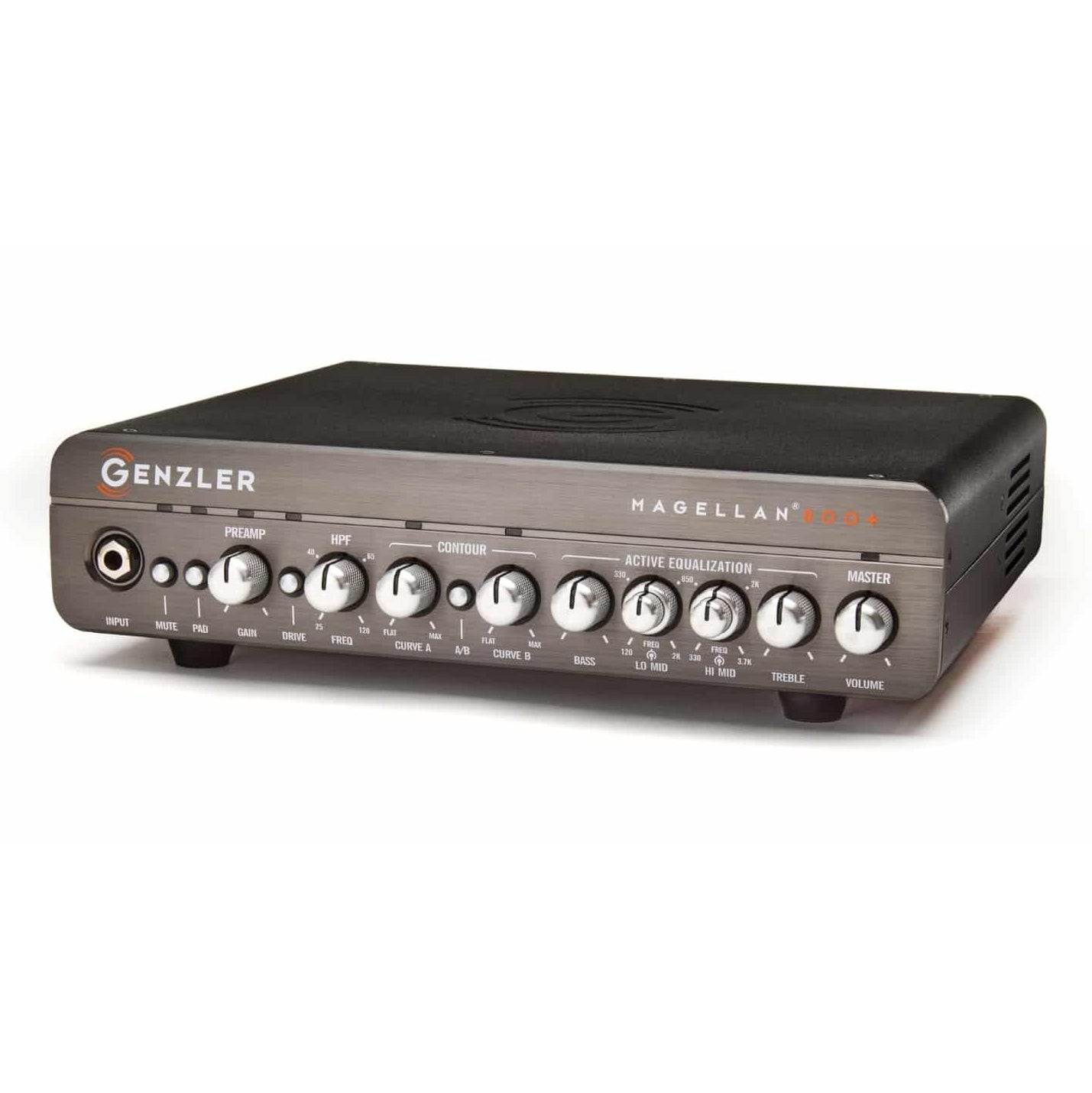

After 10 years in service, GENZLER® AMPLIFICATION is proud to introduce the next generation of this 800-watt professional, tour-class bass guitar amplifier --- the new MAGELLAN® 800+. Carrying forward the legacy of night-after-night reliability, the new MAGELLAN® 800+ reaches even higher achievements in performance with several new features, improved preamp circuitry, expanded EQ network, and all within the same rugged chassis.
The MG-800+® is a solid-state, all analog design and provides a simple, musical interface, and the tonal palette needed to cover all the bassist’s amplifier requirements; from natural, pristine, transparent reproduction of the bass instrument to classic, vintage harmonic textures with “weighted feel to the notes”. This is packaged within the classic Magellan® styling and all-aluminum chassis, weighing only 6.25 lbs.
The MAGELLAN® 800+ is equipped with an expanded list of features:
• Updated input circuitry for increased dynamics
• All new DRIVE circuitry delivering a wide range of tube-like harmonics and compression - foot switchable
• New HPF (High Pass Filter) --- multi-slope, frequency dependent and adjustable between 25-120Hz
• Our unique Dual Contour Circuit---now foot switchable and separately adjustable
• New 4 Band Active EQ with two sweepable midrange frequencies
• New high-grade op-amps for lower noise threshold and higher dynamic headroom, throughout the preamp
• Optional dual function footswitch ---- DRIVE & CONTOUR functions
• Light weight @ 6.25 Lbs

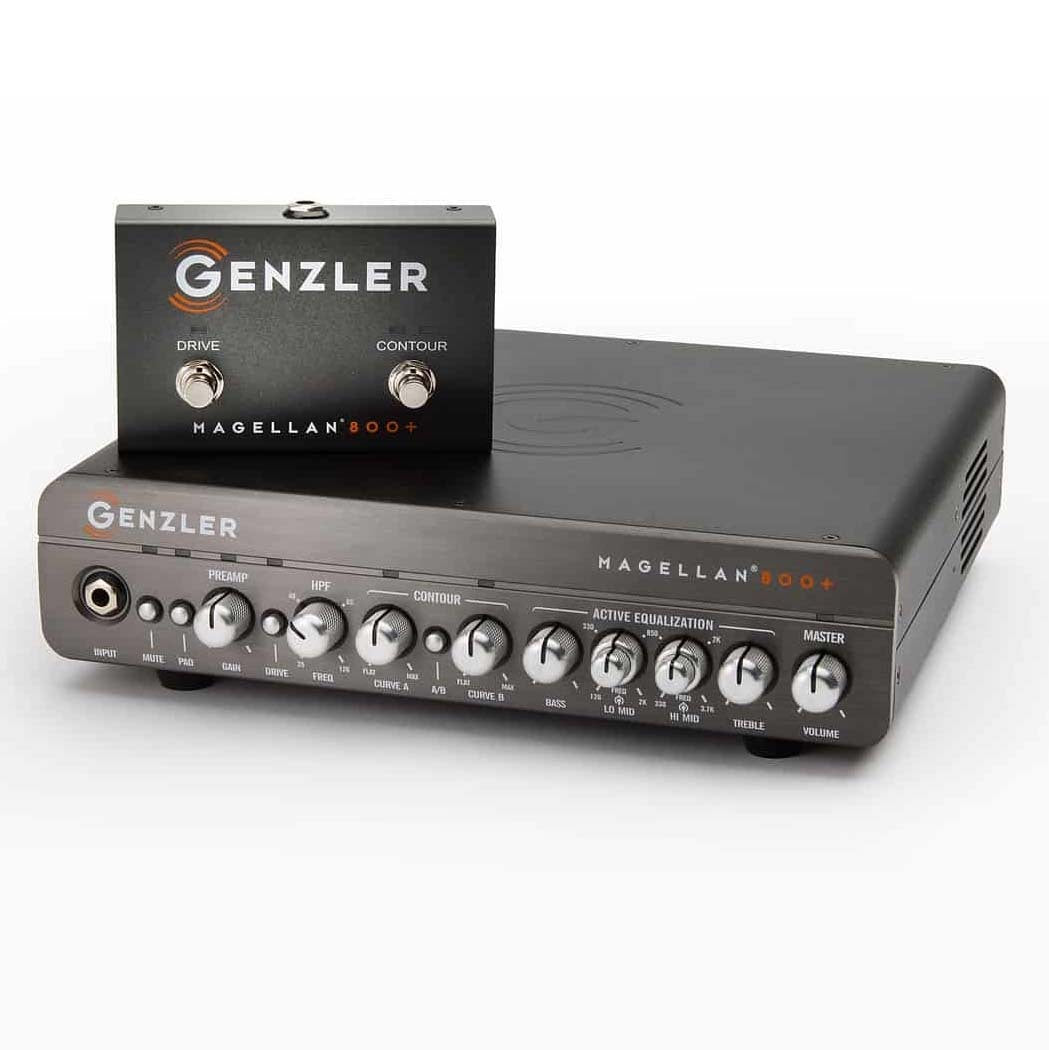

Also available is the optional MG-800+ FTSW dual function footswitch to control the drive and contour functions (sold separately).
Specifications

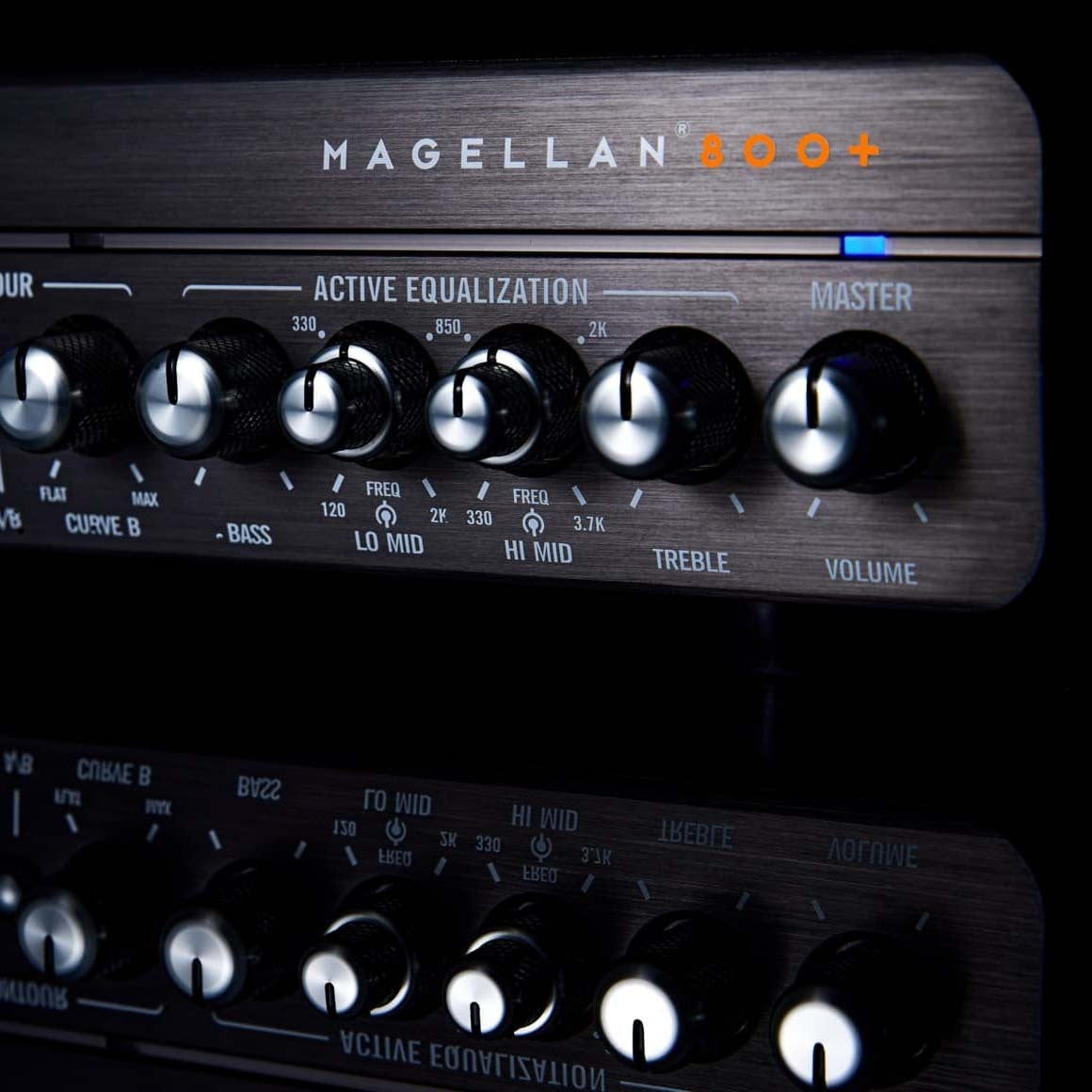

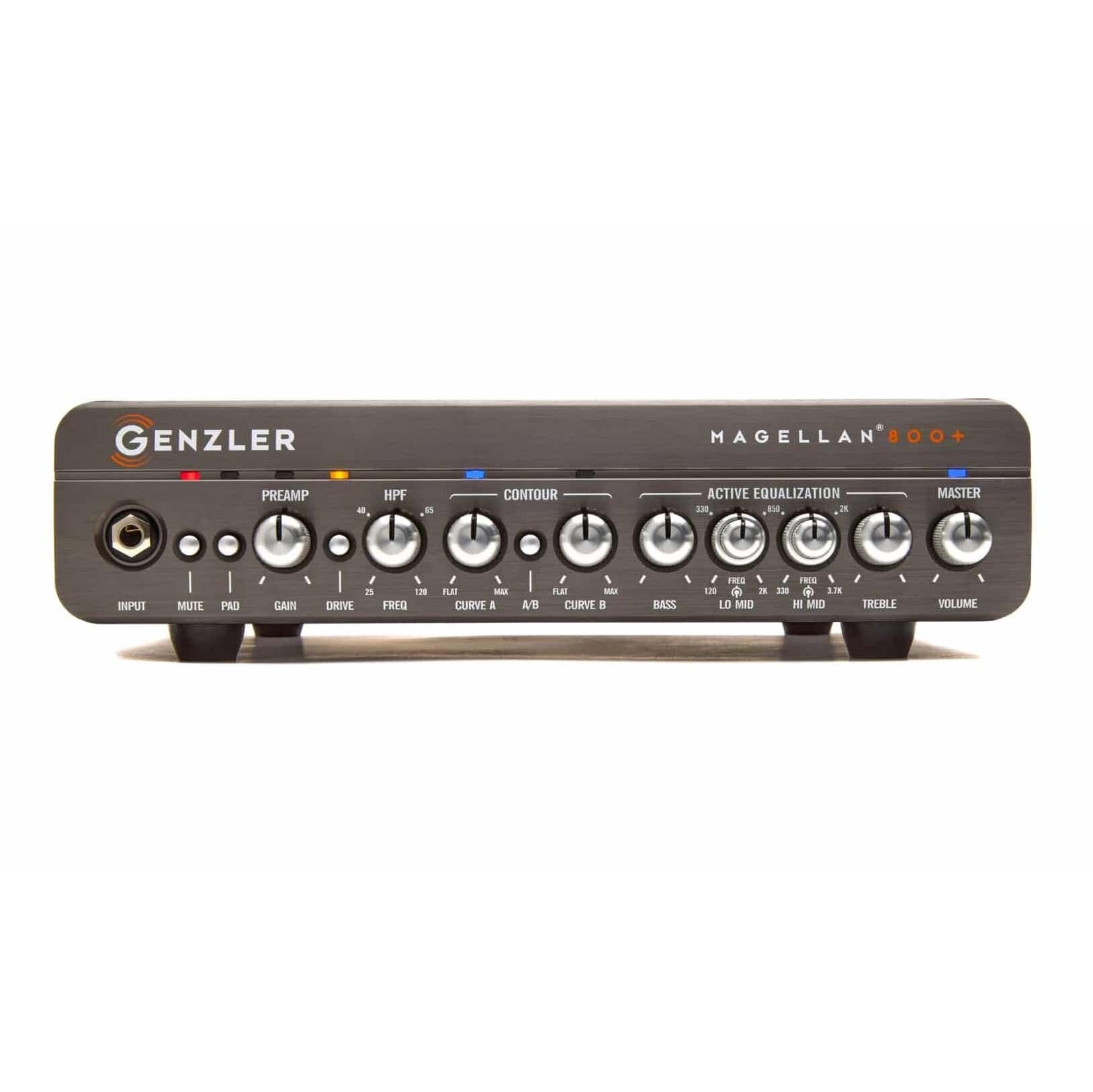

FRONT PANEL FEATURES:
- ¼” INPUT
- SIGNAL MUTE SWITCH
- INPUT PAD (- 8.5dB)
- GAIN LEVEL CONTROL
- DRIVE CHANNEL SWITCH — Voiced for a Driven Tonal Signature and Harmonic Texture, Controlled by Gain Level Control & Master Volume
- HPF—HIGH PASS FILTER — Variable from 25 – 120Hz
- DUAL-CURVE VARIABLE CONTOUR CIRCUITRY — Footswitchable
- Curve A — Classic to Modern — Smooth Mid Scoop Curve w/Increased Lows & Highs
- Curve B — Thicker to Vintage — Low-Mid Bump w/Tapered Top End
- Flat Position — Full Bypass
- ACTIVE 4 BAND EQ w/2 PARAMETRIC MID CONTROLS
- Bass: +/- 15dB @ 75Hz
- Lo Mid: +/- 15dB variable from 120Hz – 2K Hz
- High Mid: +/- 15dB variable from 330Hz – 3.7K Hz
- Treble: +/- 15dB @ 6K Hz
- MASTER VOLUME CONTROL

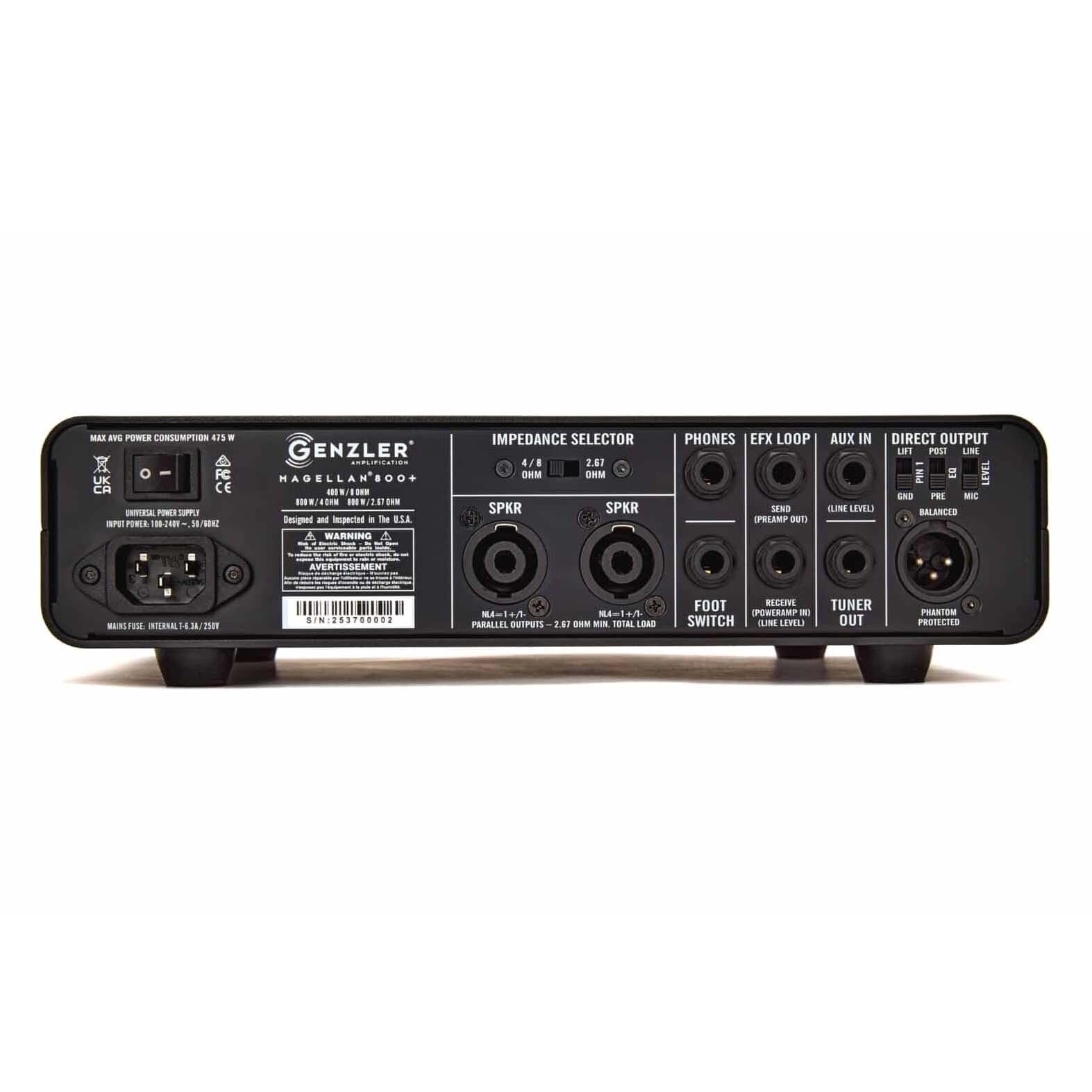

REAR PANEL FEATURES —-
- IMPEDANCE SELECTOR SWITCH — 8/4 ohm to 2.67 ohms
- DUAL SPEAKON® SPEAKER OUTPUTS
- HEADPHONE OUTPUT
- FOOTSWITCH INPUT JACK — For optional 2 button footswitch
- EFFECTS LOOP
- TUNER OUTPUT JACK
- DIRECT OUTPUT INTERFACE — PRE/POST
- THERMAL SENSING VIARIABLE SPEED FAN COOLING
- AIRCRAFT-GRADE, ALL ALUMINUM CHASSIS w/EXTRUDED ALUMINUM FRONT PANEL
- POWER AMPLIFIER — State of the art, Class D power amplifier and high frequency auto-sensing universal switch-mode power supply. Auto senses line voltage from 100 – 240 Vots
SPECIFICATIONS:
- POWER OUTPUT: 400W/8 Ohms, 800W/4 Ohms and 800W/2.67 Ohms
- MINIMUM SPEAKER LOAD: 67 Ohms
- OPERATING POWER CONDITION: 100 – 240V, 50/60 Hz
- DIMENSIONS: 3”H X 11.25”W X 10.5”D (76.2mm H x 285.75mm W x 266.7mm D)
- WEIGHT: 6.25 LBS (2.83Kg)
SHIPPING DATA:
- DIMENSIONS: 5”L x 13”D x 5.75”H (419.1mm x 330.2mm x 146.02mm)
- WEIGHT: 9 LBS (4.08 Kg)
