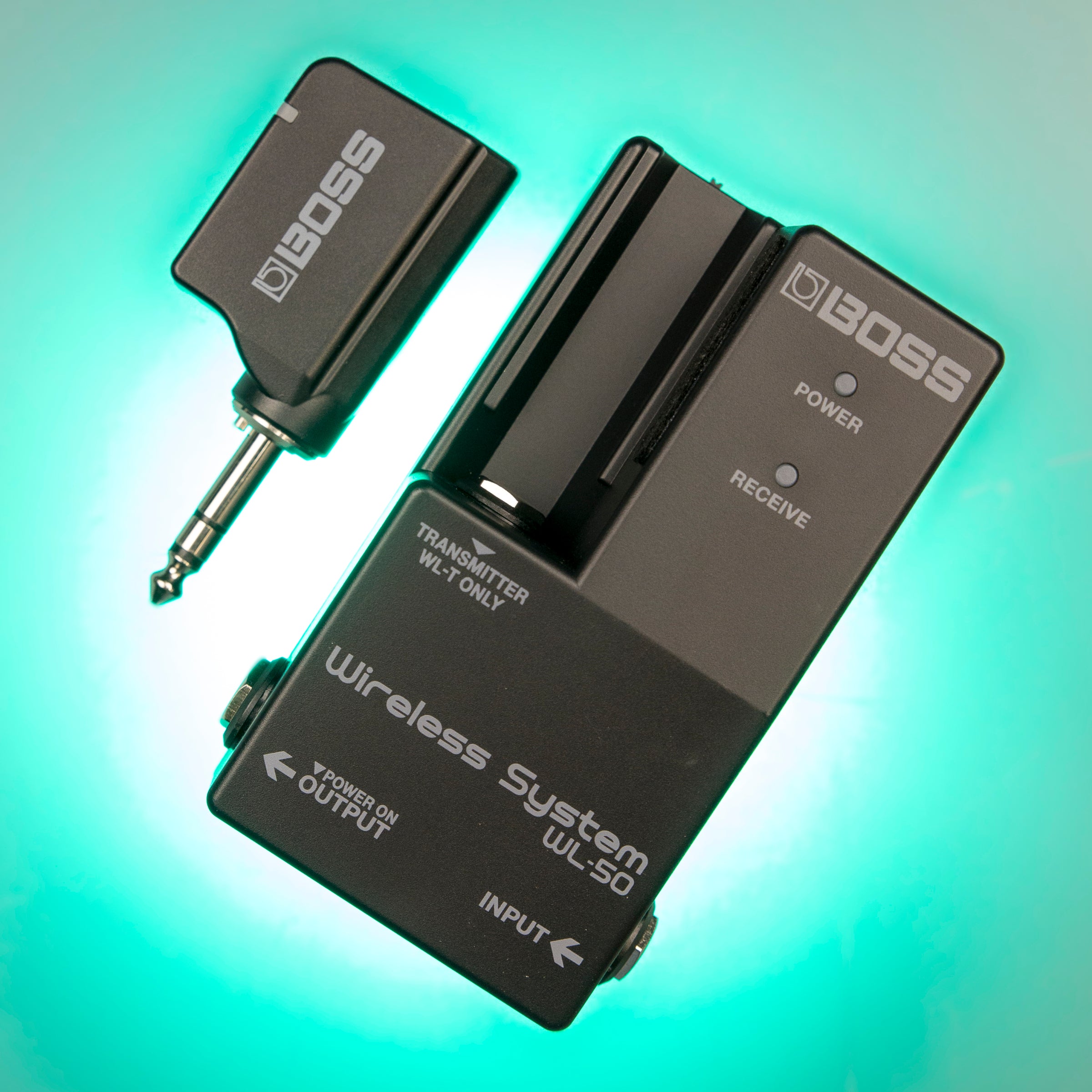

Boss WL-50 Wireless Pedalboard System

Boss WL-50 Wireless Pedalboard System

Regular price $262.99 USD
Regular price Sale price $262.99 USD
Sale Sold out

Inventory varies by location. Please give us a call to check stock in your preferred location!

Winter Haven: (863) 294-4216
Lakeland: (863) 686-3179

View full details


With the WL-50, it's never been easier to bring wireless freedom to your pedalboard. Driven by new BOSS technology, the WL-50 delivers premium sound and a plug-and-play experience that eliminates all the hassles normally associated with wireless systems. The stompbox-sized receiver fits right alongside your other pedals, and includes a docking port for charging the transmitter and automatically setting the best wireless connection. There's even a handy DC output, allowing you to distribute power to multiple pedals on your board.
Once you experience the wireless independence provided by the WL-50, you'll never go back to using a standard cable again! Setup is quick and simple, and you're able to move about freely while playing at home, jamming with friends, and performing on stage. During sound check at a gig, you can listen to your tone out front and dial in the best sound for your audience. And with the ability to roam and interact with other musicians, your live shows will be more dynamic and entertaining than ever.


  • Plug-and-play wireless system in a stompbox-size format for pedalboards
  • Optimum wireless connection set automatically, with no complicated setup required
  • Newly developed BOSS technology delivers premium audio performance with rock-solid stability, ultra-low latency (2.3ms), and 65-foot/20-meter range (line-of-sight propagation)*
  • Built-in rechargeable battery in transmitter provides up to 12 hours of continuous playing time
  • Plug the transmitter into the receiver's docking port for charging and automatic wireless setup**
  • Selectable cable tone simulation options: PSA-S adaptor or two AA batteries
  • With PSA-S adaptor power, the receiver's DC output can distribute power to one or more pedals using an optional PCS-20A daisy-chain cable
  • Spare WL-T Transmitter available separately

*The transmission range may vary due to local conditions
**To charge the transmitter, the receiver must be powered via a BOSS PSA-S adaptor. It's also possible to directly charge the transmitter with a standard USB adaptor (5 V/500 mA or higher).

Equipped with high-performance BOSS wireless technology that debuted in the Katana-Air wireless guitar amp, the WL-50 delivers exceptional sound quality with wide dynamic range. Working in the 2.4 GHz frequency band, the system automatically accesses the optimum channel to ensure rock-solid audio performance with absolutely no drop-outs. And with ultra-low latency of just 2.3 ms, you'll always enjoy great playing feel with no lag whatsoever. Up to 14 BOSS wireless systems can be used simultaneously in one space, allowing multiple musicians to enjoy wireless freedom at the same time.*
*Environmental conditions may affect the actual number of simultaneous systems available.

The WL-50 has a slightly smaller footprint that a standard BOSS compact pedal and can be powered just like your other stomps, making it an easy addition to any pedalboard setup. Simply place it at the beginning of your chain and connect the receiver's output to the first pedal. The receiver is also equipped with a regular 1/4" input jack, so you can always use a traditional guitar cable in a pinch.

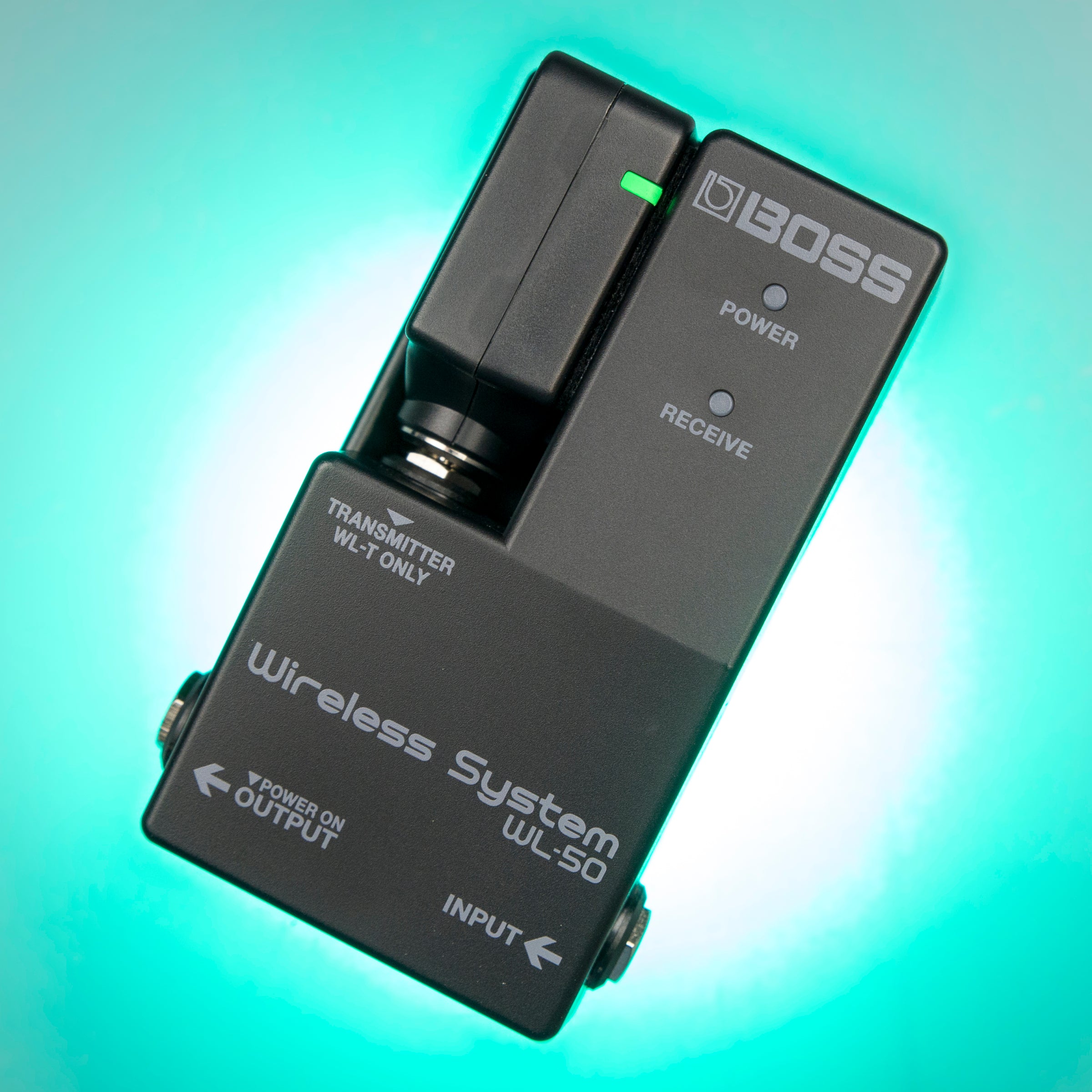

The WL-50 features a built-in dock that's used to charge the transmitter and establish the wireless connection. The system's streamlined profile is maintained even when the transmitter is docked, with a total height that's about the same as a normal BOSS stomp.

Once you've installed the WL-50 on your board and charged the transmitter, it's literally as simple to use as a standard guitar cable. Just dock the transmitter in the receiver, wait about 10 seconds, and then plug the transmitter into your instrument. That's it! The optimum wireless connection is set automatically during docking, with no other user operation required.

The WL-50 includes two selectable cable tone simulations options that reproduce the natural capacitive effect that's introduced when using a guitar cable with standard passive pickups. You can also bypass the effect when cable tone simulation is not desirable, such as when using an onboard preamp or an instrument with active pickups.

When the receiver is powered via a BOSS PSA-S adaptor (sold separately), it becomes a power distribution center for other stomps on your board. By using an optional PCS-20A daisy-chain cable, you're able to power a number of BOSS compact pedals at the same time.

At street gigs and other mobile performance situations, running your pedals on battery power is often the best choice. The WL-50 receiver can run for up to 10 hours on two AA batteries, allowing you to take your wireless setup with you! While running on battery power, the receiver is unable to charge the transmitter. But don't worry - you can still charge it using a common USB adaptor (5 V/500 mA or higher), the same type used with most smartphones and tablets.

  • Wireless Format: BOSS proprietary digital audio format
  • Wireless Carrier Frequency: 2.4GHz
  • Compatible Channels: 14 (May vary due to local conditions)
  • Transmission Range: 65 feet line-of-sight (May vary due to local conditions)
  • Latency: 2.3ms
  • Dynamic Range: 110dB or greater
  • Frequency Response: 20Hz - 20kHz
  • Nominal Input Level: -10dBu
  • Input Impedance: 1M ohm
  • Nominal Output Level: -10dBu
  • Output Impedance: 1k ohm
  • Recommended Load Impedance: 10k ohms or greater
  • Controls: CABLE TONE switch (OFF/SHORT/LONG)
  • Indicators: POWER, RECEIVE

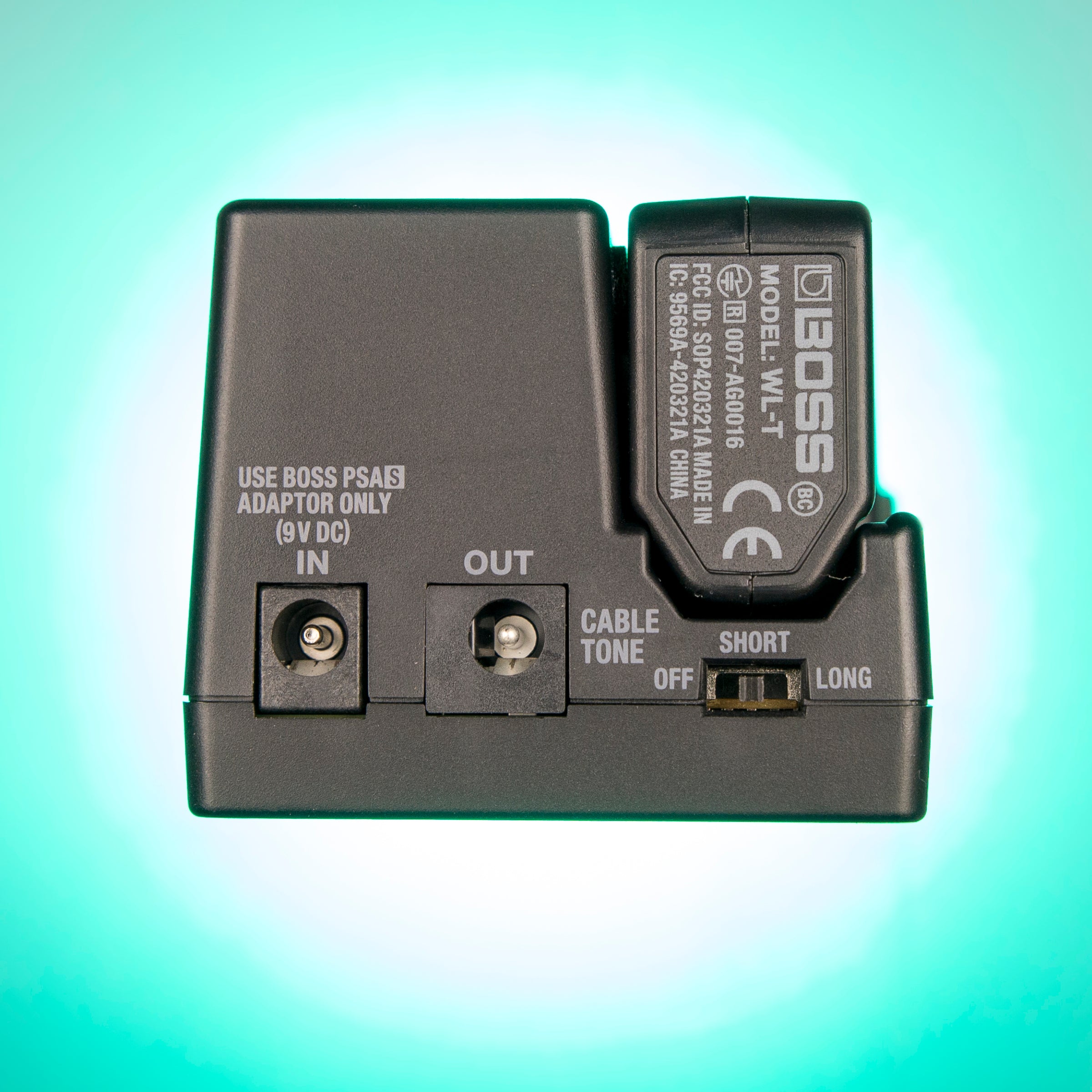

  • Connectors: INPUT jack: 1/4" phone type; OUTPUT jack: 1/4" phone type; TRANSMITTER jack: 1/4" TRS phone type; DC IN jack; DC OUT jack
  • Power Supply: Alkaline battery (AA, LR6) x2, AC adaptor (sold separately)
  • Current Draw: During wireless operation: 60mA; While charging transmitter: 320mA
  • Expected Battery Life Under Continuous Use: Alkaline battery (AA, LR6): Approximately 10 hours (these figures will vary depending on the actual conditions of use)
  • Accessories: Owners Manual, Leaflet USING THE UNIT SAFELY, Transmitter, Rubber foot x4, Alkaline battery (AA, LR6) x2. An AC adaptor (PSA-S series) is required to charge the transmitter (WL-T).
  • Options (sold separately): AC Adaptor PSA-S series, Parallel DC cord PCS-20A (DC Plug x8)

  • Width: 72mm, 2-7/8"
  • Depth: 121mm, 4-13/16"
  • Height: 56mm, 2-1/4"
  • Weight (Including Battery): 220g, 8oz

  • Nominal Input Level: -10dBu (1M ohm)
  • Indicator: BATTERY
  • Connectors: Input plug 1/4" TRS phone type, DC IN 5V port (USB Micro-B type)
  • Power Supply: Rechargeable lithium-ion battery, supplied from the DC IN 5V port
  • Current Draw: 350mA
  • Battery Charging Time: Approximately 3 hours
  • Expected Battery Life Under Continuous Use: Approximately 12 hours (these figures will vary depending on the actual conditions of use)

  • Width: 87mm, 3-7/16"
  • Depth: 22mm, 7/8"
  • Height: 36mm, 1-7/16"
  • Weight: 43g, 2oz
