CLASSIC TREMOLO SOUNDS!

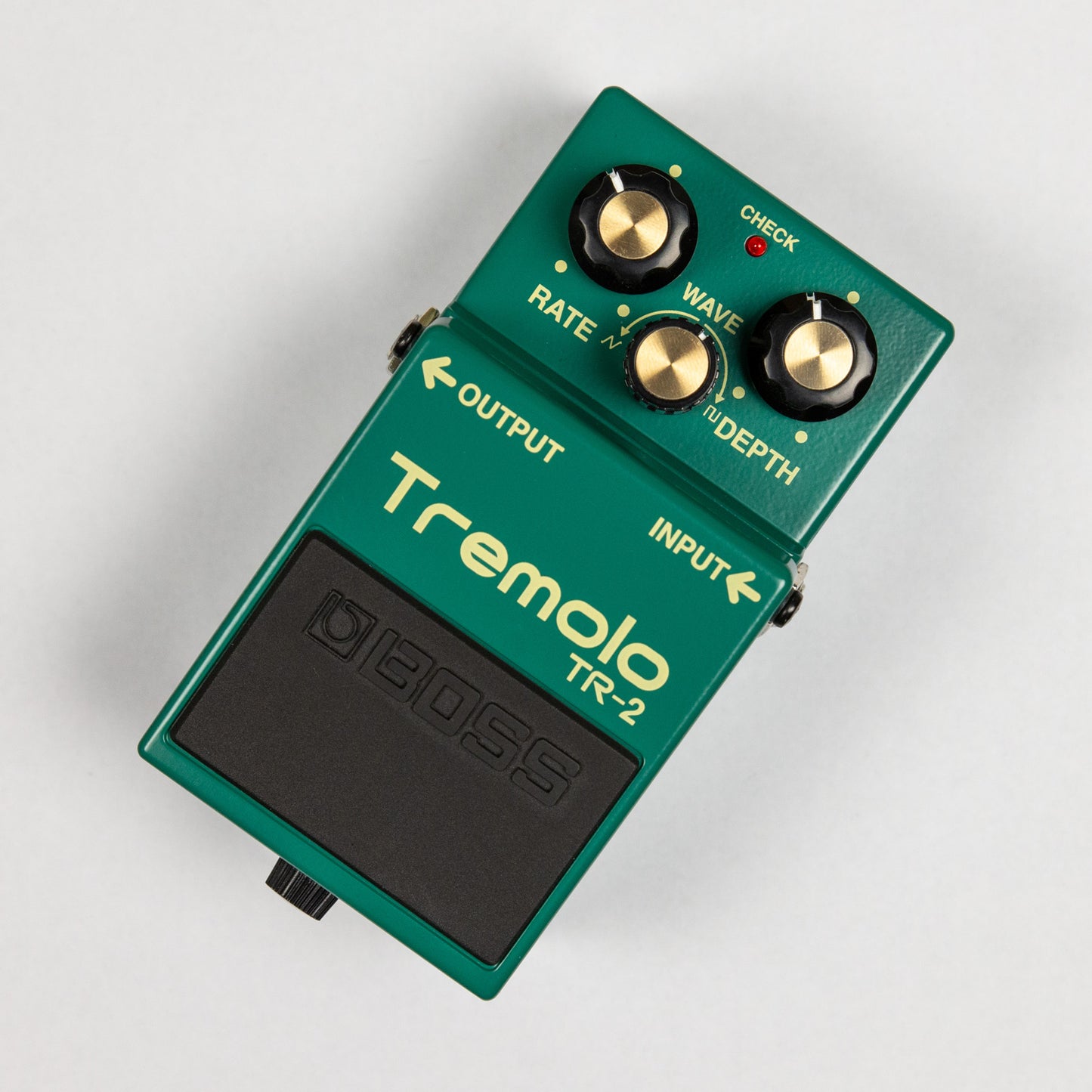

The BOSS TR-2 Tremolo is designed to provide guitarists with classic tremolo effects in an easy-to-use compact pedal. Dedicated "Wave," "Rate," and "Depth" knobs provide a multitude of effect possibilities.

• Provides guitarists with high-quality vintage tremolo effects in an easy-to-use compact pedal

• Dedicated "Wave," "Rate" and "Depth" knobs allow for precise effect tailoring

• "Rate" control allows for higher speed adjustment than classic PN-2

• "Wave" control alters LFO waveform from triangle to square

• "Depth" control determines the strength of the effect

• BOSS five-year warranty


• Nominal Input Level: -20 dBu

• Input Impedance: 1 M ohm

• Nominal Output Level: -20 dBu

• Output Impedance: 1 k ohm

• Recommended Load Impedance: 10 k ohms or greater

• Bypass: Buffered bypass

• Controls:

  • DEPTH knob

  • RATE knob

  • WAVE knob

  • Pedal switch

• Indicator: CHECK indicator (Used for indication of check battery)

• Connectors:

  • INPUT jack: 1/4-inch phone type

  • OUTPUT jack: 1/4-inch phone type

  • DC IN jack

• Power Supply:

  • Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)

  • AC adaptor (PSA series: sold separately)

• Current Draw: 20 mA

• Accessories:

  • Owner's manual

  • Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

  • Carbon-zinc battery (9 V, 6F22)

• Options (sold separately): AC adaptor: PSA series


• Width: 73 mm(2-7/8 inches)

• Depth: 129 mm(5-1/8 inches)

• Height: 59 mm(2-3/8 inches)

• Weight (including battery): 400 g(15 oz)
