SIMPLIFIES YOUR SETUP

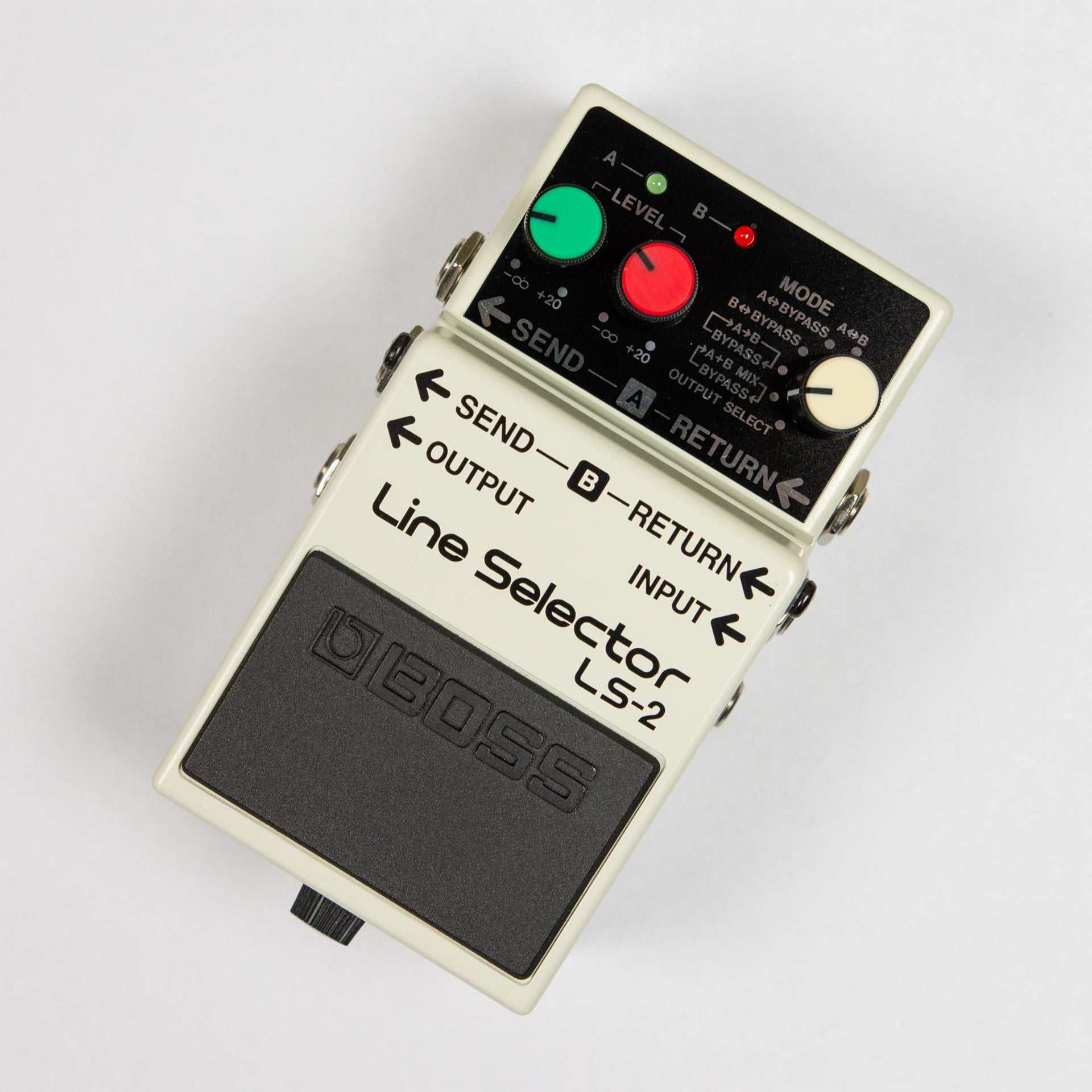

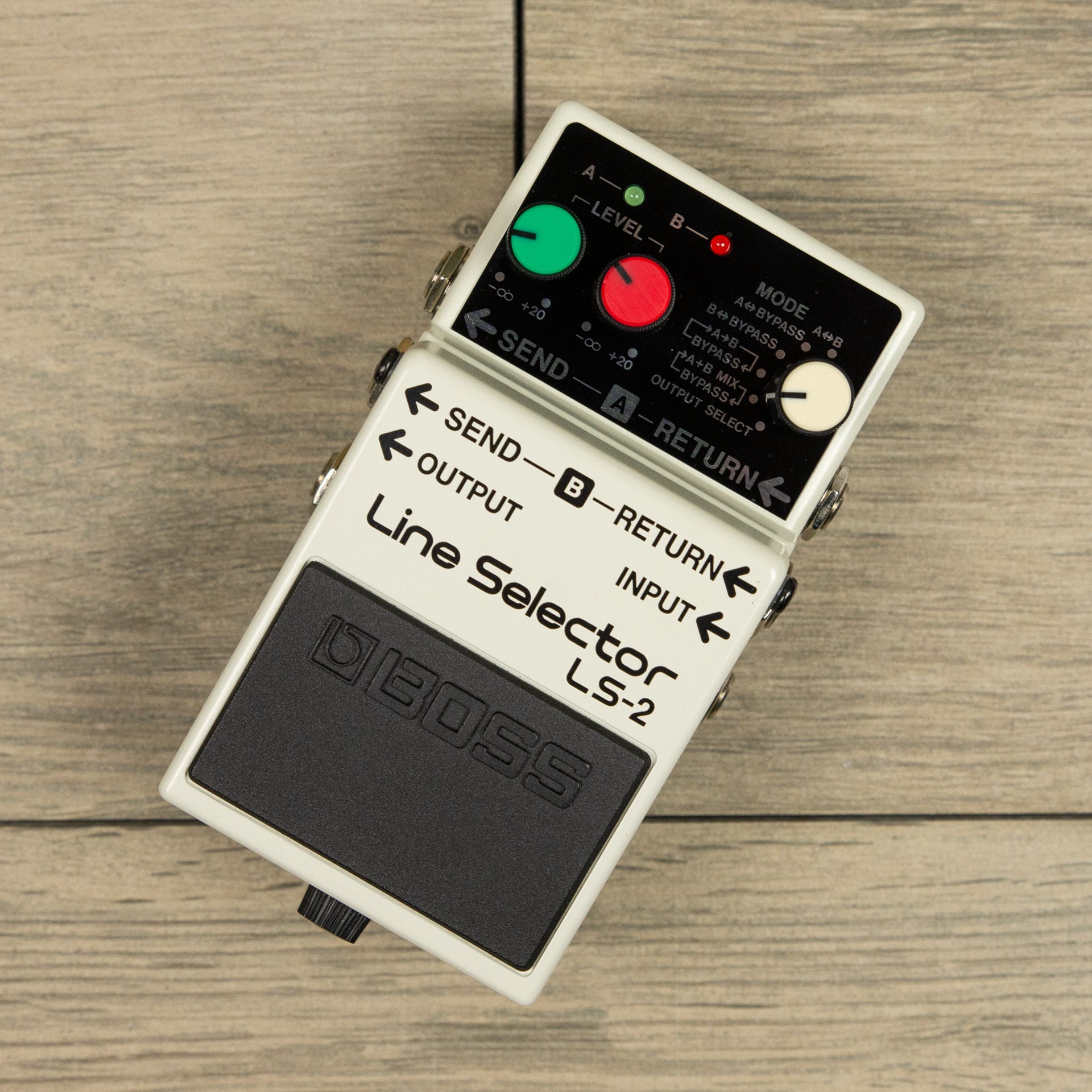

The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.

• Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices

• Provides two line loops with Level control and six looping modes

• Can supply power to several BOSS compact pedals when used with an AC adaptor

• The ideal power supply and master switching unit for multiple effects setups

• BOSS 5-year warranty


• Nominal Input Level: -20 dBu

• Input Impedance: 1 M ohm

• Nominal Output Level: -20 dBu

• Output Impedance: 1 k ohms

• Recommended Load Impedance: 10 k ohms or greater

• Bypass: Buffered bypass

• Controls:

  • MODE selector switch

  • LEVEL knobs A/B

  • Pedal switch

• Indicator: Line indicator A/B (Used for indication of check battery)

• Connectors:

  • INPUT jack: 1/4-inch phone type

  • SEND jacks A/B: 1/4-inch phone type

  • RETURN jacks A/B: 1/4-inch phone type

  • OUTPUT jack: 1/4-inch phone type

  • DC IN/OUT jack

• Power Supply:

  • Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)

  • AC adaptor (PSA series: sold separately)

• Current Draw: 25 mA

• Expected battery life under continuous use:

  • Carbon: Approx. 14 hours

  • Alkaline: Approx. 30.5 hours

  • * These figures will vary depending on the actual conditions of use.

• Accessories:

  • Owner's manual

  • Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

  • Carbon-zinc battery (9 V, 6F22)

• Options (sold separately): AC adaptor: PSA series


• Width: 73 mm(2-7/8 inches)

• Depth: 129 mm(5-1/8 inches)

• Height: 59 mm(2-3/8 inches)

• Weight including battery: 410 g(15 oz.)
