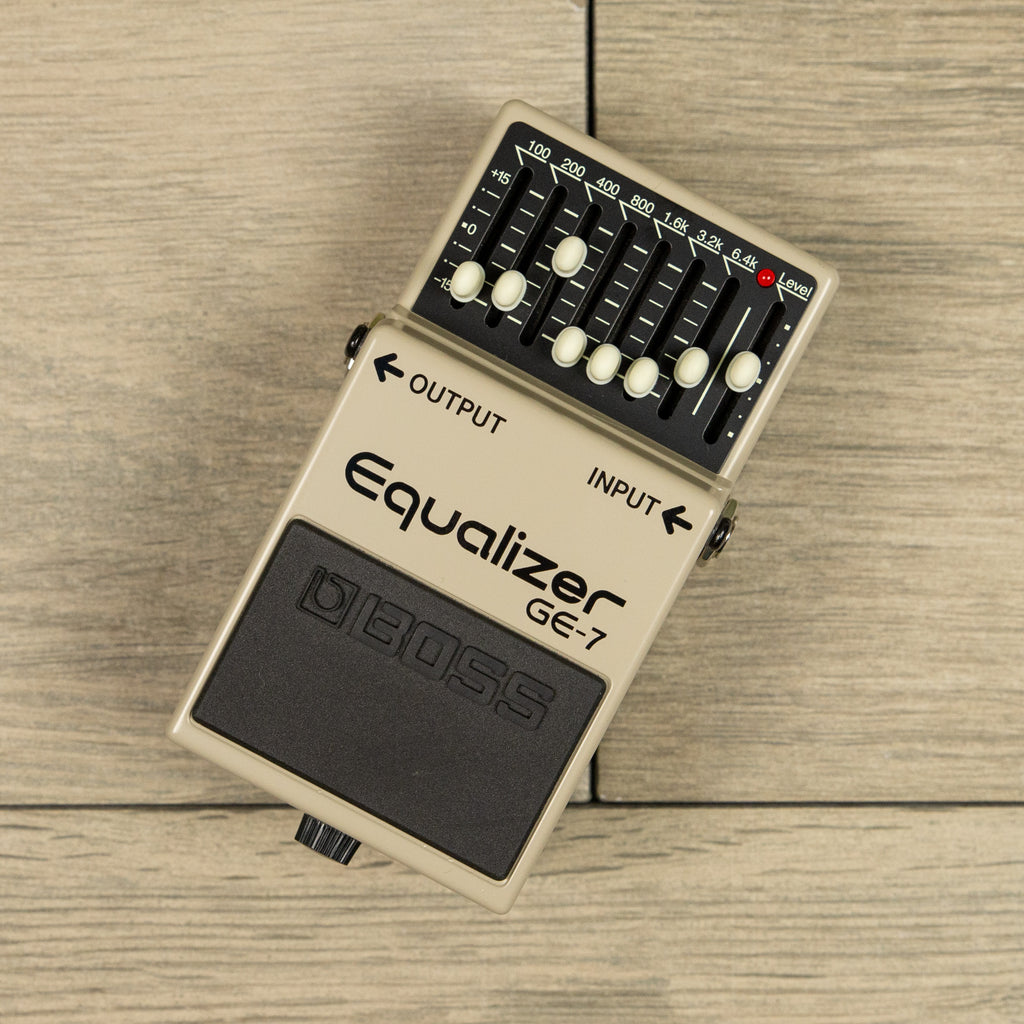

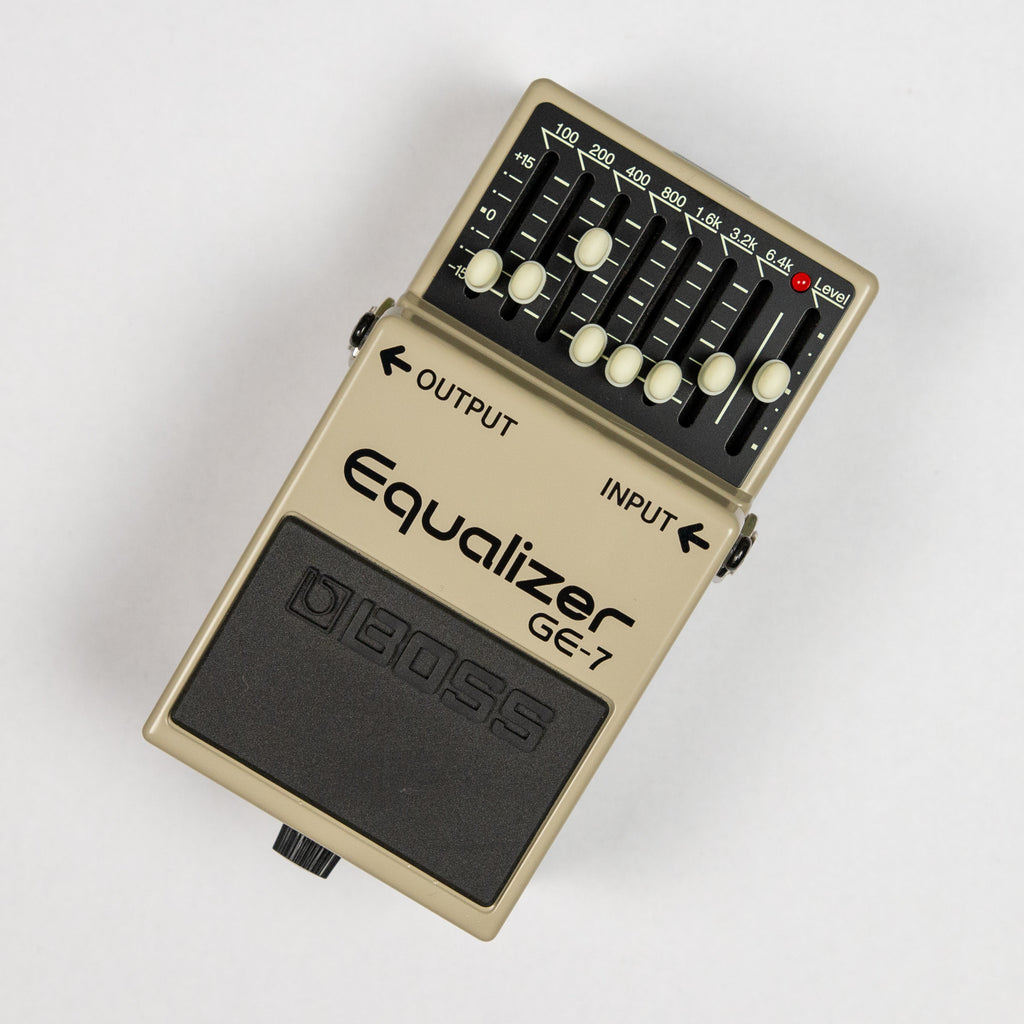

Boss GE-7 Graphic Equalizer

  • $123.99
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

POWERFUL 7-BAND EQ!
The GE-7 Equalizer pedal offers seven bands of EQ ranging from 100Hz to 6.4kHz, ideal for guitar sounds, with boost/cut of +/- 15dB per band. This lets you completely control your sound and eliminate unwanted feedback, particularly when connected after a distortion effect.

  • Compact EQ pedal with 7 bands of adjustable EQ sliders
  • Allows for boost/cut of up to +/- 15dB per band
  • Perfect as a "boost" pedal for solos, creating an alternate sound, or for eliminating feedback
  • BOSS five-year warranty

SPECIFICATIONS
  • Nominal Input Level: -20 dBu
  • Input Impedance: 470 k ohm
  • Nominal Output Level: -20 dBu
  • Output Impedance: 1 k ohm
  • Recommended Load Impedance: 10 k ohm or greater
  • Bypass: Buffered bypass
  • Controls:
    • Level Control knob
    • Equalizer Control knob
    • 100, 200, 400, 800, 1.6 k, 3.2 k, 6.4 kHz
    • Pedal switch
  • Indicator: CHECK indicator (Serves also as battery check indicator)
  • Connectors:
    • INPUT jack: 1/4-inch phone type
    • OUTPUT jack: 1/4-inch phone type
    • DC IN jack
  • Power Supply:
    • Carbon-zinc battery (9 V, 6F22)
    • Alkaline battery (9 V, 6LR61)
    • AC adaptor (PSA series: sold separately)
  • Current Draw: 10 mA
  • Expected battery life under continuous use:
    • Carbon: Approx. 37 hours
    • Alkaline: Approx. 67 hours
    • *These figures will vary depending on the actual conditions of use.
  • Accessories:
    • Owner's Manual
    • Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
    • Carbon-zinc battery (9 V, 6F22)
  • Options (sold separately): AC adaptor: PSA series

SIZE AND WEIGHT
  • Width: 73 mm(2-7/8 inches)
  • Depth: 129 mm(5-1/8 inches)
  • Height: 59 mm(2-3/8 inches)
  • Weight (including battery): 450 g(1 lb)
